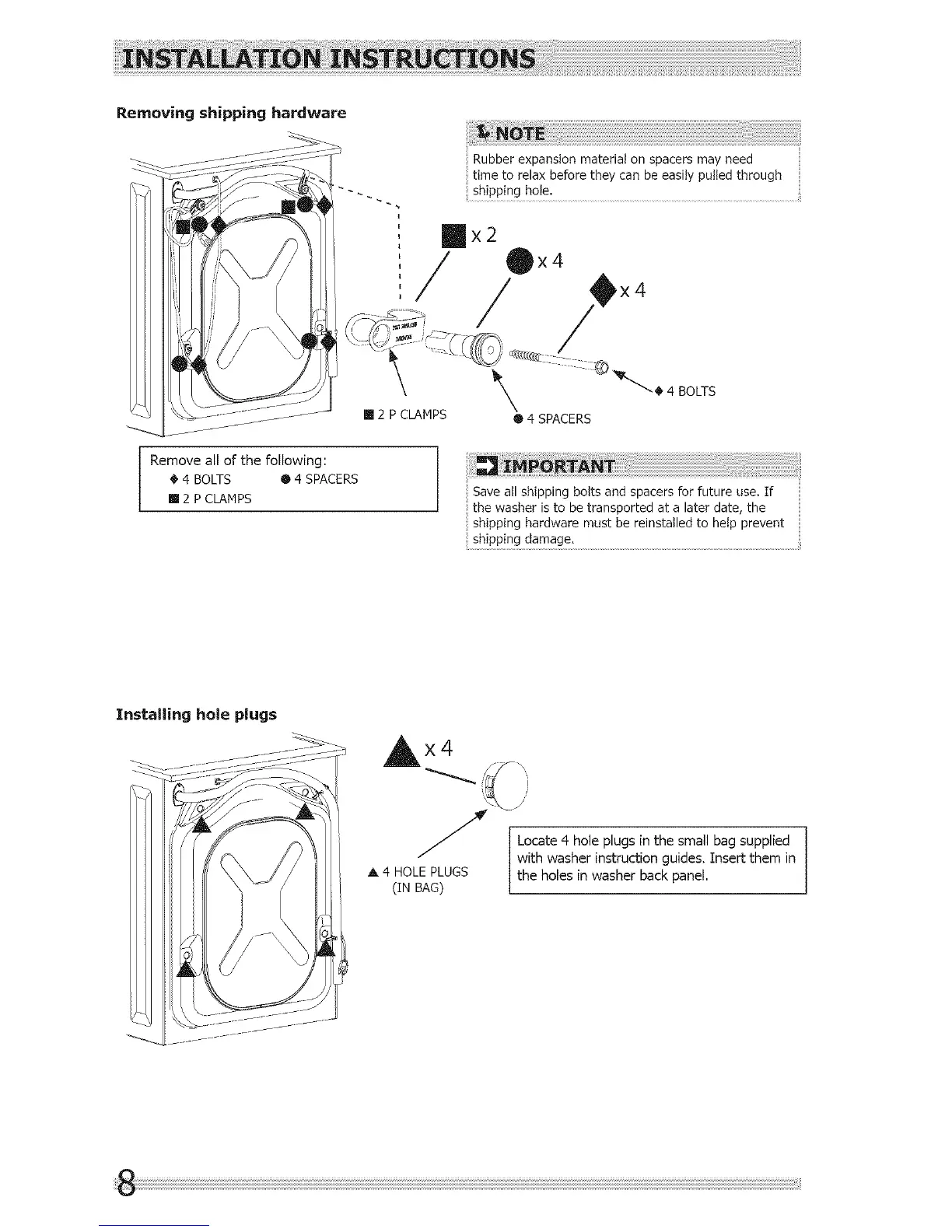

Removing shipping hardware
Rubber expansion material on spacers may need
time to relax before they can be easily pulled through
-.... shipping hole.
]
' II
, X2
i
i / _x4
:/ / ,×4
" :............'..... {:_, <{t_<<<<:::::::::::: <9._......,
4 BOLTS
[] 2 P CLAMPS O 4 SPACERS
Remove all of the following:
4 BOLTS O 4 SPACERS
[] 2 P CLAMPS
Save all shipping bolts and spacers for future use. If
the washer is to be transported at a later date, the
shipping hardware must be reinstalled to help prevent
sh!pp!ng damage: ..........................................................................................................................................................
Installing hole plugs
S
A 4 HOLE PLUGS
(IN BAG)
I Locate 4 hole plugs in the small bag supplied
with washer instruction guides. Insert them in
the holes in washer back panel.
