CAUTION
Wear gloves and safety goggles. Use extreme CAUTION when installing these handles.
13

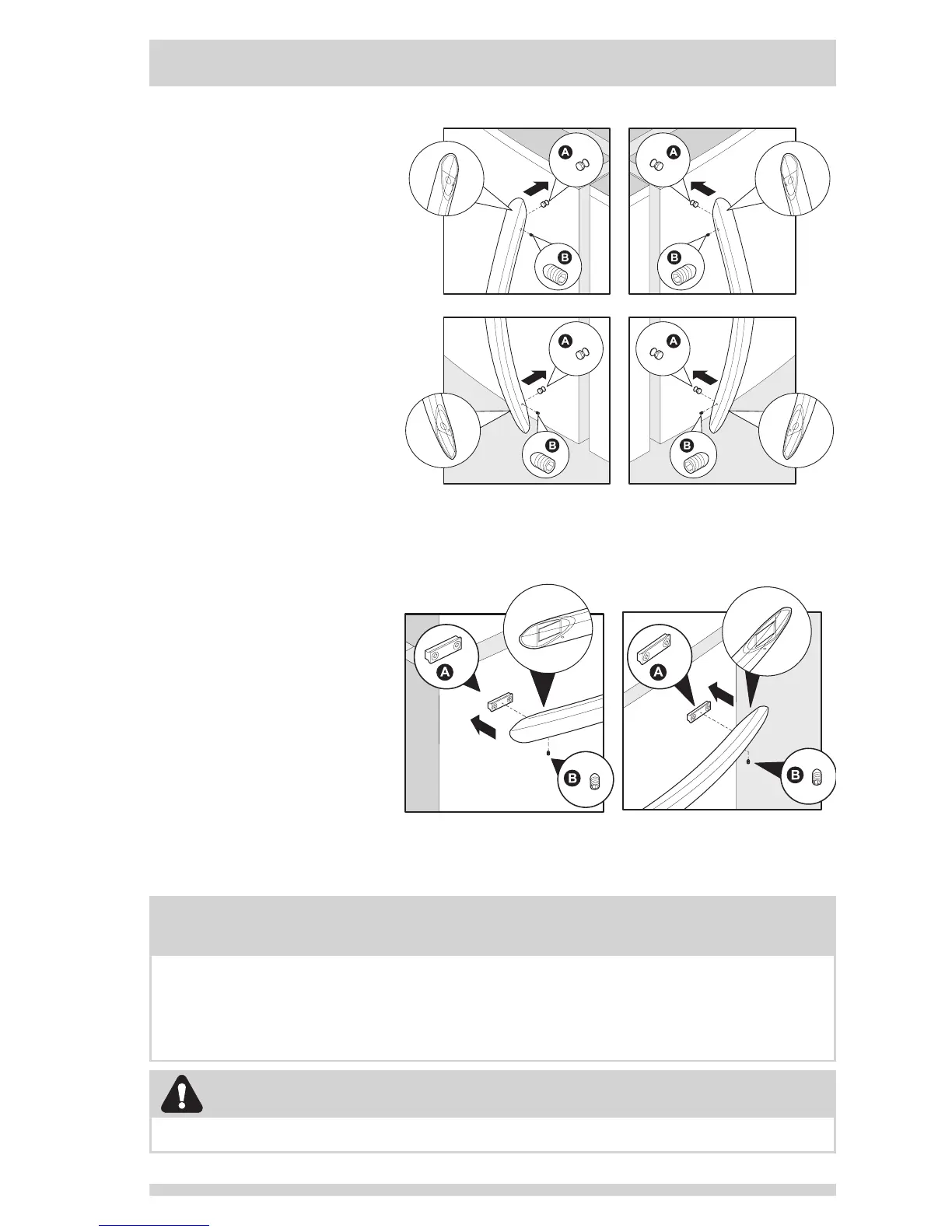

INSTALLING DOOR HANDLES
Door Handle Mounting
Instructions for
Frigidaire Gallery
®
1 Remove handles from carton
and any other protective
packaging.
2 Position fresh food handle
end over upper and lower
pre-installed shoulder bolts
(A) that are fastened into
door, ensuring the holes for
the set screws are facing
towards the opposite door.
3 While holding handle rmly
against door, fasten upper and
lower Allen set screws (B) with
supplied Allen wrench.
4 Repeat steps 2 and 3 to install
opposite handle. Ensure the
holes for the set screws are
facing towards the rst door.
5 Position freezer handle end
over left and right pre-
installed handle mounts that
are fastened to the door,
ensuring the holes for the set
screws are facing down.
6 While holding handle rmly
against door, loosely tighten
far right Allen set screw (B)
with supplied Allen wrench
until there is no gap between
handle and door.
7 Still holding the handle rmly
to the door, rmly tighten far
left Allen set screw (B) with
supplied Allen wrench.
8 Return to the far right Allen set
screw (B) and rmly tighten
with supplied Allen wrench.
Mounting Refrigerator Handles
Mounting Freezer Handle
NOTE
All set screws should be tightened so the screw is below the surface of the handle. The
handles should be drawn tight to freezer and refrigerator doors with no gaps. Opening the
opposite door while tightening the Allen screw makes installation easier.
The door handle may loosen over time or if it was installed improperly. If this happens,
tighten the set screws on the handles.
