Open
Door
90
Degrees
Loosen or Remove
Screw
Bottom of Door
Loosen/Remove Screw (where applicable)

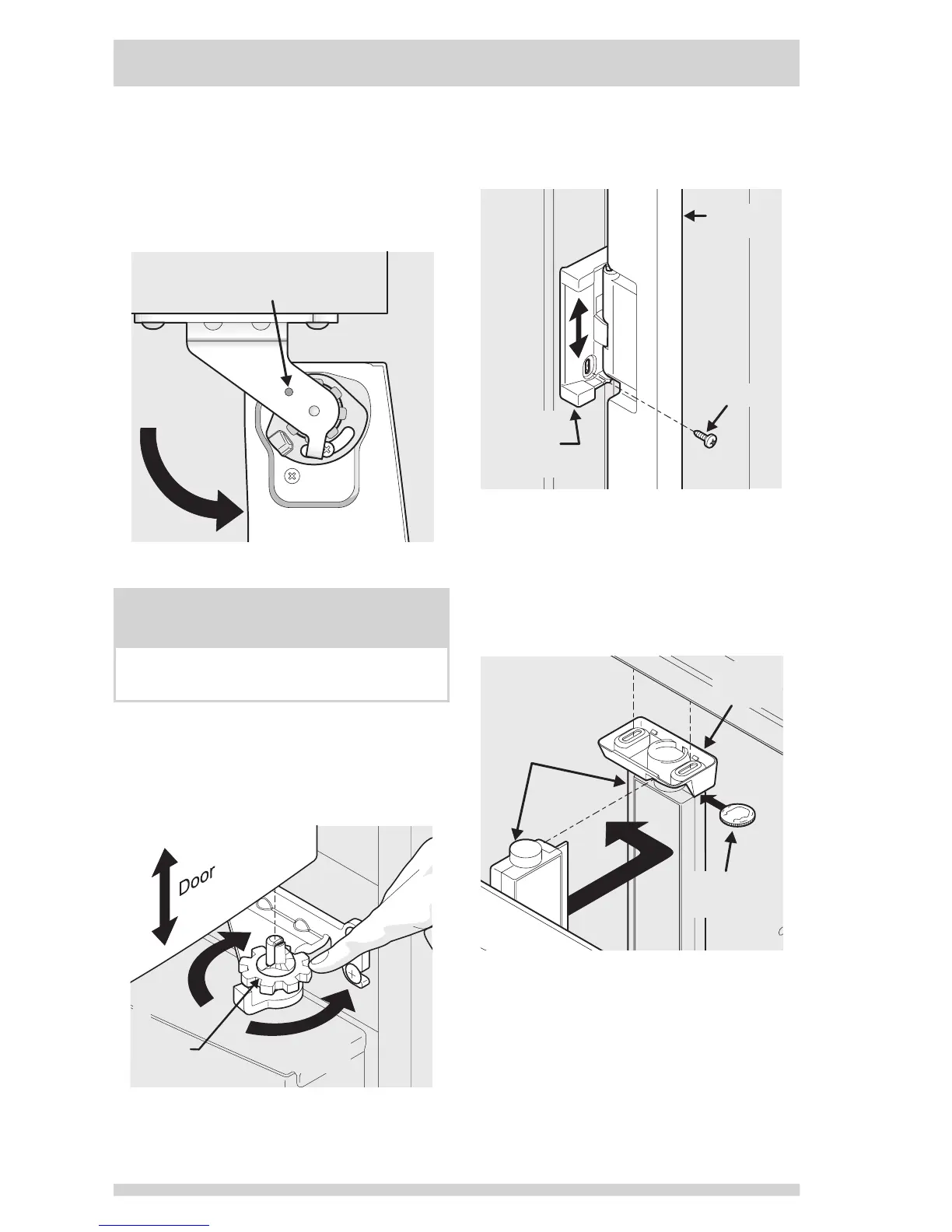

To level the doors using the adjustable
lower hinge (select models):
1 Remove all food items from door bins on
door being adjusted.
2 Open doors to 90 degrees.
3 Loosen or remove screw.

NOTE
Adjustable hinge should only be used after
doors have been leveled with rollers.
Flipper
Mullion
Screw
Flipper
Mullion
Hinge
Adjusting Flipper Mullion Screw
To adjust the ipper mullion:
1 Loosen the screw located on the ipper
mullion hinge.
2 Adjust ipper mullion height. For proper
connection with the ipper mullion guide,
there should be a separation about the
thickness of a coin (0.060 inches, or
1.5 mm) between the guide and ipper
mullion.
3 Re-tighten screw.
4 Lift the door while adjusting the washer.
To raise the door, rotate washer clockwise
(when viewed from the bottom). To lower
door, rotate washer counter-clockwise
(when viewed from the bottom).
Flipper
Mullion
Mullion
Guide
Thickness
of a Coin
Adjusting Flipper Mullion Height
Hinge
Washer
Raise
Door
Lower
Door
Raising/Lowering Door
