DOOR REMOVAL/REVERSAL
(UNITS WITH TEMPERATURE CONTROL OUTSIDE)

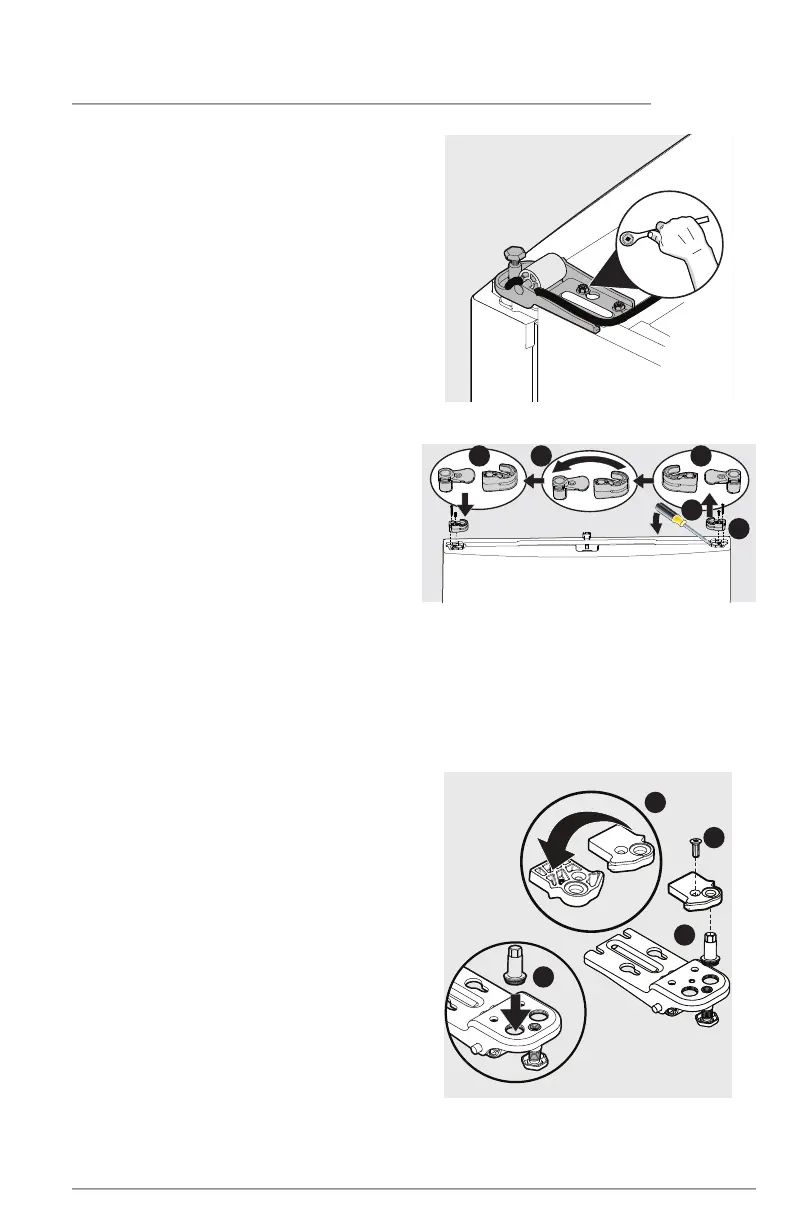

8. Remove the bottom hinge using
5/16” (8mm) wrench (see Figure 4).
9. Using a Phillips™ screwdriver,
remove the screws from the hinge
bearing and the door closer (see
Figure 5A).
10. Using a flathead screwdriver, gently
pry the door closer/hinge bearing
assembly out of the door (see Fig-
ure 5B).
11. Separate the door closer and hinge
bearing (see Figure 5C).
12. Flip the door closer over 180° and
reinstall the door closer onto the
hinge bearing (see Figure 5D).
13. Using a Phillips™ screwdriver, attach
the door closer/hinge bearing as-
sembly to the opposite side of the
door (see Figure 5E).
14. Remove the screw from the door
stop located on the bottom hinge,
using a Phillips™ screwdriver (see
Figure 6A).
15. Using a flathead screwdriver, gently
pry the door stop o the bottom
hinge pin (see Figure 6B)
16. Using an adjustable wrench, remove
the bottom hinge pin and install into
the left hole (see Figure 6C) .
17. Flip the door stop over 180° and
reinstall onto the bottom hinge pin.
Secure the door stop with the screw
(see Figure 6D).
Figure 5
Bottom
C
B
A
DE
Figure 4
Figure 6
A
B
C
D
