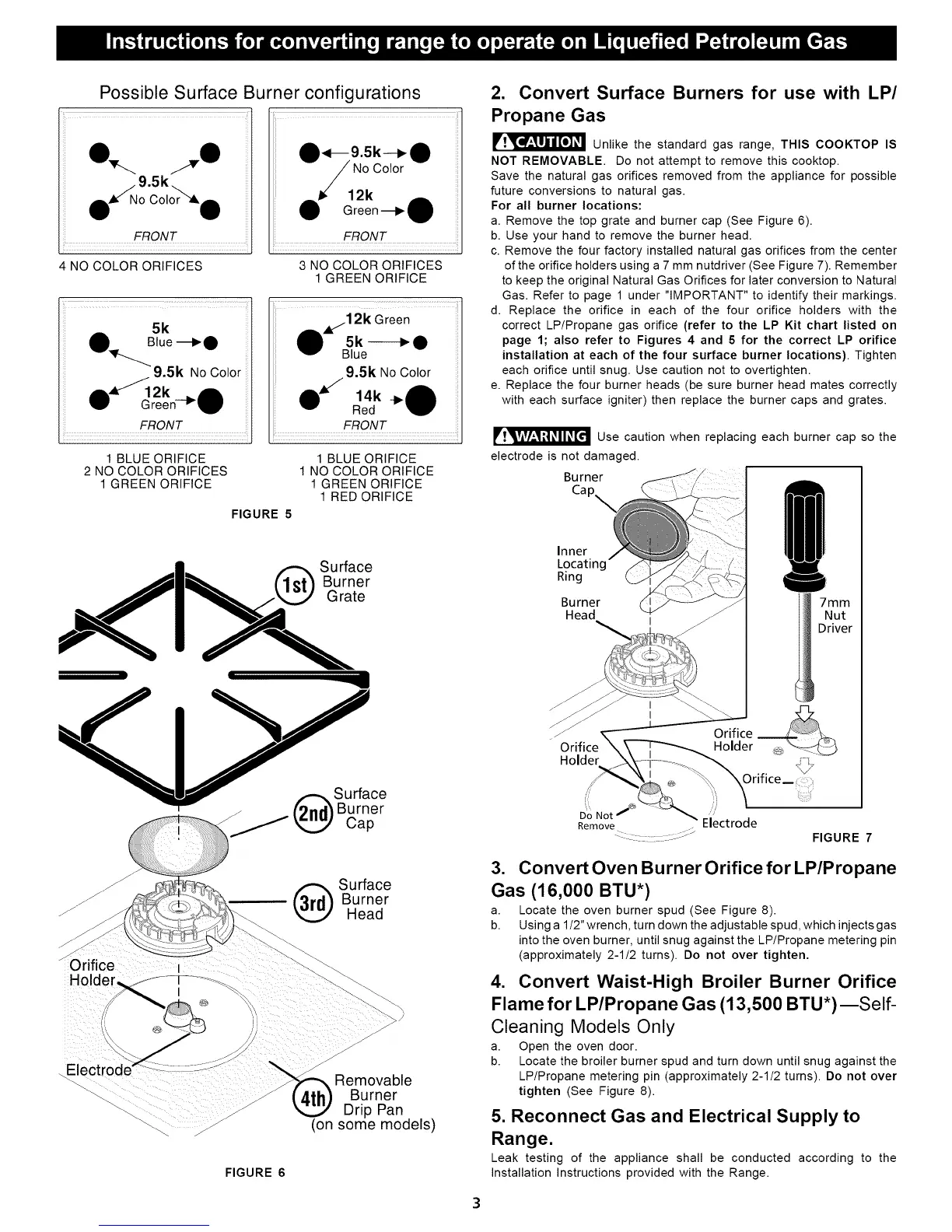

Possible Surface Burner configurations
FRONT
4 NO COLOR ORIFICES
_1_ 9.5k--_ _1
No Color
12k A
O Green_l_Q
FRONT
3 NO COLOR ORIFICES
1 GREEN ORIFICE
5k
O Blue _O
9.5k NoColor
FRONT
1 BLUE ORIFICE
2 NO COLOR ORIFICES
1 GREEN ORIFICE
_..12k Green
5k -----_O
"_" Blue
9.5k No Color
•
FRONT
1 BLUE ORIFICE
1 NO COLOR ORIFICE
1 GREEN ORIFICE
1 RED ORIFICE
FIGURE 5
• _-_ Surface
Burner
Orifice
Surface
Burner
Head
Removable
Burner
Drip Pan
(on some models)
FIGURE 6
2. Convert Surface Burners for use with LP/
Propane Gas
[_[_J"_ Unlike the standard gas range, THIS COOKTOP IS
NOT REMOVABLE. Do not attempt to remove this cooktop.
Save the natural gas orifices removed from the appliance for possible
future conversions to natural gas.
For all burner locations:
a. Remove the top grate and burner cap (See Figure 6).
b. Use your hand to remove the burner head.
c. Remove the four factory installed natural gas orifices from the center
of the orifice holders using a 7 mm nutdriver (See Figure 7). Remember
to keep the original Natural Gas Orifices for later conversion to Natural
Gas. Refer to page 1 under "IMPORTANT" to identify their markings.
d. Replace the orifice in each of the four orifice holders with the
correct LP/Propane gas orifice (refer to the LP Kit chart listed on
page 1; also refer to Figures 4 and 5 for the correct LP orifice
installation at each of the four surface burner locations). Tighten
each orifice until snug. Use caution not to overtighten.
e. Replace the four burner heads (be sure burner head mates correctly
with each surface igniter) then replace the burner caps and grates.
_ Use caution when replacing each burner cap so the
electrode is not damaged.
Burner
Cap_
Inner
Locatinc
Ring
Burner
Head
7mm
Nut
Driver
Holder
D('oNot _{ }
Remove Electrode
FIGURE 7
3. Convert Oven Burner Orifice for LP/Propane
Gas (16,000 BTU*)
a. Locate the oven burner spud (See Figure 8).
b. Using a 1/2" wrench, turn down the adjustable spud, which injects gas
into the oven burner, until snug against the LP/Propane metering pin
(approximately 2-1/2 turns). Do not over tighten.
4. Convert Waist-High Broiler Burner Orifice
Flame for LP/Propane Gas (13,500 BTU*) mSelf-
Cleaning Models Only
a. Open the oven door.
b. Locate the broiler burner spud and turn down until snug against the
LP/Propane metering pin (approximately 2-1/2 turns). Do not over
tighten (See Figure 8).
5. Reconnect Gas and Electrical Supply to
Range.
Leak testing of the appliance shall be conducted according to the
Installation Instructions provided with the Range.
