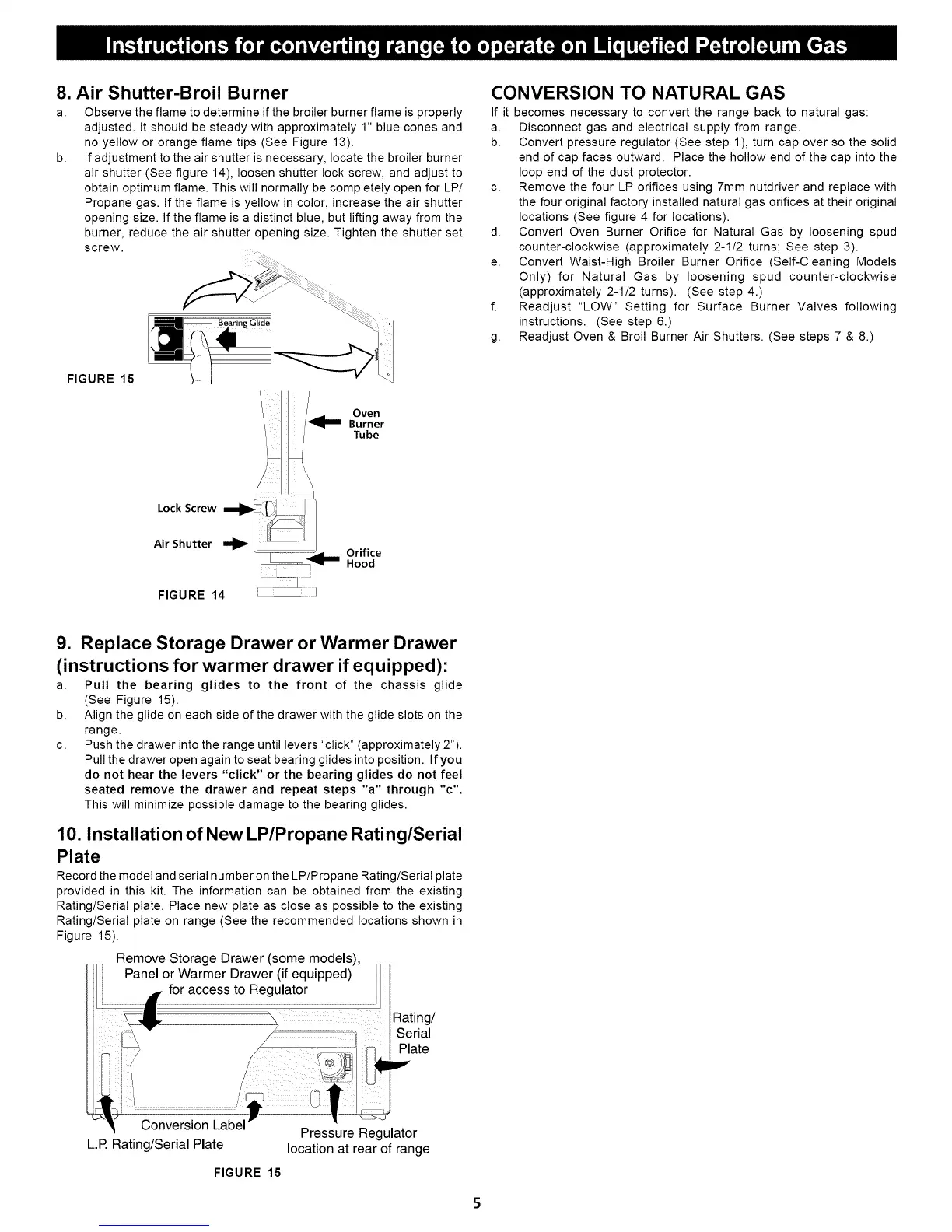

8. Air Shutter-Broil Burner
a. Observe the flame to determine if the broiler burner flame is properly
adjusted. It should be steady with approximately 1" blue cones and
no yellow or orange flame tips (See Figure 13).
b. If adjustment to the air shutter is necessary, locate the broiler burner
air shutter (See figure 14), loosen shutter lock screw, and adjust to
obtain optimum flame. This will normally be completely open for LP/
Propane gas. If the flame is yellow in color, increase the air shutter
opening size. If the flame is a distinct blue, but lifting away from the
burner, reduce the air shutter opening size. Tighten the shutter set
screw.
Glide
FIGURE 15
Lock Screw
Air Shutter =_
Oven
Burner
Tube
Orifice
Hood
FIGURE 14
CONVERSION TO NATURAL GAS
If it becomes necessary to convert the range back to natural gas:
a. Disconnect gas and electrical supply from range.
b. Convert pressure regulator (See step 1), turn cap over so the solid
end of cap faces outward. Place the hollow end of the cap into the
loop end of the dust protector.
c. Remove the four LP orifices using 7mm nutdriver and replace with
the four original factory installed natural gas orifices at their original
locations (See figure 4 for locations).
d. Convert Oven Burner Orifice for Natural Gas by loosening spud
counter-clockwise (approximately 2-1/2 turns; See step 3).
e. Convert Waist-High Broiler Burner Orifice (Self-Cleaning Models
Only) for Natural Gas by loosening spud counter-clockwise
(approximately 2-1/2 turns). (See step 4.)
f. Readjust "LOW" Setting for Surface Burner Valves following
instructions. (See step 6.)
g. Readjust Oven & Broil Burner Air Shutters. (See steps 7 & 8.)
9. Replace Storage Drawer or Warmer Drawer
(instructions for warmer drawer if equipped):
a. Pull the bearing glides to the front of the chassis glide
(See Figure 15).
b. Align the glide on each side of the drawer with the glide slots on the
range.
c. Push the drawer into the range until levers "click" (approximately 2").
Pull the drawer open again to seat bearing glides into position. If you
do not hear the levers "click" or the bearing glides do not feel
seated remove the drawer and repeat steps "a" through "c".
This will minimize possible damage to the bearing glides.
10. Installation of New LP/Propane Rating/Serial
Plate
Record the model and serial number on the LP/Propane Rating/Serial plate
provided in this kit. The information can be obtained from the existing
Rating/Serial plate. Place new plate as close as possible to the existing
Rating/Serial plate on range (See the recommended locations shown in
Figure 5).
Remove Storage Drawer (some models),
L.P. Rating/Serial Plate
Pressure Regulator
location at rear of range
FIGURE 15
