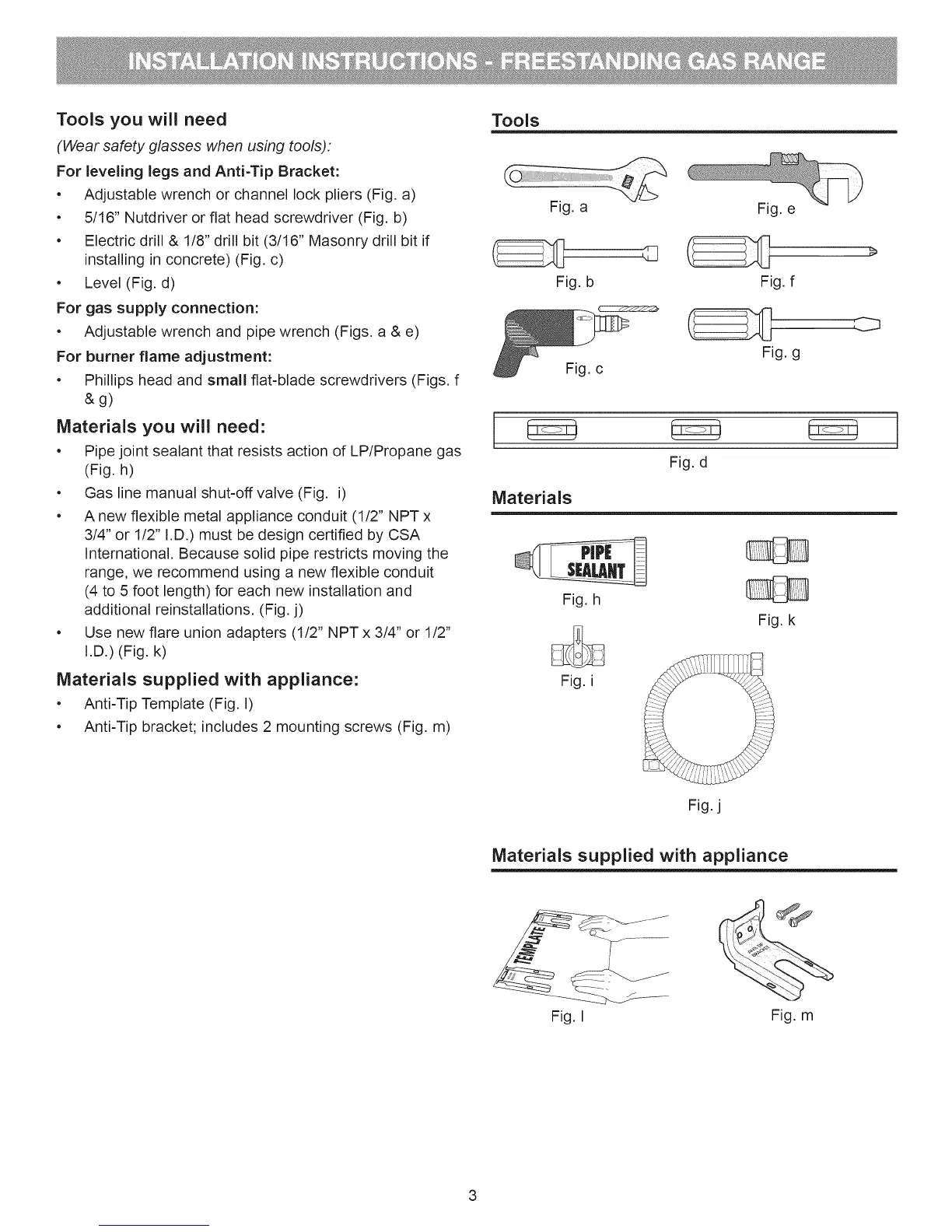

Tools you will need
(Wear safety glasses when using tools):
For leveling legs and Anti=Tip Bracket:
• Adjustable wrench or channel lock pliers (Fig, a)
• 5/16" Nutdriver or flat head screwdriver (Fig. b)
• Electric drill & 1/8" drill bit (3/16" Masonry drill bit if
installing in concrete) (Fig, c)
• Level (Fig. d)
For gas supply connection:
• Adjustable wrench and pipe wrench (Figs, a & e)
For burner flame adjustment:
• Phillips head and small flat-blade screwdrivers (Figs. f
&g)
Materials you will need:
• Pipe joint sealant that resists action of LP/Propane gas
(Fig. h)
• Gas line manual shut-off valve (Fig. i)
• A new flexible metal appliance conduit (1/2" NPT x
3/4" or 1/2" I.D.) must be design certified by CSA
International. Because solid pipe restricts moving the
range, we recommend using a new flexible conduit
(4 to 5 foot length) for each new installation and
additional reinstallations. (Fig. j)
• Use new flare union adapters (1/2" NPT x 3/4" or 1/2"
I.D.) (Fig. k)
Materials supplied with appliance:
• Anti=Tip Template (Fig. I)
• Anti-Tip bracket; includes 2 mounting screws (Fig. m)
Tools
Fig. a Fig. e
,,_
Fig. b Fig. f
Fig. g
Fig. c
Fig. d
Materials
Fig. h
Fig. k
Fig. i
Fig. j
Materials supplied with appliance
Fig. I Fig. m
3
