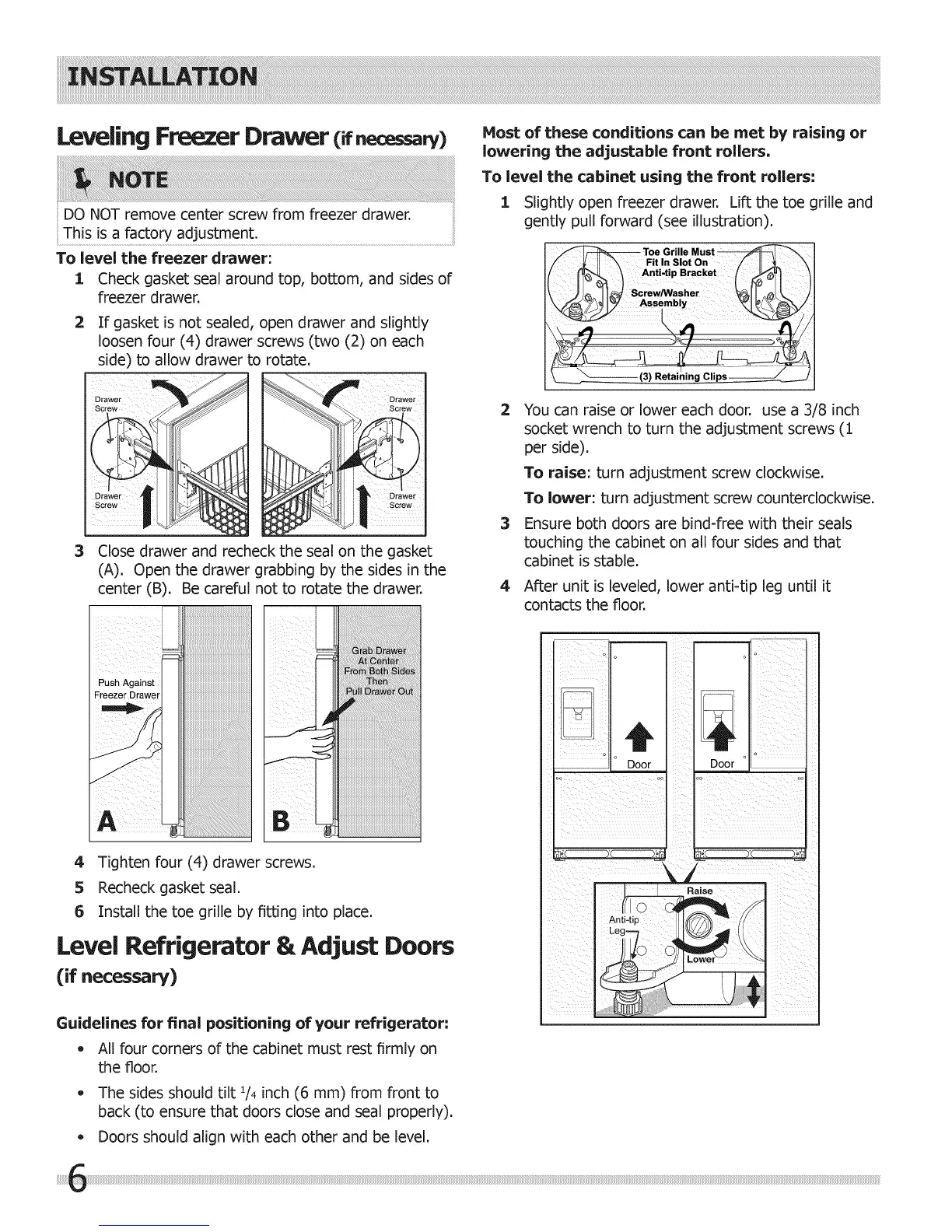

LevelingFreezer Drawer necessary)
DO NOT remove center screw from freezer drawer.
This is a factory adjustment.
To level the freezer drawer:
1 Check gasket sea! around top, bottom, and sides of
freezer drawer.
If gasket is not sealed, open drawer and slightly
loosen four (4) drawer screws (two (2) on each
side) to allow drawer to rotate.
Drawer Drawer
_ Screw
Screw
Close drawer and recheck the seal on the gasket
(A). Open the drawer grabbing by the sides in the
center (B). Be careful not to rotate the drawer.
i ilil;iiill!!!Ti!iiiiiii
4 Tighten four (4) drawer screws.
5 Recheck gasket sea!.
6 Install the toe grille by fitting into place.
Level Refrigerator & Adjust Doors
(if necessary)
Host of these conditions can be met by raising or
lowering the adjustable front rollers,
To level the cabinet using the front rollers;
1 Slightly open freezer drawer. Lift the toe grille and
gently pull forward (see illustration).
Toe Grille Must
/ __. H \ Fit In Slot On / I J.
( F_4J6_ 1 Anti4ip Bracket ( _"1
\ ) ;_'_l_ Screw/Washer _lr_,L
\_77_ I_ Assembly _
2 You can raise or lower each door. use a 3/8 inch
socket wrench to turn the adjustment screws (1
per side).
To raise: turn adjustment screw clockwise.
To lower: turn adjustment screw counterclockwise.
3 Ensure both doors are bind-free with their seals
touching the cabinet on all four sides and that
cabinet isstable.
4
After unit is leveled, lower anti-tip leg until it
contacts the floor.
Guidelines for final positioning of your refrigerator:
- All four corners of the cabinet must rest firmly on
the floor.
- The sides should tilt !/4 inch (6 mm) from front to
back (to ensure that doors close and seal properly).
* Doors should align with each other and be level.
