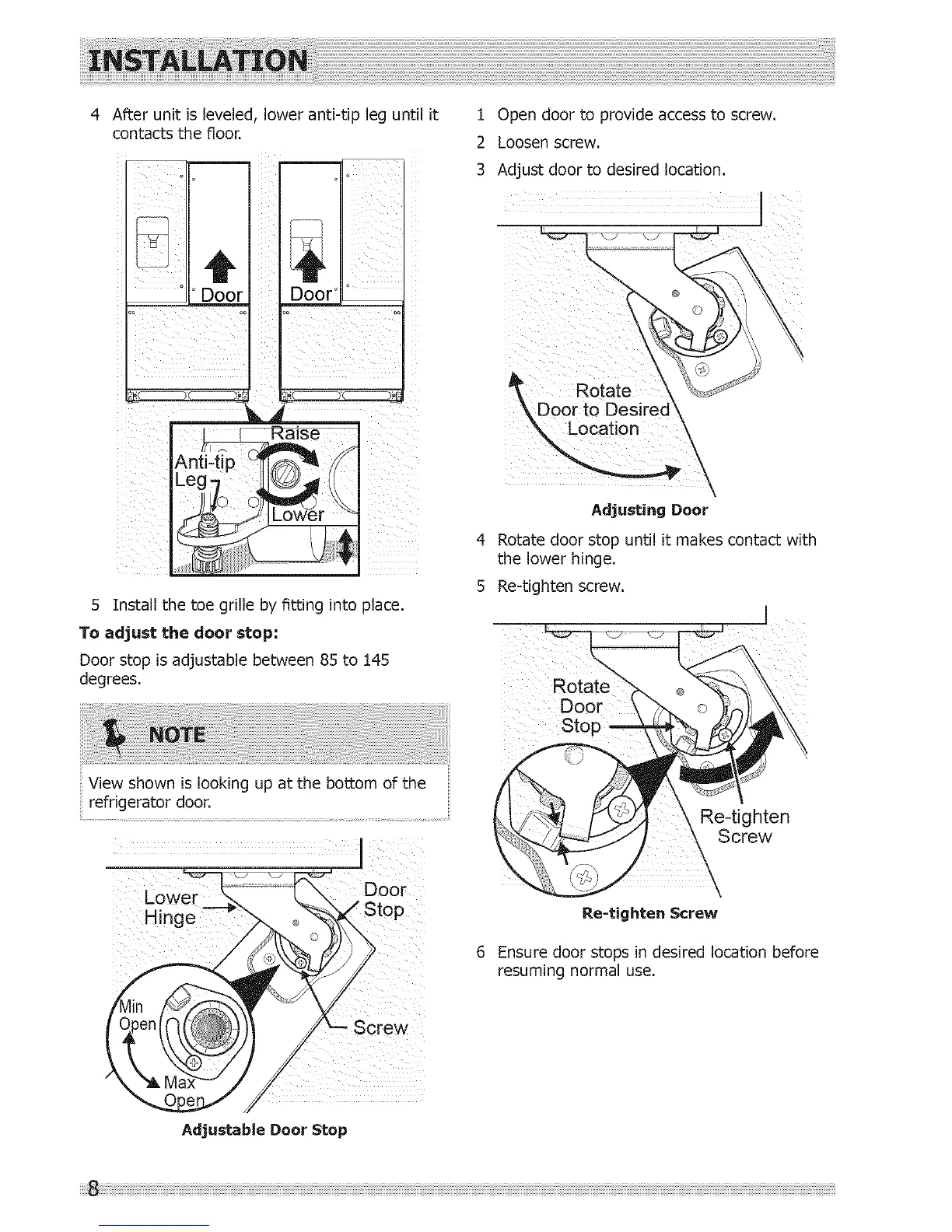

Frigidaire FGHB2866PF6 - Adjusting Door Stop

4 Afterunitisleveled,loweranti-tipleguntilit
contactsthefloor.
_Raise
Leg
5 Install the toe grille by fitting into place.
To adjest the door stop:
Door stop is adjustable between 85 to 145
degrees.
View shown is looking up at the bottom of the
refrigeratordoor.
Lower
Hinge
Door
)P
Crew
Adjustable Door Stop
1 Open door to provide access to screw.
2 Loosen screw.
3 Adjust door to desired location.
\Door to Desired
LOcation
Adjusting Door
4 Rotate door stop until it makes contact with
the lower hinge.
5 Re-tighten screw,
Door
©
Re-tighten
Screw
Re=tighten Screw
Ensure door stops in desired location before
resuming normal use.
