Top Hinge Top Hinge
Cover Front Cover Rear
Screw_ _.J Screw
Top Screwu_ sHinege B_tt_em_
Reoi Front"
Cover Screw €0ver Screws
! 4_ I Cover
,
II#--._ _ Screws
\\--&\ .op.,n.e
Tools Necessary:
Phillips" Head
AND

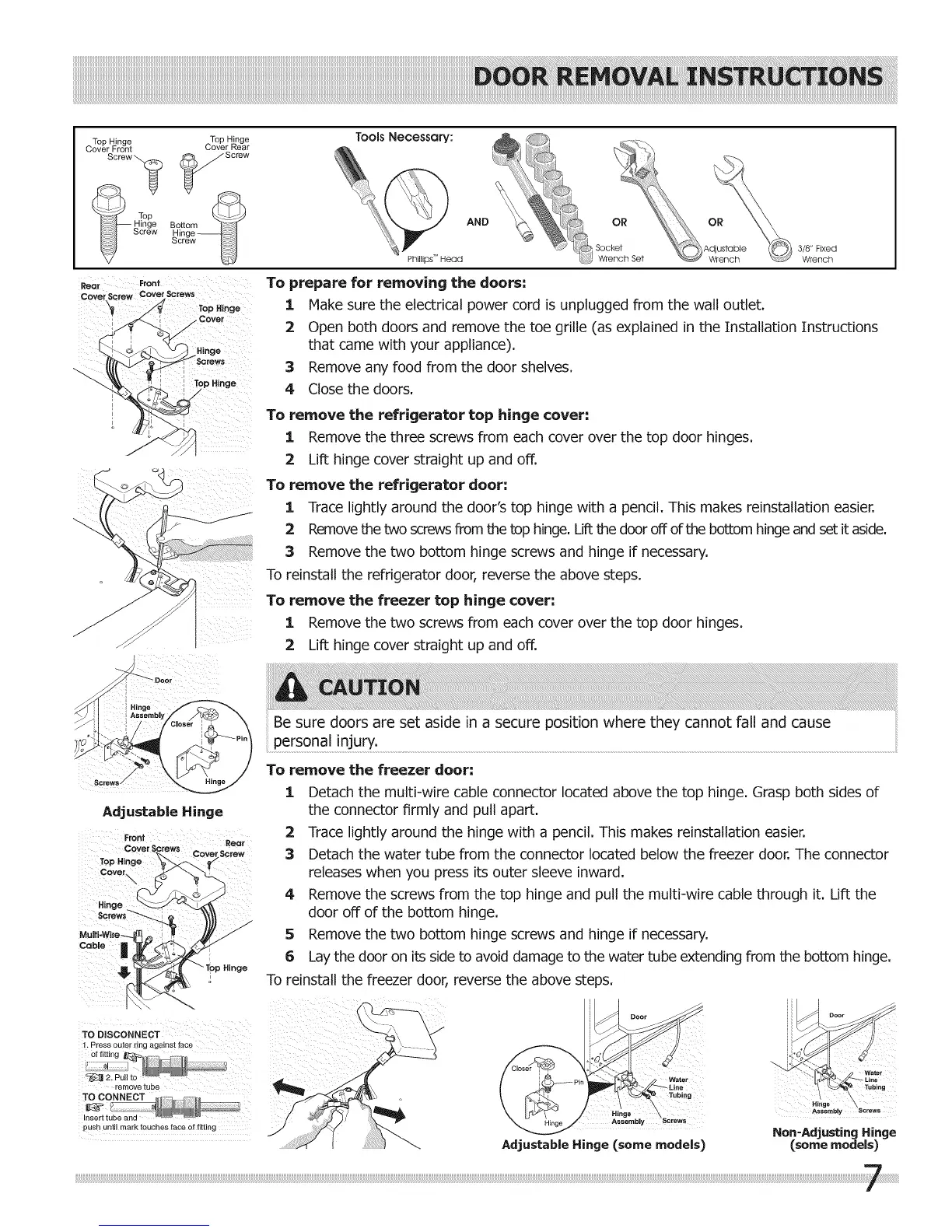

To prepare for removing the doors:
3/8" Fixed
Wrench
Adjustable Hinge
To reinstall the refrigerator door, reverse the above steps.
To remove the freezer top hinge cover:
1 Remove the two screws from each cover over the top door hinges.
2 Lift hinge cover straight up and off.
Be sure doors are set aside in a secure position where they cannot fall and cause
personal injury. ....
To remove the freezer door:
Front
Rear
Cover Screws C vet Screw
T°cPveHinge _._o j_..
Hinge __
)//
°
TO DISCONNECT
1.Press outer ringagainst face
remove tube
oush until mark touches face of fitting
1 Detach the multi-wire cable connector located above the top hinge. Grasp both sides of
the connector firmly and pull apart.
2 Trace lightly around the hinge with a pencil. This makes reinstallation easier.
3 Detach the water tube from the connector located below the freezer door. The connector
releases when you press its outer sleeve inward.
4 Remove the screws from the top hinge and pull the multi-wire cable through it. Lift the
door off of the bottom hinge.
5 Remove the two bottom hinge screws and hinge if necessary.
6 Laythe door on its side to avoid damage to the water tube extending from the bottom hinge.
To reinstall the freezer door, reverse the above steps.
i½oo
Water
•- Line
Tubing
i Assembmy Screw s
Adjustable Hinge (some models)
Non-Adjusting Hinge
(some models)
To remove the refrigerator top hinge cover:
1 Remove the three screws from each cover over the top door hinges.
2 Lift hinge cover straight up and off.
To remove the refrigerator door:
1 Trace lightly around the door's top hinge with a pencil. This makes reinstallation easier.
2 Removethe two screwsfrom the top hinge. Lift the door off of the bottom hingeand set it aside.
3 Remove the two bottom hinge screws and hinge if necessary.
1 Make sure the electrical power cord is unplugged from the wall outlet.
2 Open both doors and remove the toe grille (as explained in the Installation Instructions
that came with your appliance).
3 Remove any food from the door shelves.
4 Close the doors.
