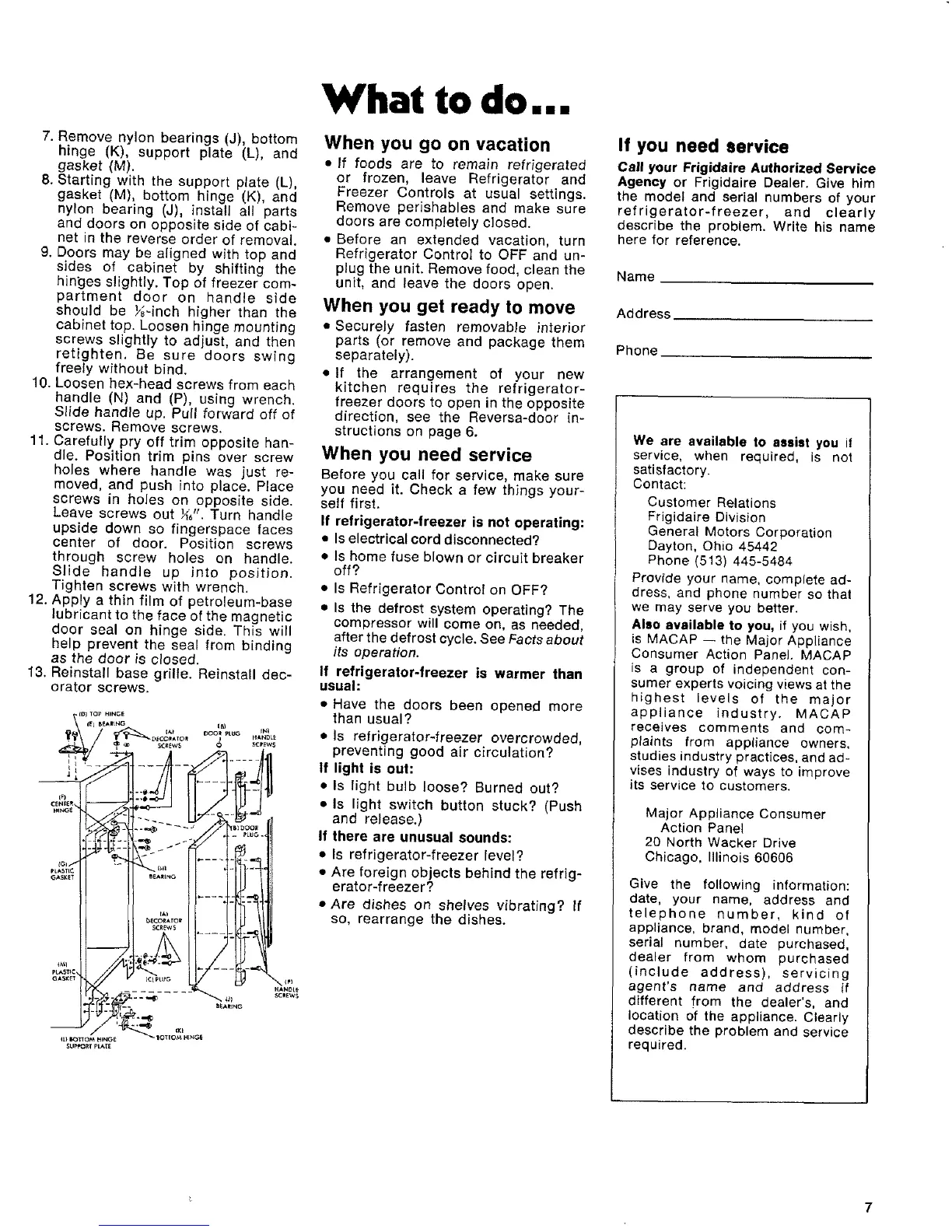

7.Removenylonbearings(J),bottom
hinge(K),supportplate(L), and
gasket (M).
8. Starting with the support plate (L),
gasket (M), bottom hinge (K), and
nylon bearing (J), install all parts
and doors on opposite side of cabi-
net in the reverse order of removal.
9. Doors may be aligned with top and
sides of cabinet by shifting the
hinges slightly. Top of freezer com-
partment door on handle side
should be Y_-inch higher than the
cabinet top. Loosen hinge mounting
screws slightly to adjust, and then
retighten. Be sure doors swing
freely without bind.
10. Loosen hex-head screws from each
handle iN) and (P), using wrench,
S_ide handle up, Pul_ forward off of
screws. Remove screws.
11. Carefully pry off trim opposite han-
dle. Position trim pins over screw
holes where handle was just re-
moved, and push into place. Place
screws in holes on opposite side.
Leave screws out _J'. Turn handle
upside down so fingerspace faces
center of door. Position screws
through screw holes on handle.
Slide handle up into position.
Tighten screws with wrench.
12. Apply a thin film of petroleum-base
lubricant to the face of the magnetic
door seal on hinge side. This will
help prevent the seal from binding
as the door is closed.
13. Reinstall base grille. Reinstall dec-
orator screws.
What to do...
When you go on vacation
* If foods are to remain refrigerated
or frozen, leave Refrigerator and
Freezer Controls at usual settings.
Remove perishables and make sure
doors are completely closed.
• Before an extended vacation, turn
Refrigerator Control to OFF and un-
plug the unit. Remove food, clean the
unit, and leave the doors open.
When you get ready to move
• Securely fasten removabJe interior
parts (or remove and package them
separately).
• If the arrangement of your new
kitchen requires the refrigerator-
freezer doors to open in the opposite
direction, see the Reversa-door in-
structions on page 6.
When you need service
Before you call for service, make sure
you need it. Check a few things your-
self first.
If refrigerator-freezer is not operating:
• Is electrical cord disconnected?
• Is home fuse blown or circuit breaker
off?
• Is Refrigerator Control on OFF?
* Is the defrost system operating? The
compressor will come on, as needed,
after the defrost cycle. See Facts about
its operation.
If refrigerator-freezer is warmer than
usual:
• Have the doors been opened more
than usual?
• Is refrigerator-freezer overcrowded,
preventing good air circulation?
If light is out:
• Is light bulb loose? Burned out?
• Is light switch button stuck? (Push
and release.)
I1 there are unusual sounds:
• Is refrigerator-freezer level?
• Are foreign objects behind the refrig-
erator-freezer?
• Are dishes on shelves vibrating? If
so, rearrange the dishes.
If you need service
Call your Frigidaire Authorized Service
Agency or Frigidaire Dealer. Give him
the model and serial numbers of your
refrigerator-freezer, and clearly
describe the problem. Write his name
here for reference.
Name
Address
Phone
We are available to assist you it
service, when required, is net
satisfactory.
Contact:
Customer Relations
Frigidaire Division
General Motors Corporation
Dayton, Ohio 45442
Phone (513) 445-5484
Provide your name, complete ad-
dress, and phone number so that
we may serve you better.
Also available to you, if you wish,
is MACAP -- the Major Appliance
Consumer Action Panel. MACAP
is a group of independent con-
sumer experts voicing views at the
highest levels of the major
appliance industry. MACAP
receives comments and com-
plaints from appliance owners,
studies industry practices, and ad-
vises industry of ways to improve
its service to customers.
Major Appliance Consumer
Action Panel
20 North Wacker Drive
Chicago, Illinois 60606
Give the following information:
date, your name, address and
telephone number, kind of
appliance, brand, model number,
serial number, date purchased,
dealer from whom purchased
(include address), servicing
agent's name and address if
different from the dealer's, and
location of the appliance. Clearly
describe the problem and service
required.
_ 7
