CAUTION
Drawer is heavy. Use caution when lifting.
12

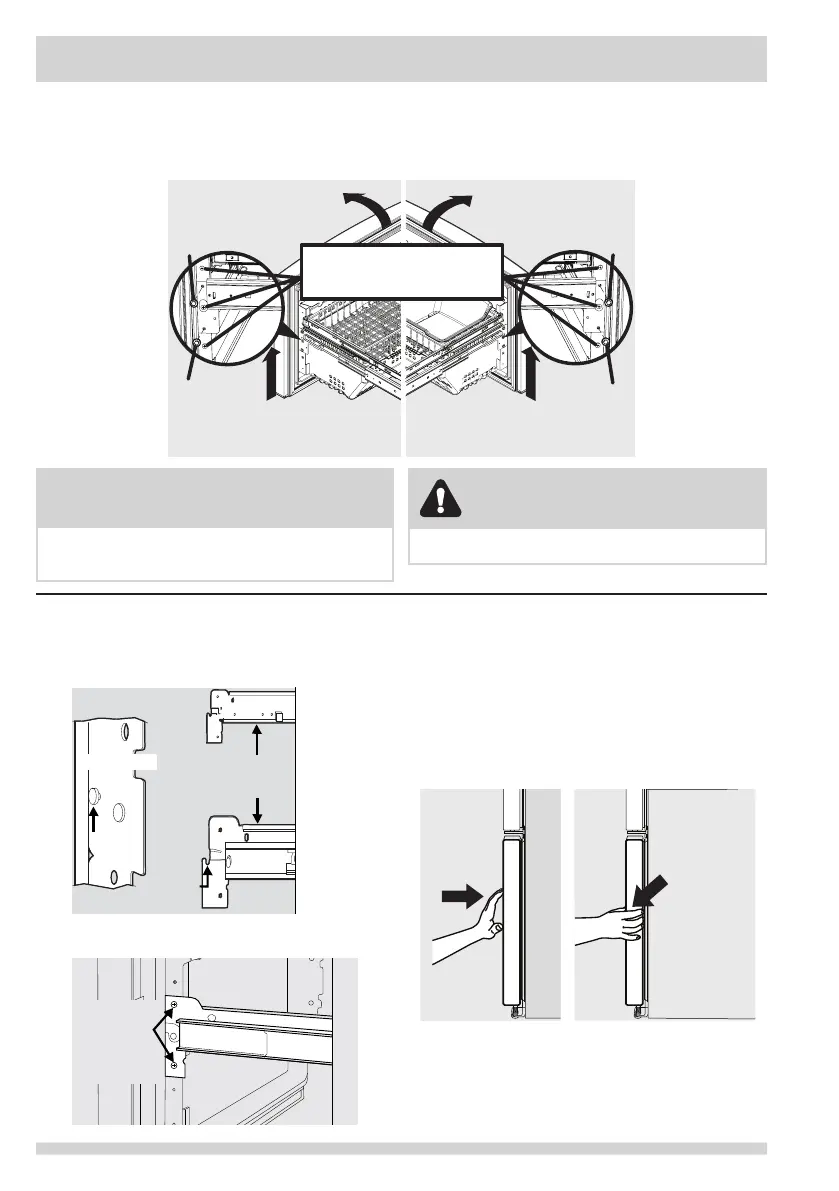

DOOR REMOVAL INSTRUCTIONS
Removing Freezer Drawer
1 Open freezer drawer.
2 Remove drawer screws on right and left sides (two screws on each side).
3 Lift drawer up and out to remove.
Installing Freezer Drawer
1 With lower slides pulled out, hang drawer
onto slide brackets ensuring pins on each side
are fully inserted into slots on each side.
6 Tighten four drawer screws.
7 Recheck gasket seal.
8 Installthetoegrillebyttingintoplace.
A
B
Grab
Drawer
at Center
from Both
Sides
Then
Pull
Drawer
Out
Push
Against
Freezer
Drawer
Assembly
Pin
Slot
Cabinet
Fully Extend
Drawer Slides
Install
crews
(2) Each
Side
3 Check gasket seal around top, bottom, and
sides of freezer drawer.
4 If gasket is not sealed, open drawer and
slightly loosen four drawer screws (two on
each side) to allow drawer to rotate.
5 Close drawer and recheck the seal on the
gasket (A). Open the drawer grabbing by
the sides in the center (B). Be careful not to
rotate the drawer.
Head Drawer
Screw
Remove
Hex Head Drawer
Screw
Do Not Remove
Other Screws
Head Drawer
Screw
Remove
Hex Head Drawer
NOTE
Do not remove center screw from freezer
drawer. This is a factory adjustment.
2 Reinstall four drawer screws (two per side),
tighten down, and close drawer.
