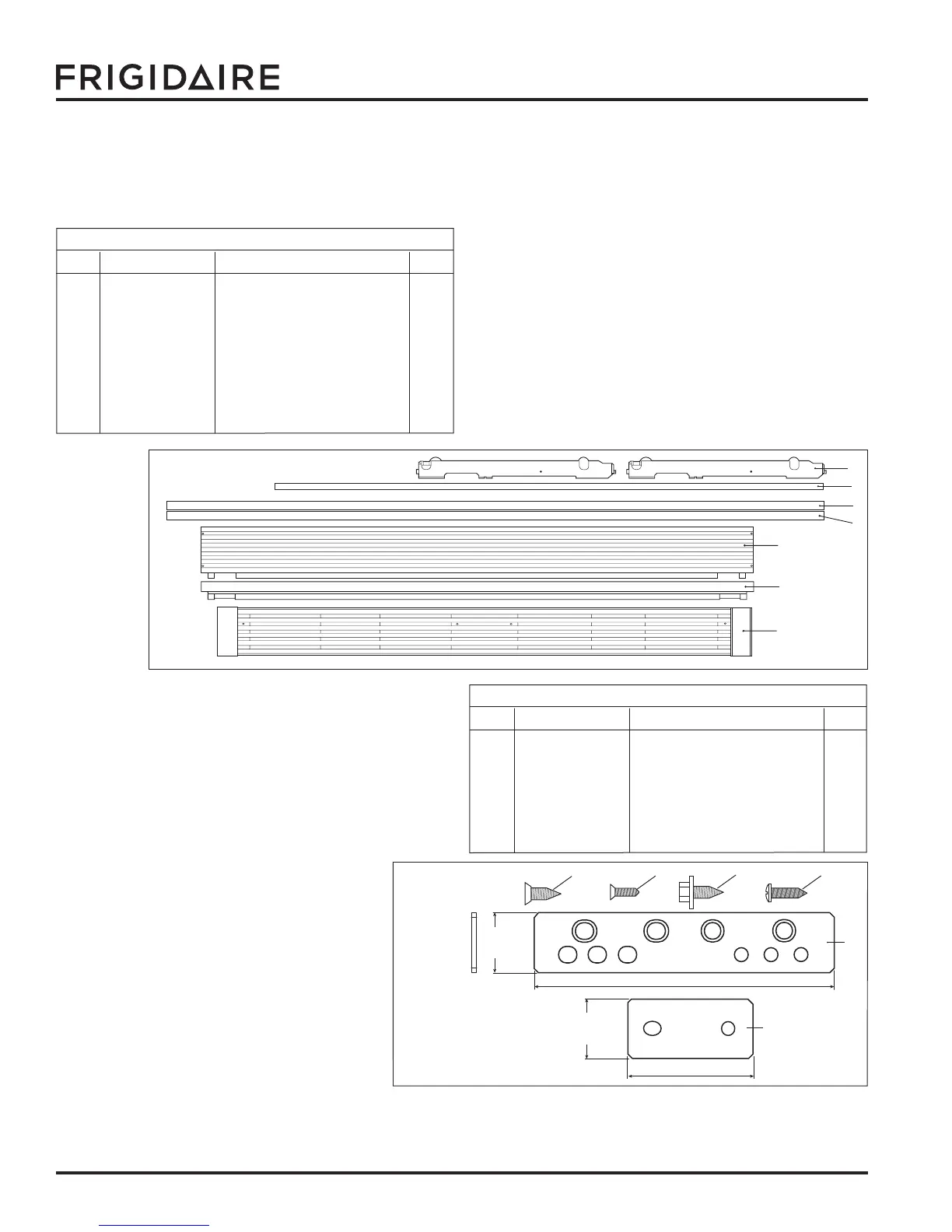

INSTRUCTION SHEET
©2011 Electrolux Home Products, Inc. Instruction Sheet 297403800 Rev. C 07.18.11
Parts Included in Kit TRIMKITEZ2 (Part# 297333600):
Kit for Models: FPRH19D7LF and FPUH19D7LF
1.25”
Ref
1.25”
Ref
6.25” Ref
2.62” Ref
1H
2H
3H4H 5H6H
Hardware Pack 297343202
NOTE: All Hardware Pack components mentioned
throughout this instruction sheet will have an “H”
after the item number.
Dual Trim Kit Components
Double Trim Kit 297333600
ITEM PART NUMBER DESCRIPTION QTY
1 297336900 Center Trim U19 1
2 297349000 Trim Side RH U19 1
3 297349001 Trim Side LH U19 1
4 297332700 Trim Top Short U19 Dual 1
5 297332800 Trim Top Tall U19 Dual 1
6 297333300 Kick Plate U19 Dual 1
7 297337700 Carton, Packaging 1
8 297343202 Hardware Pack Dual U19 1
9 297276900 Lever Assembly Support System 4
Hardware Pack 297343202
ITEM PART NUMBER DESCRIPTION QTY
1H 297333900 Tie-Bar Hinge 2
2H 297333901 Tie-Bar Back 1
3H 297236250 Screw 1/4-20 x .63 18
4H 297337000 Screw FH 1/4-20 x .63 4
5H 050149 Screw TH #8-18 x .75 AB 8
6H 297142600 Screw FH #8-32 x .63 2
7H 297403800 Installation Instructions 1
1
2
5
3
6
9
4
Front View
Double Trim Kit
