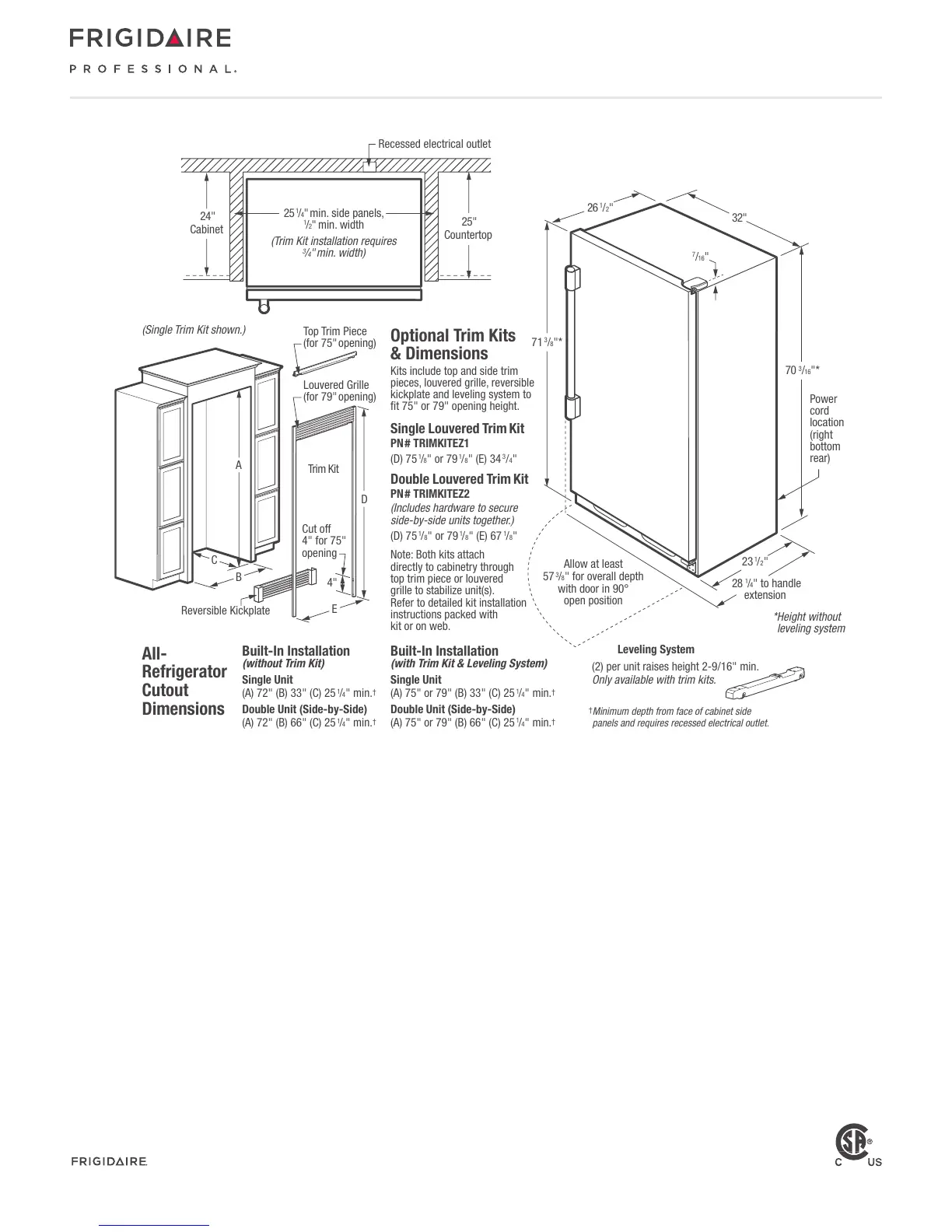

Frigidaire FPRU19F8RF Product Dimensions

Specifications
subject to change.
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
FPRU19F8R 07/15 © 2015 Electrolux Home Products, Inc.
FPRU19F8RF 18.6 Cu. Ft.
All Refrigerator
All Refrigerator (18.6 Cu. Ft.) - R Models with no water filter
Professional (new handle)
†
Minimum depth from face of cabinet side
panels and requires recessed electrical outlet.
Built-In Installation
(without Trim Kit)
Single Unit
(A) 72" (B) 33" (C) 25
1
/4" min.
†
Double Unit (Side-by-Side)
(A) 72" (B) 66" (C) 25
1
/4" min.
†
Built-In Installation
(with Trim Kit & Leveling System)
Single Unit
(A) 75" or 79" (B) 33" (C) 25
1
/4" min.
†
Double Unit (Side-by-Side)
(A) 75" or 79" (B) 66" (C) 25
1
/4" min.
†
Leveling System
(2) per unit raises height 2-9/16" min.
Only available with trim kits.
All-
Refrigerator
Cutout
Dimensions
Optional Trim Kits
& Dimensions
Kits include top and side trim
pieces, louvered grille, reversible
kickplate and leveling system to
fit 75" or 79" opening height.
Single Louvered Trim Kit
PN # TRIMKITEZ1
(D) 75
1
/8" or 79
1
/8" (E) 34
3
/4"
Double Louvered Trim Kit
PN # TRIMKITEZ2
(Includes hardware to secure
side-by-side units together.)
(D) 75
1
/8" or 79
1
/8" (E) 67
1
/8"
Note: Both kits attach
directly to cabinetry through
top trim piece or louvered
grille to stabilize unit(s).
Refer to detailed kit installation
instructions packed with
kit or on web.
Louvered Grille
(for 79" opening)
(Single Trim Kit shown.)
B
C
A
Cut off
4" for 75"
opening
Top Trim Piece
(for 75"
opening)
Trim Kit
E
D
4"
Reversible Kickplate
Recessed electrical outlet
25"
Countertop
24"
Cabinet
25
1
/4" min. side panels,
1
/2" min. width
(Trim Kit installation requires
3
/4" min. width)
23
1
/2"
28
1
/4" to handle
extension
*Height without
leveling system
Power
cord
location
(right
bottom
rear)
26
1
/2"
Allow at least
57
3
/8" for overall depth
with door in 90°
open position
32"
71
3
/8"*
70
3
/16"*
7
/
16
"
•
Refrigerator must be placed on level surface of hard material, same
height as flooring. Surface must support approximately 800 lbs. when
fully loaded. Unit equipped with 4-point leveling.
“Built-In Look” Specifications
•
Minimum opening of 72" H x 33" W x 25-1/4" D required for single-
unit “Built-In Look” installation; 66" W required for double-unit
installation. (72" H to be measured from finished floor to underside
of soffit or overhead cabinet.)
•
Remove all wall / floor molding prior to built-in installation.
Optional Trim Kit Specifications
•
If optional Single or Double Louvered Trim Kit is to be used, different
cutout dimensions are required. Kit can be adapted to fit either 75"
or 79" opening height. (Refer to cutout dimensions on this page and
detailed Louvered Trim Kit installation instructions included with kit
or on web.)
•
Remove all wall / floor molding prior to built-in installation.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Optional Accessories
•
Single Louvered Trim Kit – (PN # TRIMKITEZ1).
•
Double Louvered Trim Kit – (PN # TRIMKITEZ2).
•
PureAdvantage® Air Filter
Replacement Cartridge – (PN # 241754001).
Built-In All-Refrigerator Specifications
•
Product Shipping Weight – 245 Lbs.
•
An electrical supply with grounded three-prong receptacle is required.
The power supply circuit must be installed in accordance with current
edition of National Electrical Code (NFPA 70) and local codes &
ordinances.
•
Voltage Rating – 115V / 60 Hz / 20 Amps
•
Connected Load (kW Rating) @ 115 Volts = 0.55 kW
•
Amps @ 115 Volts = 15 Amps
•
Always consult local and national electric codes.
•
Minimum 25-1/4" depth requires recessed electrical outlet.
•
To allow for ease of installation, tape excess power cord to back of unit.
•
When installing refrigerator adjacent to wall, cabinet or other appliance
that extends beyond front edge of unit, 20" minimum clearance
recommended to allow for optimum 140° door swing, providing
complete drawer / crisper access and removal. (Absolute 4" minimum
clearance will ONLY allow for 90° door swing which will provide limited
drawer / crisper access with restricted removal.)
•
Minimum 3/8" clearance required for sides and top of refrigerator or
freezer with 1" clearance at rear to allow for ease of installation, proper
air circulation, and plumbing / electrical connections.
•
To ensure optimum performance, (do not install in areas where
temperature drops below 55° F or rises above 110° F) and
avoid installing in direct sunlight or close proximity to range,
dishwasher or other heat source.

Frigidaire FPRU19F8RF Specifications

General

Child lock	Yes
Door hinge	Right
Control type	Buttons
Product color	Grey, Stainless steel
Housing material	Stainless steel
Reversible doors	No
Appliance placement	Freestanding
Fridge door balconies	7
Number of vegetable drawers	1
Fridge number of shelves/baskets	3
Noise level	- dB
Certification	Star-K, CSA
Climate class	-
Fridge net capacity	526 L
Fridge gross capacity	538 L
Lamp type	LED
Cord length	1.8 m
Current	20 A
Connected load	- W
AC input voltage	115 V
AC input frequency	60 Hz
Annual energy consumption	331 kWh
Package weight	111130 g

Weight and Dimensions

Depth	673.1 mm
Width	812.8 mm
Height	1793 mm
Weight	104326 g
Depth with door open	1450 mm
