13
WATER SUPPLY CONNECTION
To Connect Water Supply Line To Water
Inlet Valve
1. Disconnect the refrigerator from
electrical power source.
2. Place the end of the water supply
line into a sink or bucket. Turn ON
the water supply and flush the supply
line until the water is clear. Turn OFF
the water supply at the shuto valve.
3. Remove the plastic cap from the wa-
ter valve inlet and discard the cap.
4. If you use copper tubing - Slide the
brass compression nut, and then
the ferrule (sleeve) onto the water
supply line. Push the water supply
line into the water valve inlet as far
as it will go (¼"/6.4 mm). Slide the
ferrule (sleeve) into the valve inlet
and finger tighten the compression
nut onto the valve. Tighten another
half turn with a wrench; DO NOT
overtighten. See Figure 1.
If you use braided flexible stainless
steel tubing - The nut is already
assembled on the tubing. Slide the
nut onto the valve inlet and finger
tighten the nut onto valve. Tighten
another half turn with a wrench; DO
NOT overtighten. See Figure 2.

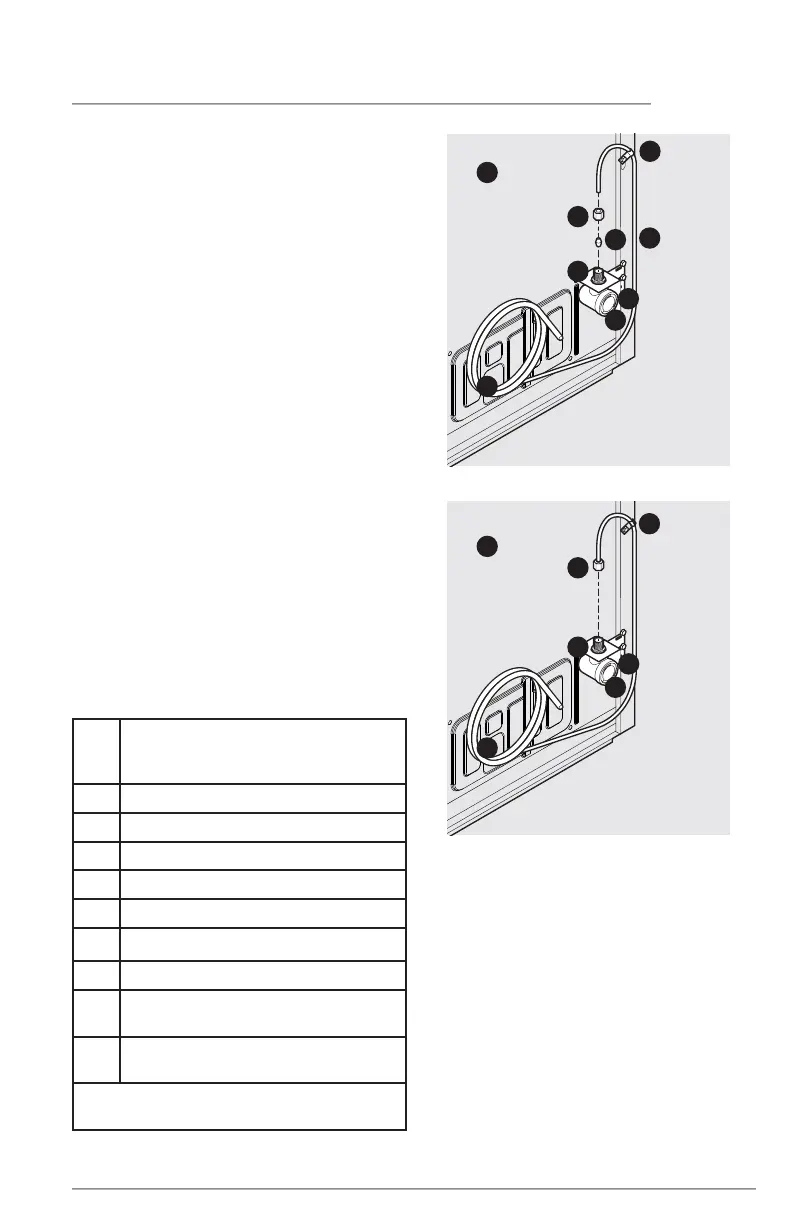

A Plastic Water Tubing to
Water Dispenser (foamed within
the cabinet)
B Steel Clamp (Fig. 1: ¼"; Fig. 2: ½")
C Brass Compression Nut
D Ferrule (Sleeve)
E Copper Water Line
F Water Valve Bracket
G Valve Inlet
H Water Valve
I Copper Water Line from
Household Water Supply*
J Braided Flexible Stainless Steel
Water Line
*Include enough tubing in the loop to allow
moving the refrigerator out for cleaning
Figure 1
A
B
C
D
E
F
G
H
I
Figure 2
A
C
G
F
H
J
B
