Removing the air conditioner From Window
Turn the air conditioner off, and disconnect power cord.
Remove sash seal from between windows, and unscrew sash lock.
Remove screws installed through frame and framelock.
Close (slide) side panels into frame.
Keeping a firm grip on air conditioner, raise sash and
carefully remove.
Be careful not to spill any condensate water while lifting
unit from window. Store parts WITH air conditioner.
FIG. 10
FIG. 11
FOAM SEAL
4

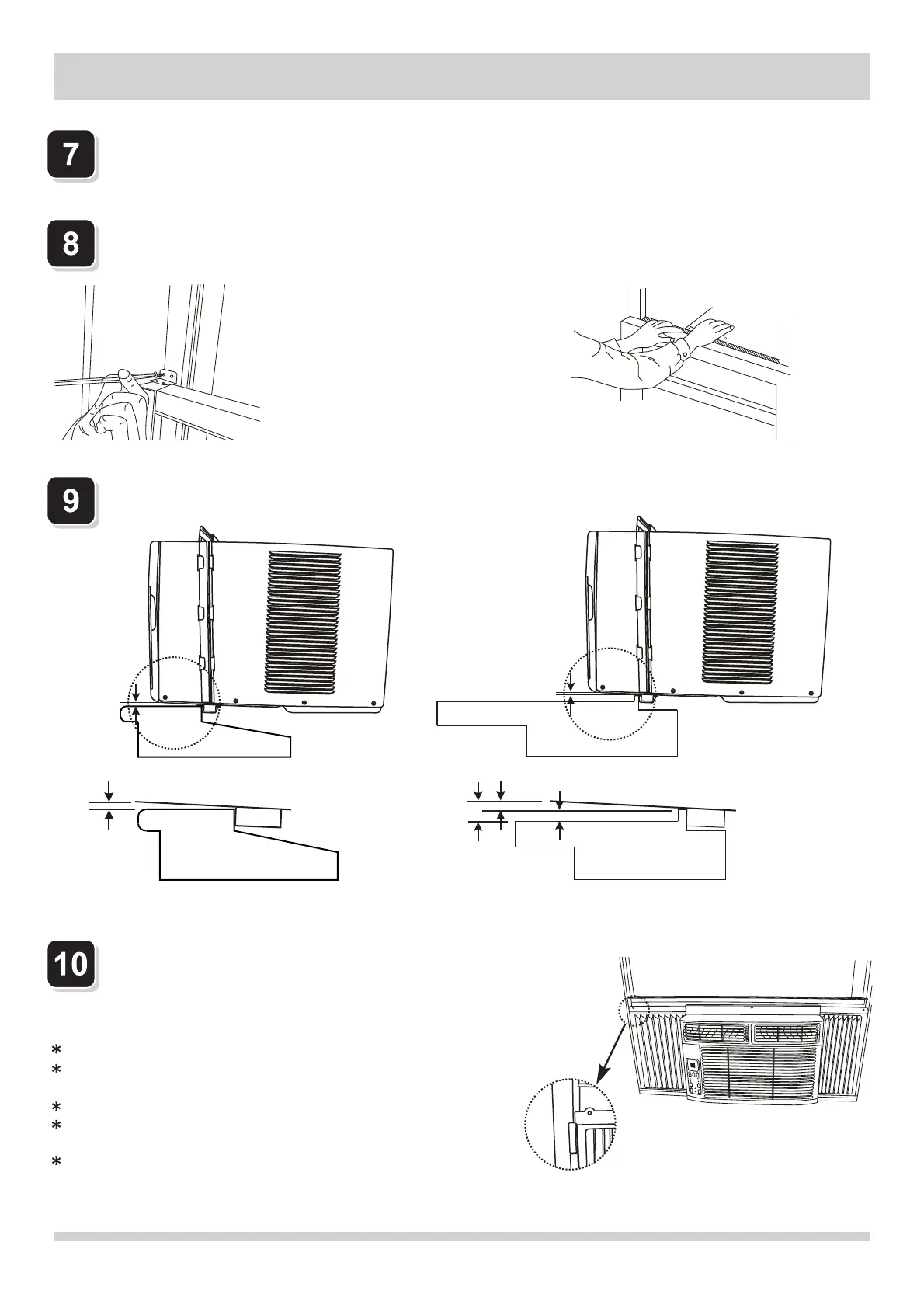

Installation
Cut foam window seal and insert it into the space between the upper and lower sashes (FIG. 11).
After the completion of the installation, please check the machine’s lean as shown (FIG. 12A & FIG. 12B). It’s
necessary for proper condensed water utilization and drainage.
FIG. 12BFIG. 12A
Wooden Window
INSIDE OUTSIDE
INSIDE OUTSIDE
DERXWƎaƎ
about
ƎaƎ
H
H
Bottom Rail
Vinyl-Clad Window
Bottom Rail
H1
H2
H=H1-H2
H
Trim the weather seal Ǝ;Ǝ;Ǝ with a proper length,
peel off the protective backing and plug any gaps if needed
DVVKRZQ),*
),*
7RVHFXUHORZHUVDVKLQSODFHDWWDFKULJKWDQJOHVDVKORFNZLWKƎPPVFUHZDVVKRZQ),*
NOTE: It is difficult to lock the windows with the sash lock for Vinyl-Clad windows, so you can use lock by
window itself.
