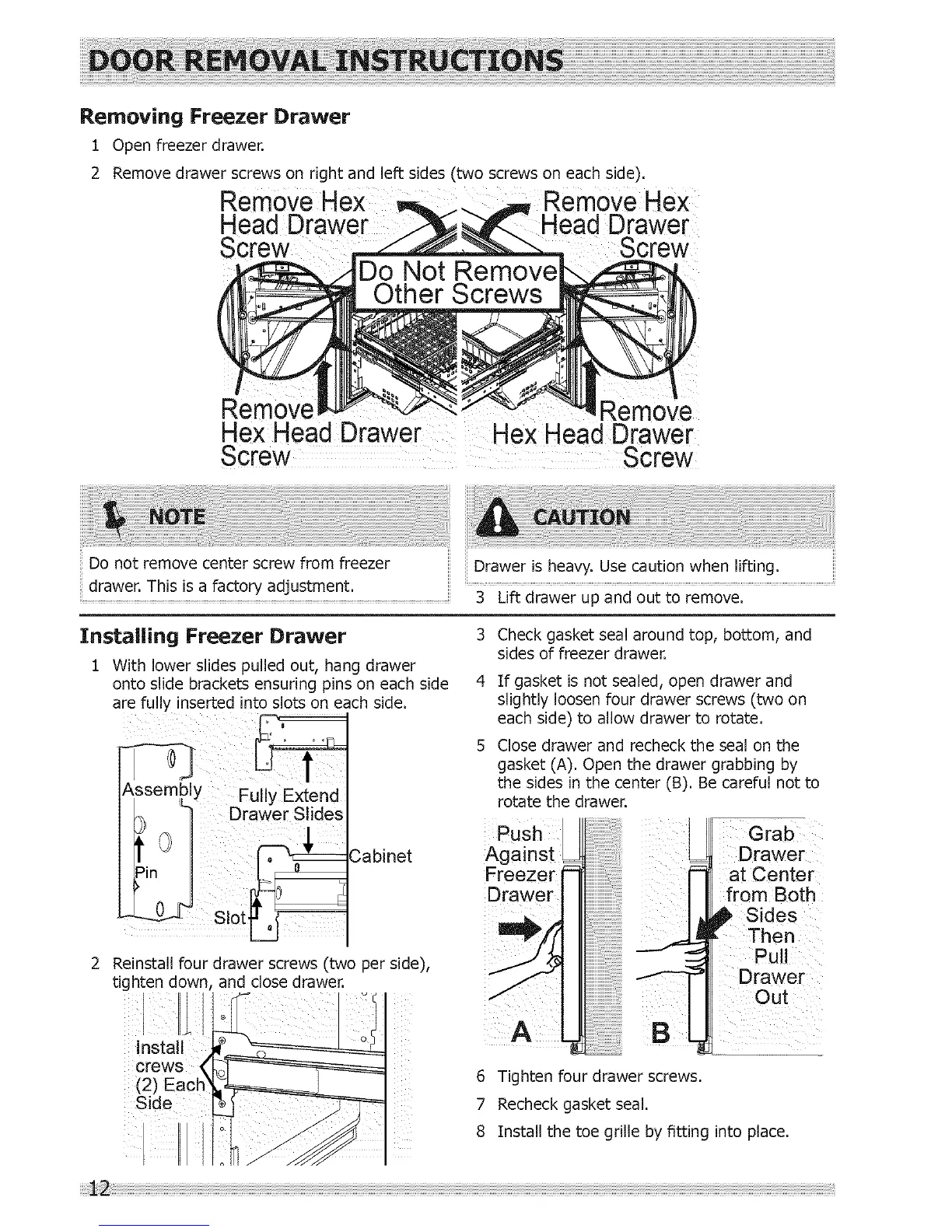

Removing Freezer Drawer
1 Open freezer drawer.
Remove drawer screws on right and left sides (two screws on each side).
Remove Hex i Remove Hex
HeadDrawer
Screw ;crew
Remove . [emove
Hex Head Drawer Hex Head Drawer
Screw Screw
Do not remove center screw from freezer Drawer is heavy. Use caution when lifting.
drawer. This is a factory adjustment. ....................................................................................................................................................................
.........................................................................................................................................................................................................................................................3 Lift drawer up and out to remove.
Installing Freezer Drawer
1 With lower slides pulled out, hang drawer
onto slide brackets ensuring pins on each side
are fully inserted into slots on each side.
Aisembly Fully Extend
Drawer Slides
in _ .Cabinet
slot_
2 Reinstall four drawer screws (two per side),
tighten down, and close drawer.
3 Check gasket seal around top, bottom, and
sides of freezer drawer.
4 If gasket is not sealed, open drawer and
slightly loosen four drawer screws (two on
each side) to allow drawer to rotate.
Close drawer and recheck the seal on the
gasket (A). Open the drawer grabbing by
the sides in the center (B). Be careful not to
rotate the drawer,
Push
Against
Freezer -
Drawer
A
Grab
Drawer
at Center
from Both
Sides
_" Then
Pull
Drawer
Out
6 Tighten four drawer screws.
7 Recheck gasket seal.
8 Install the toe grille by fitting into place.
