Frigoboat E52260 - CAREL IR32 V0 E000 Wiring and Connections; Thermostat Terminal Identification; Power and Probe Installation

CAREL IR32V0E000
NTC
PROBE
1
2 3
4 5 6 7 9 8
CAREL POWER
12÷24 Vac/Vdc
POWER
NTC1
COM
C
OUT 1
THERMOSTAT
CONTACT
CAREL IR32V0E000

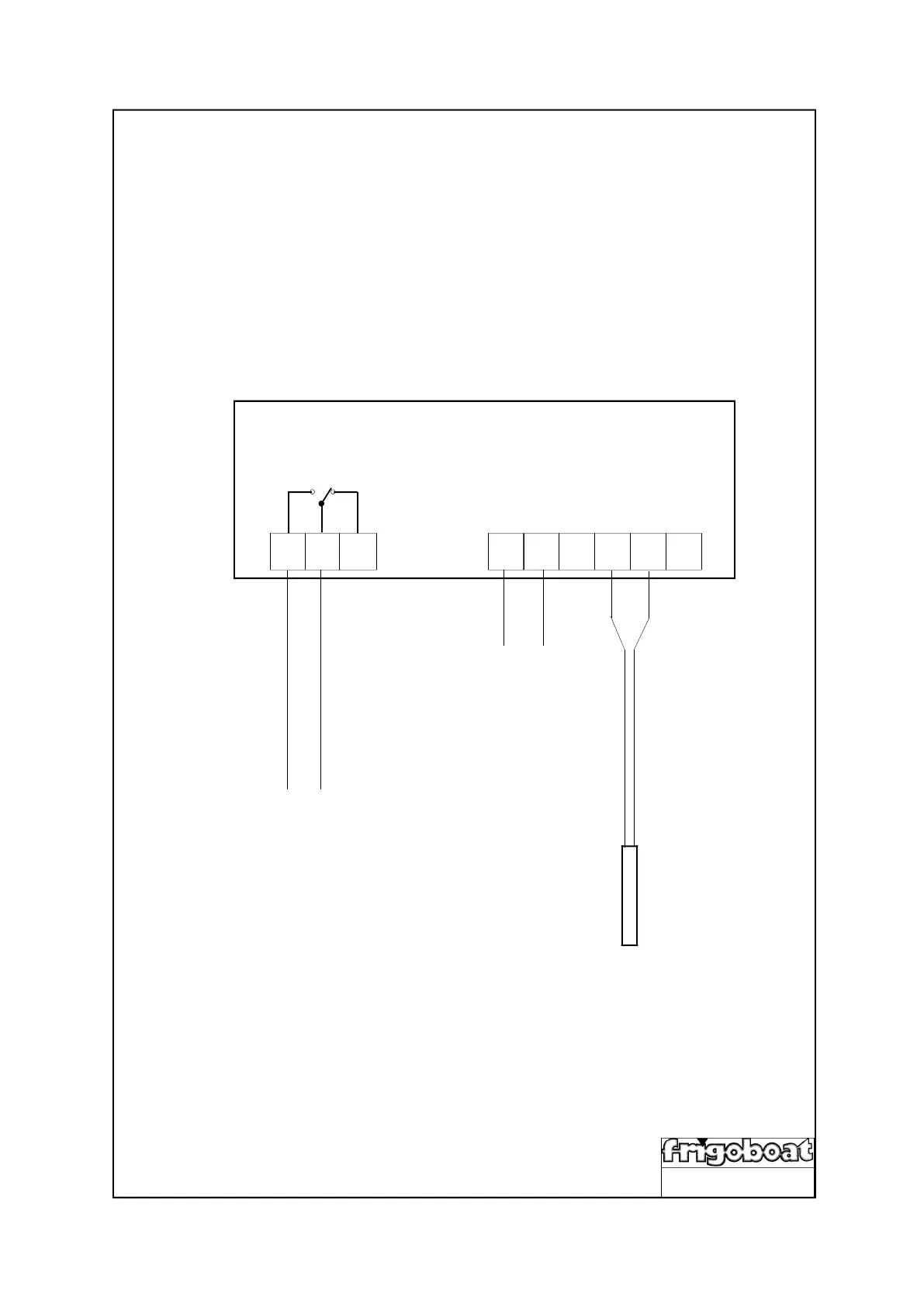

COLLEGAMENTI/ CONNECTIONS
R 1471 pag 2 01/08
