Frisco 309374 - Assembly Instructions Part 3; Top Panel Attachment; Door Lock Operation

9
10
STEP 10STEP 9
2
10
C
2
2
2
2
2
2
2
2
2
2
E
A
B
A

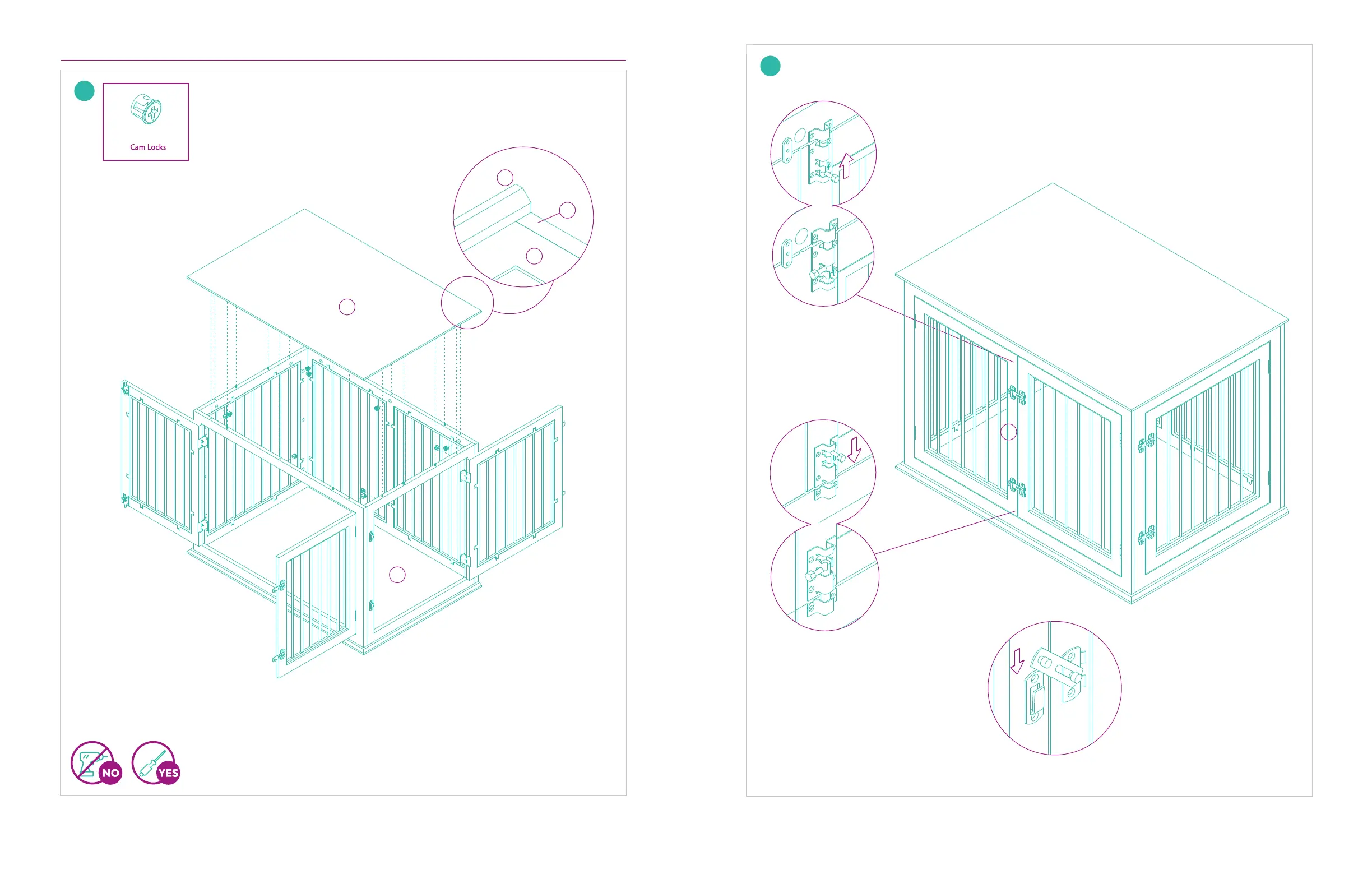

Attach the top panel (A) by guiding the cam lock bolts and wooden dowels into the corresponding holes on
the frame of the panels C, D, E and F. Open the doors, then insert and tighten the cam locks with a Phillips
head screwdriver. 
There are locks located on the inside of the crate at the top and bottom of the front door.
To operate, straighten the lock to move up and down and then close the lock by moving it into the lock position.
Simple straight, push and turn to lock.
42” -Two Door Wood & Metal Dog Crate
F
