7. ELECTRONIC BOARD OPERATION

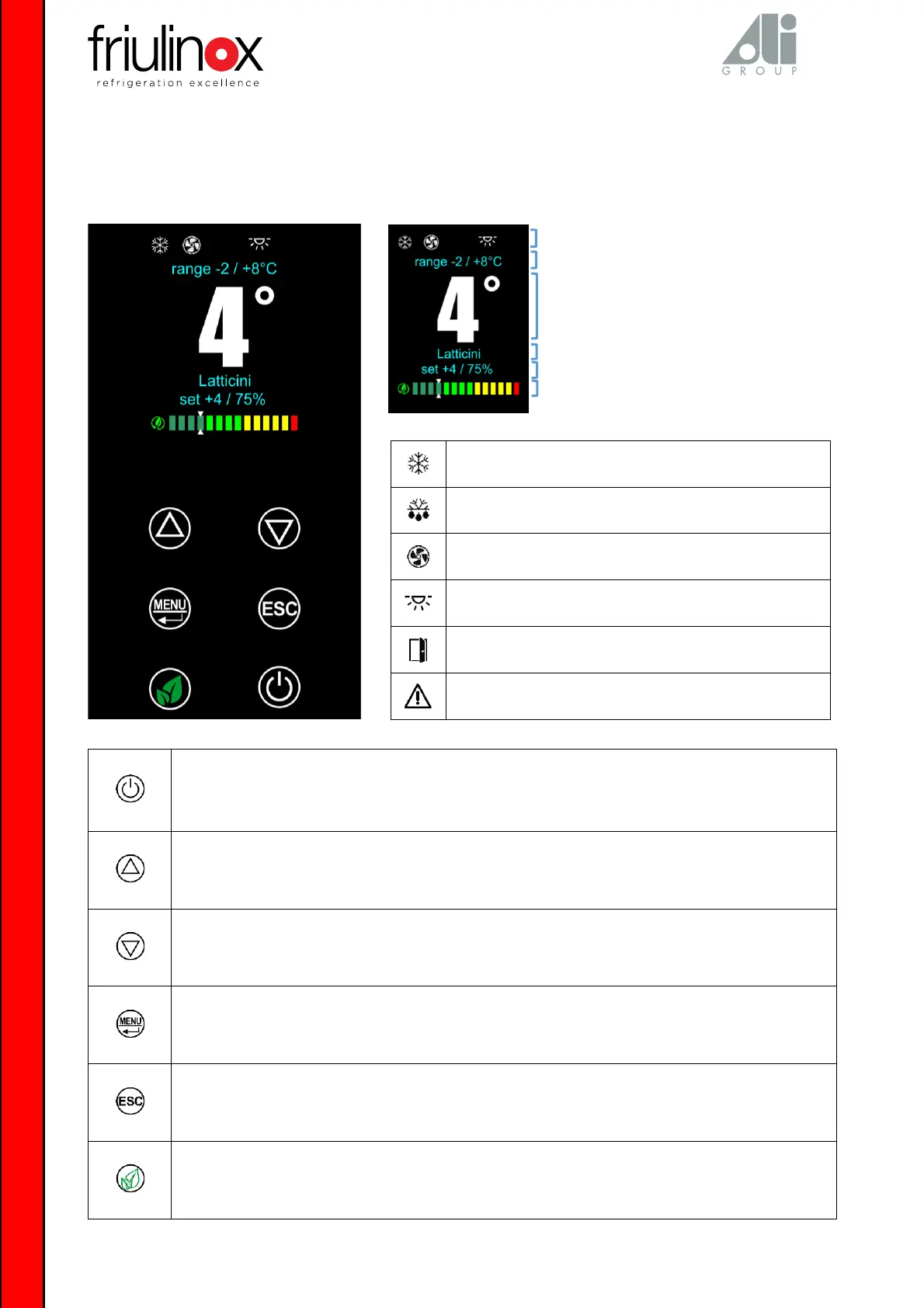

7.1. Board functions
equipment ON/OFF.
KEY UP Menu item scrolling and value increase. If no programme selected, it increases setpoint values.
KEY DOWN Menu item scrolling and value decrease. If no programme selected, it decreases setpoint values.
MENU/ENTER Main menu of controls or set value confirmation.
ESC Exit from menu or interruption without saving data.
ENERGY SAVING Access to energy saving menu.
COMPRESSOR If flashing, compressor protection in progress.
DEFROST If flashing, compressor protection in progress or
dripping in progress.
EVAPORATOR FAN If flashing, fan stop in progress.
CELL LIGHT ON If flashing, light automatically on.
DOOR OPEN
ALARM OR ERROR IN PROGRESS
Operating range
Cabinet temperature
Selected mode
Temperature setpoint/Humidity
setpoint
Energy Saving Bar
OPERATING STATUS ICONS
Operation status
