Service Manual
4. EXPLANATION OF THE ELECTRONIC BOARD

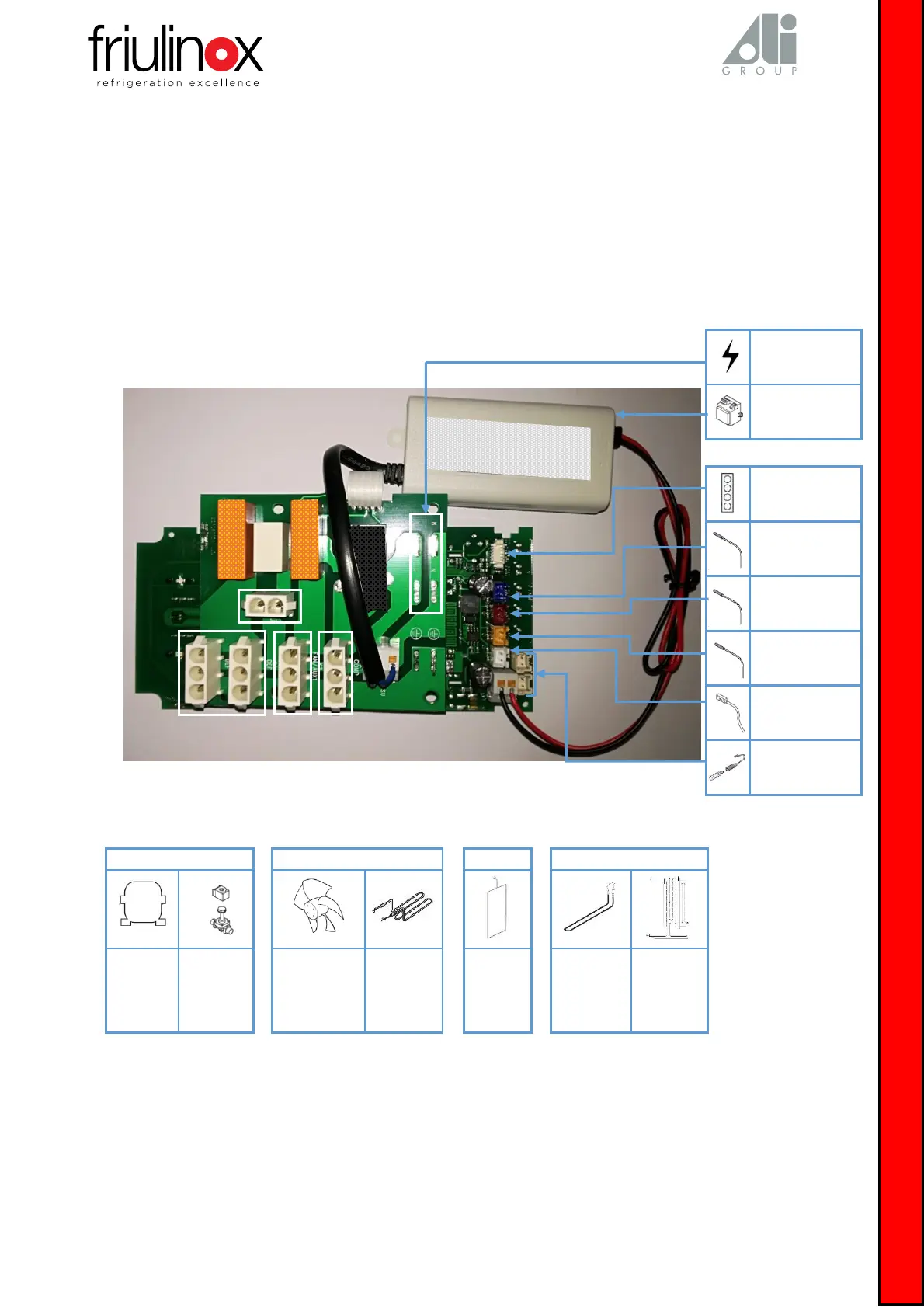

4.1. 700 litre HACCP BASIC cabinet board code BN1681210
Temperature range:
0 ÷ +10°C / -2 ÷ +8°C / -25 ÷ -15°C / -22 ÷ -18°C / -20 ÷ -15°C / -6 ÷ +4°C
Power supply
(230V)
Transformer
(T1)
Serial port
NTC probe thermostat
NTC probe defrosting
NTC probe condenser
Microswitch
(ID1)
Glass doors/cell light
(E1)
K1
K2
K3
K4
Compressor
control
(M1)
Liquid
solenoid valve
(Q2)
Fan
evaporator
(M3)
Condensate
evaporation
trayl heater
(E3- optional
for remote
unit)
Frame
heater
(E4)
Defrosting
heater (E2)
Condensate
drain heater
(E8)
K1
K4
K3
K2
