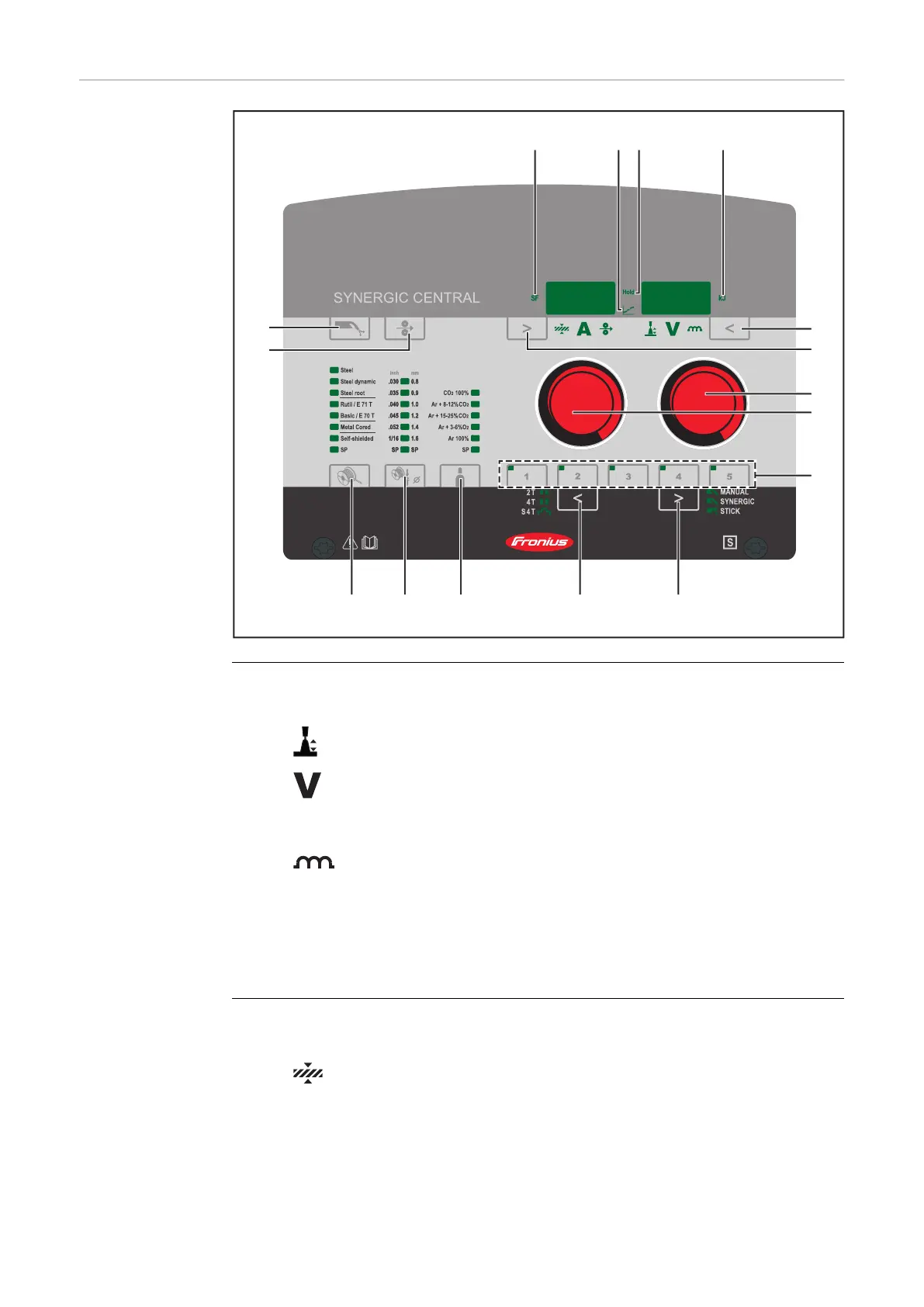

Synergic control
panel
(1)
(2)
(3)
(4)
(5)
(6)(7)
(14)(13)
(12)
(11)
(10) (8)
(9)
(15) (16)
(1) "Parameter selection" button (right)
a) for selecting the following welding parameters
Arc length correction
for correcting the arc length
Welding voltage in V *)
Before the start of welding, the device automatically displays a
standard value based on the programmed parameters. During
welding, the actual value is displayed.
Arc-force dynamic
for influencing the short-circuiting dynamic at the moment of
droplet transfer
- ... harder, more stable arc
0 ... neutral arc
+ ... soft, low-spatter arc
b) for changing parameters in the Setup menu
(2) "Parameter selection" button (left)
a) for selecting the following welding parameters
Sheet thickness
Sheet thickness in mm or in.
If the welding current to be selected is not known, it is sufficient
to enter the sheet thickness. The required welding current and
any other parameters marked with *) will then be adjusted auto-
matically.
32
