Setup menu
General remarks The Setup menu provides simple access to expert knowledge in the power source
and to additional functions. The Setup menu can be used to make simple adjust-
ments of the parameters to suit the various job settings.
Operation Access to the setup menu is described based on the MIG/MAG standard synergic
welding process.
Access is the same for the other welding processes.

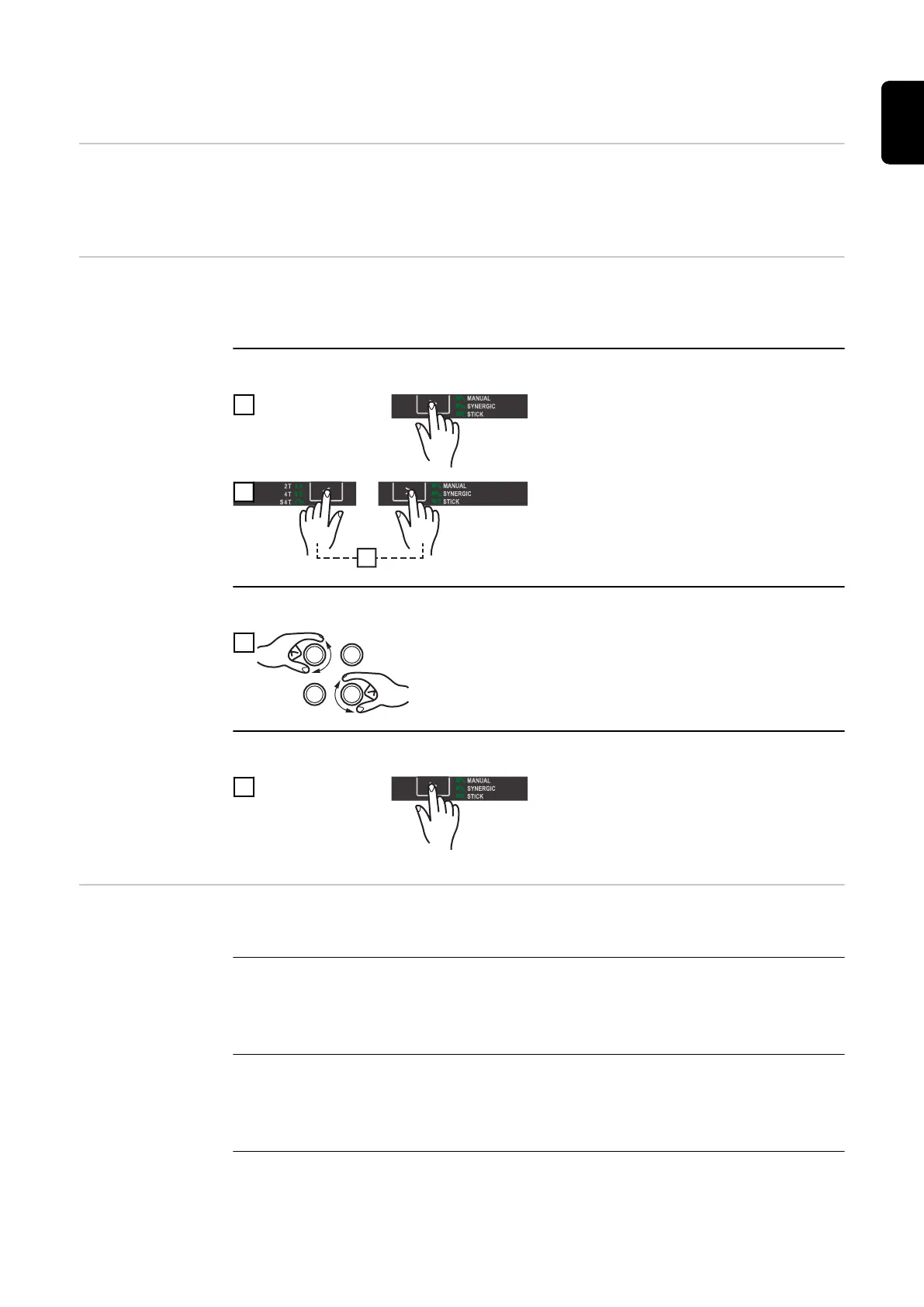

Accessing the Setup menu
1
Use the "Process" button to select the
"MIG/MAG standard synergic welding"
process
2
The control panel is now in the Setup
menu for the "MIG/MAG standard syn-
ergic welding" process - the last setup
parameter that was selected is dis-
played.
Changing welding parameters
1
Select the desired setup parameter us-
ing the left-hand adjusting dial
Alter the setup parameter value using
the right-hand adjusting dial
Exiting the Setup menu
1
Setup paramet-
ers for
MIG/MAG
standard manual
welding
"Min." and "max." are used for setting ranges that differ according to power
source, welding program, etc.
GPr Gas pre-flow time
Unit: s
Setting range: 0 - 9.9
Factory setting: 0.1
GPo Gas post-flow time
Unit: s
Setting range: 0 - 9.9
Factory setting: 0.5
Fdi Feeder inching speed
Unit: m/min (ipm)
93
EN
