IMPORTANT: PRIOR TO USING TILT FEATURE.
To avoid personal injury or damage to the umbrella, make sure the area behind you is clear
and free from any furniture or structure.
To Tilt Canopy Vertically:
• Turn adjustment knob counter clockwise and slide car upward or downward until desired
tilt degree of shade is reached (Fig. 13).
• Tighten knob by turning clockwise to secure in place.
WARNING:
• Make sure tilt is secure in track. Do not tilt umbrella past the track.
• Keep hands free of main frame while adjusting tilt up and down.
• Do not use tilt functions during winds. Doing so may cause damage to your umbrella.

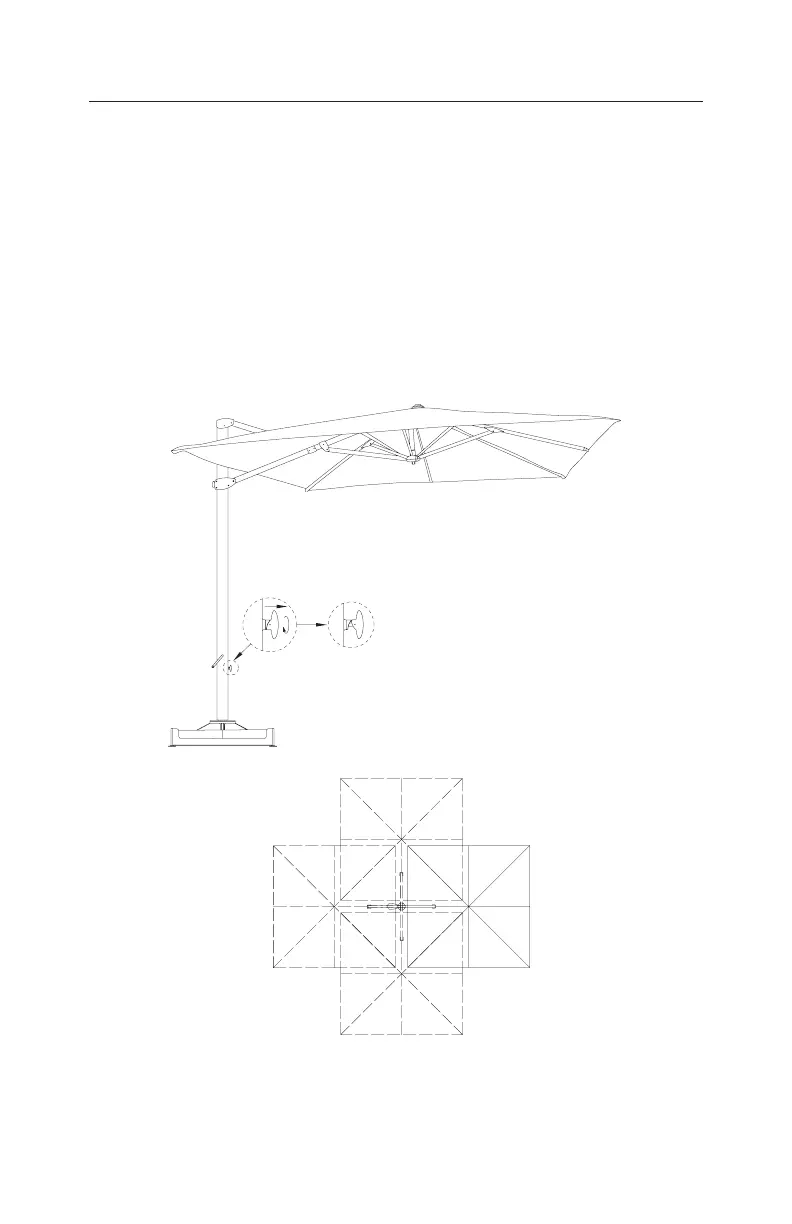

(Fig. 13)
STEP 4 Tilting Umbrella
(Fig. 14)
IMPORTANT: PRIOR TO USING ROTATING FEATURE.
To avoid personal injury or damage to the umbrella, make sure the area behind you is clear
and free from any furniture or structure.
• There are (12) 30° locking rotating positions. Pull and quarter turn rotation knob counter
clockwise (Fig. 14).
• Rotate umbrella to one of the 12 preset positions. Turn rotation knob clockwise to secure
in place (Fig. 15).
WARNING:
• Do not use rotating function during winds. Doing so may cause damage to your umbrella.
STEP 5 Rotating Umbrella
(Fig. 15)
