MODELS:FS-GT2
6
Digital propotional radio control system
Http://www.flysky-cn.com
Receiver接收机
Servo伺服器
CH1
CH2
8.Receiver connectivity
SPC调速器
SWITCH
BATTERY电池
MOTOR马达

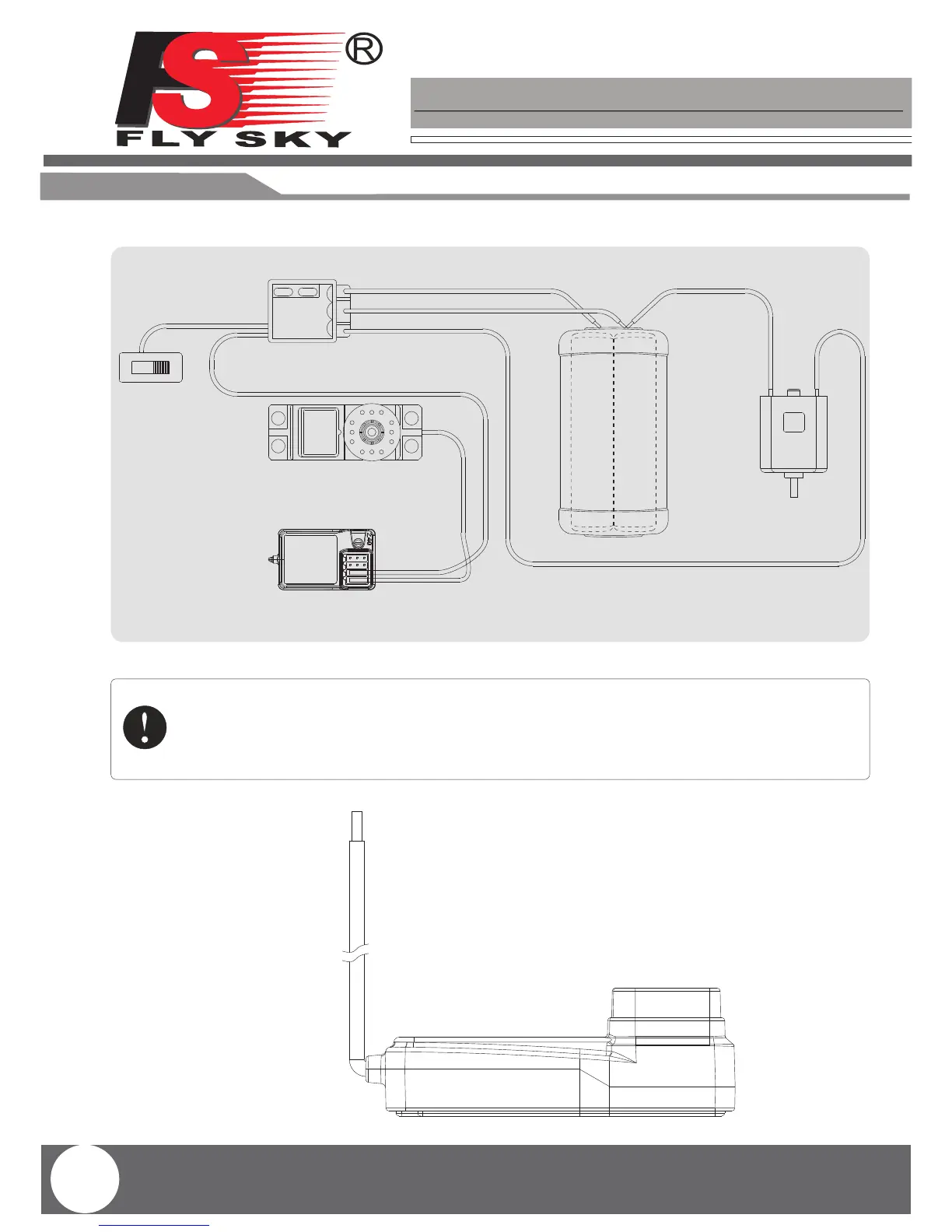

8.01 INSTALLATION WHEN A MOTOR CONTROLLER IS USED
带马达模型的安装连接
注：在安装接收机时请将接收机天线与水平面垂直放置！且天线尽可能不要靠近金
属物！因为这样接收灵敏度最高。(如图1）
开关
Remark:Place the antenna of the receiver vertically with the plane!
And don't let it close to the metal thing for assuring its sensitivity.(See pic1)
Receiver
ANT
Figure 1
(图1)
