FSN FM-C5501DV - On Screen Display (OSD) Menus - FM-C5501 DV, FM-D5801 DV, FM-D5802 DV; Color Adjustment and Temperature Menu Submenus; Other Settings Menu Submenus

22
8/2021
Submenus under the COLOR TEMPERATURE menu
1. COLOR TEMP Changes the image color setting. (C1, C2, C3, USER)
2. RED Red balance. (Only works with USER mode) (Range : 0~100)
3. GREEN Green balance. (Only works with USER mode) (Range : 0~100)
4. BLUE Blue balance. (Only works with USER mode) (Range : 0~100)
Submenus under the OTHER SETTING menu
1. ASPECT RATIO Changes aspect ratio of the displayed image. (Full, Auto, Fill-H)
2. FREEZE Keeps the image still.
3. POWER ON DC5V Enables or disables the DC5V output.
4. OVER SCAN Adjusts the displayed size. (0~6)
5. DUAL DVI SOURCE or SDI SOURCE SELECT
FM-C5501DV, FM-D5801DV: Select Dual-link DVI input source. (DVI-1, DVI-2, Dual)
Note: SDI-QUAD or SDI-2SI will support 4K quadrant and 2-sample interleave division when using SDI-1
through SDI-4 input signal connectors.
Main Menu
Categories
Sub Menu
Categories
Sub Menu Value or
Setting
Video Source
Information

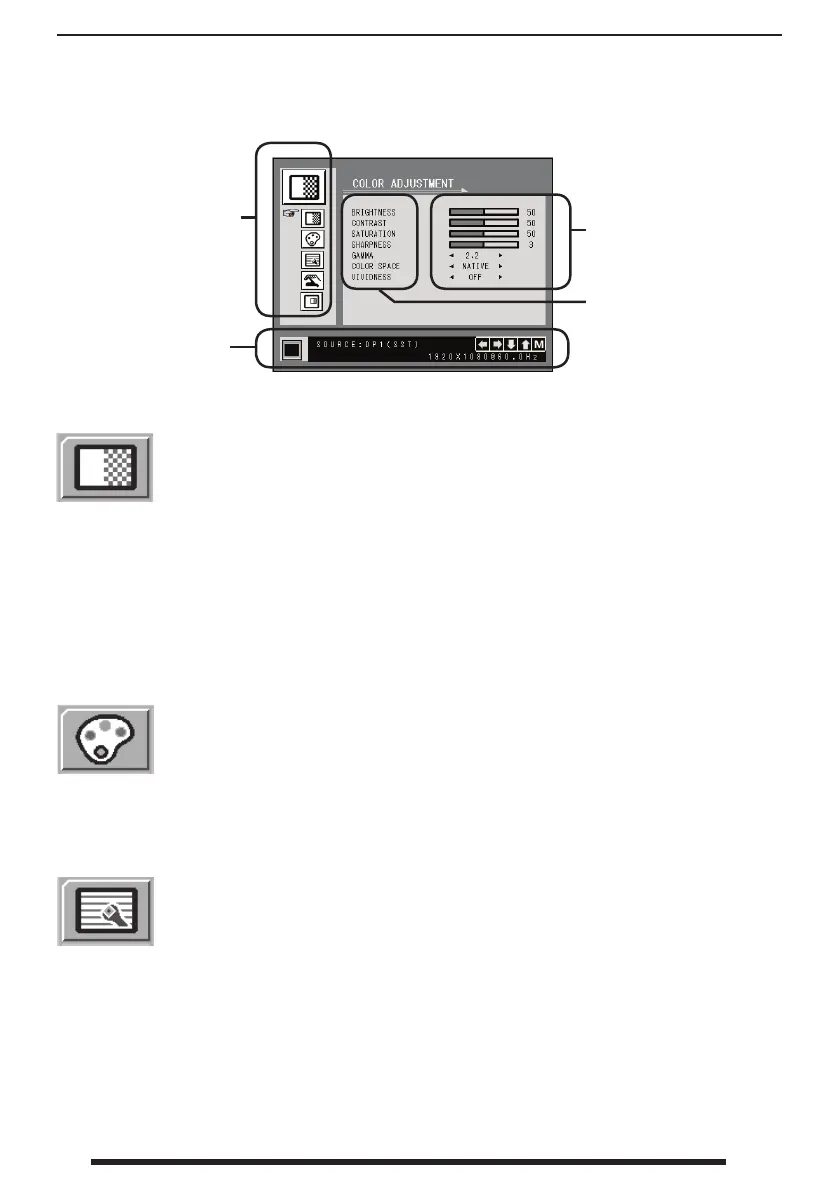

Submenus under the COLOR ADJUSTMENT menu
1. BRIGHTNESS Increases or decrease the brightness. (Range : 0~100)
2. CONTRAST Increases or decreases the contrast. (Range : 0~100)
3. SATURATION Increases or decreases the saturation. (Range : 0~100)
4. SHARPNESS Increases or decreases the sharpness. (Range : 0~4)
5. GAMMA Select the appropriate gamma. (BYPASS,1.8, 2.0, 2.2, 2.4, 2.6, DICOM). Gamma cannot be
changed when color space is sRGB.
6. COLOR SPACE (FM-D5801DV, FM-D5802DV) Select the color space. (sRGB or NATIVE). Gamma cannot
be changed when color space is sRGB.
7. VIVIDNESS
Sets image vividness. (O , Low, Mid, High) Enhances image quality with minimal arti cial e ects.
On Screen Display (OSD) Menus
FM-C5501DV, FM-D5801DV, FM-D5802DV
