3rd block parameter
[Setting example] Hiding the integral time [i] and the derivative time [d] ––––––––
<Preparations>
Check the mask DSP of the parameter(s) you want to hide.
(the mask DSP of the integral time [i] is “dSP3-4,” the mask DSP of the derivative time [d] is “dSP3-4.”
If you want to hide multiple parameters of the same code, calculate the hexadecimal number of the
total integer.

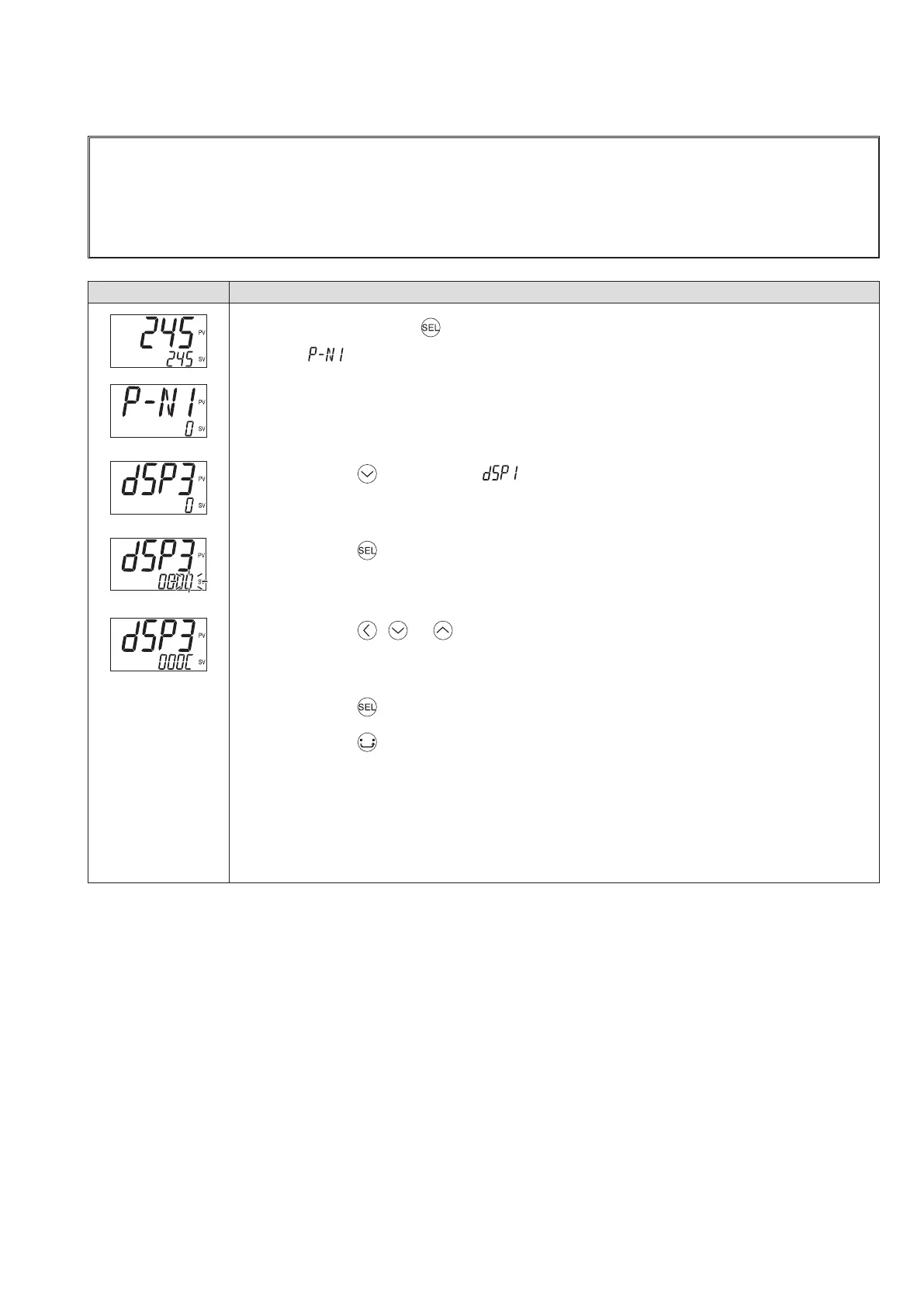

Display Operating procedure
1.
Press and hold the key for about ve seconds during the SV/PV display.
appears.
2.
Press the key to display .
3.
Press the key.
The setpoint starts blinking.
4.
Press the , or keys to change “ 0000 ” to “ 000C .”
5.
Press the key or wait for three seconds to save the change.
6.
Press the key.
The screen returns to the SV/PV display.
The integral time [i] and the derivative time [d] are hidden.
If you want to reshow the derivative time [d], carry out the steps 1 to 3, and then change
the setpoint from “ 000C ” to “ 0004 .”
