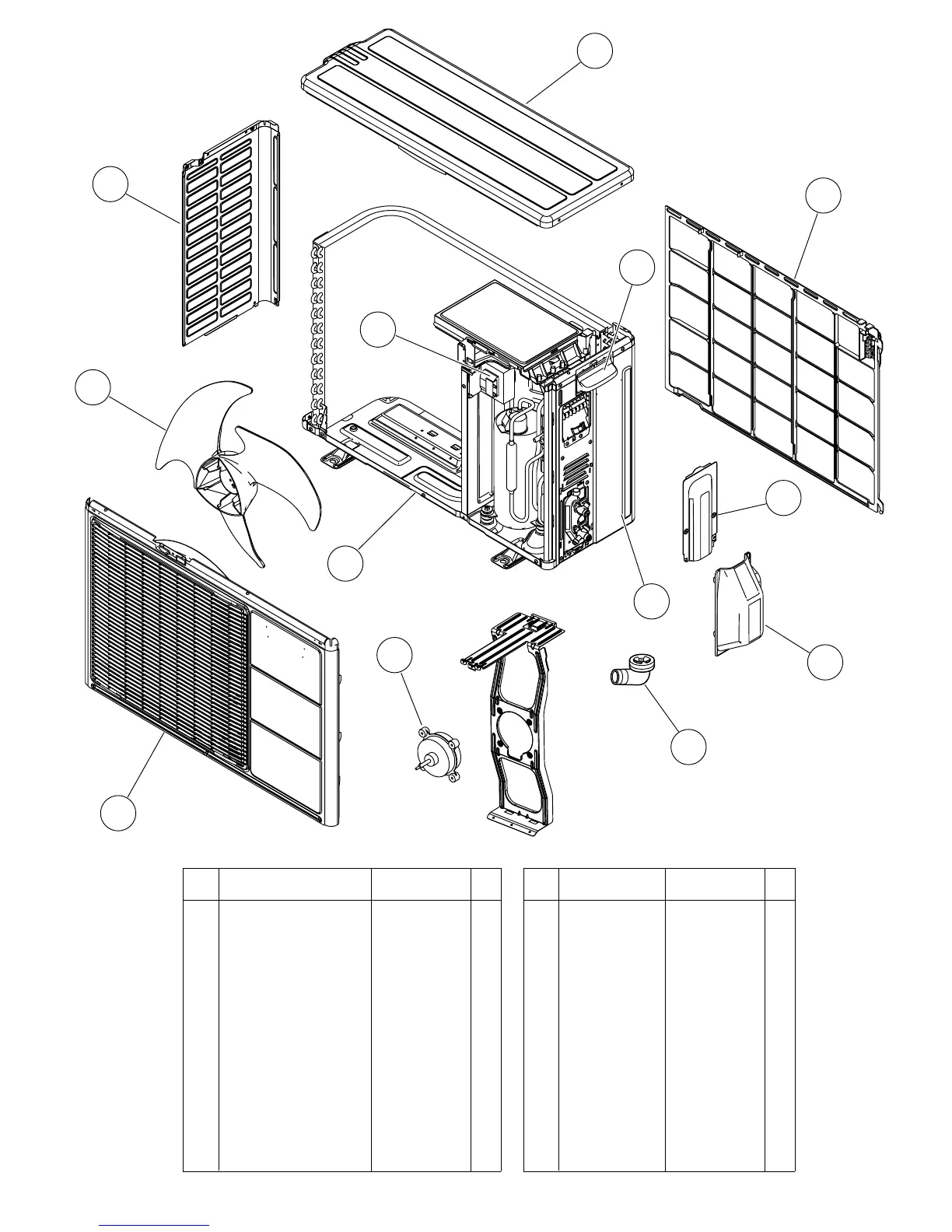

PARTS
OUTDOOR UNIT
2013.04.02 17
2 Top Panel Assy 9317761055
3 Front Panel Assy 9317760041
1 Protective Net 9313941055
4
6
Cabinet Left 9318247008
Switch Cover A Assy 9317795005
8 Grip 9317588003
7 Switch Cover B 9317582001
5 Cabinet Right Assy 9317759021
Ref. Description Part number
-- Emblem 9319158006
9 Reactor Assy 9900788018
11 Propeller Fan 9313808013
12 Base Assy 9316885028
13 Drain Assy 9303029022
10 Fan Motor 9602864003
Ref. Description Part number
13
6
To Next Page
