Installing the Storage
253
4

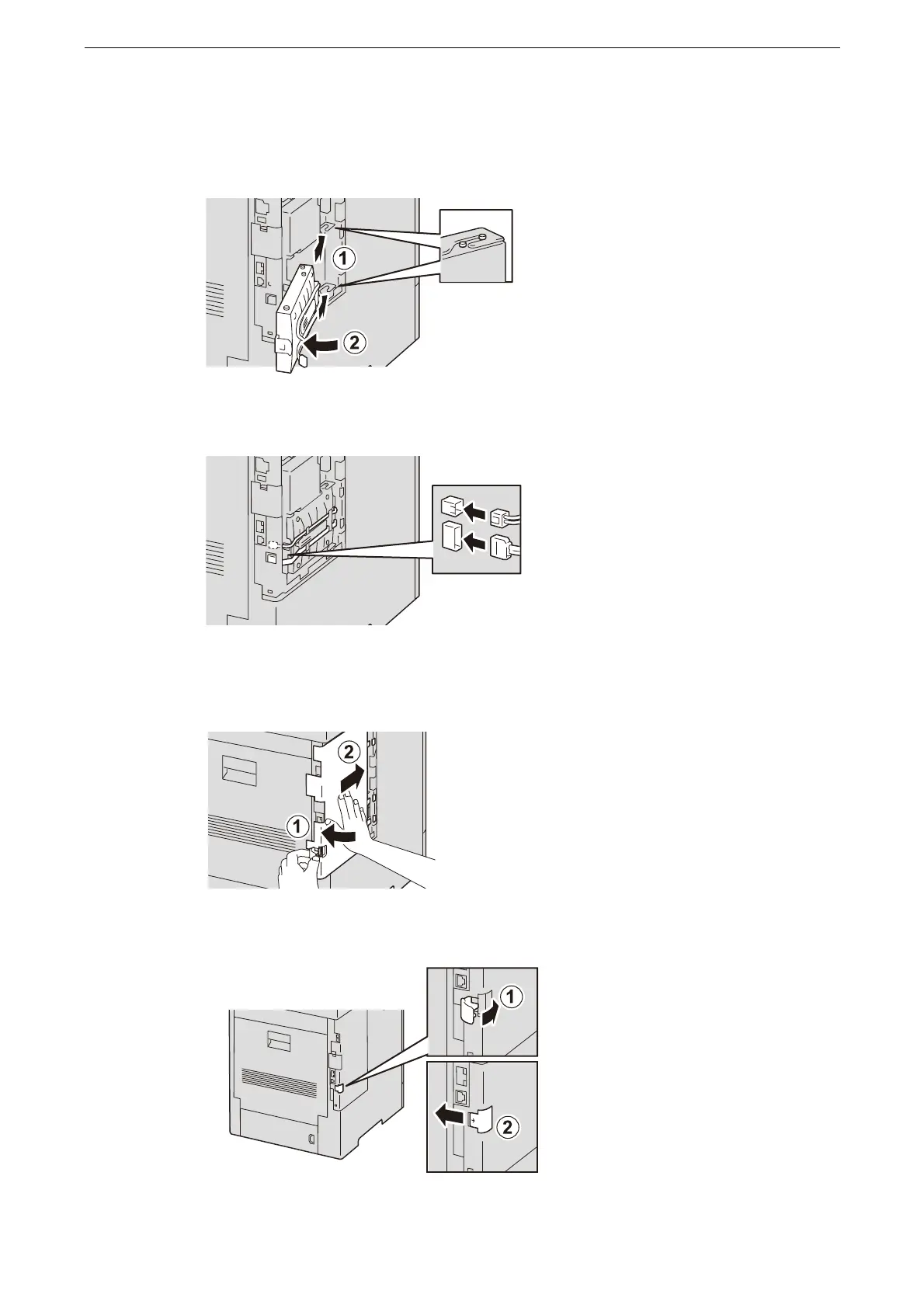

With the connector cable coming out of the storage (optional) on the outside, insert it into
the frame on the controller board.
Fit the protruding section of the storage (optional) correctly into the indentation in the
frame.
5
Connect the storage (optional) connector cable to the connector on the controller board.
6
Slide the cover on the left side toward the front of the device, and insert the protrusion into
the hole on the main unit.
7
Tilt the latch forward, then slide it to the left to lock the cover.
