Replacing Consumables
73
Maintenance
3

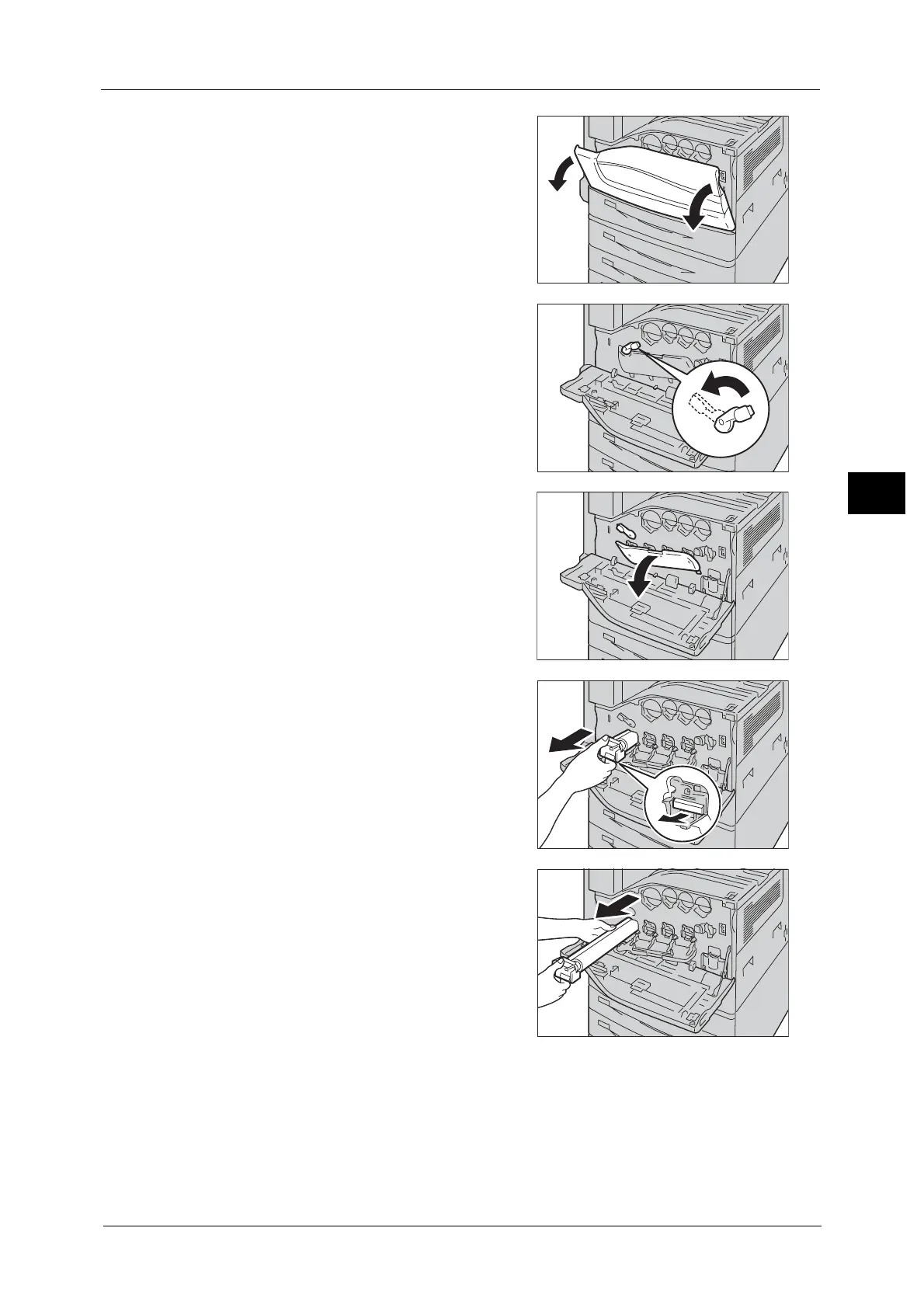

1 Make sure that the machine is not operating,
and open the front cover.
2 Rotate the release lever of the drum cartridge
cover counterclockwise.
3 Lower the cover.
Note • The drum cartridge is unlocked.
4 Grasp the handle of the drum cartridge
indicated in the message (R1, R2, R3, or R4)
and gently slide out the cartridge.
Important •When removing the drum cartridge, be
careful not to drop it on the floor.
Note • This section explains how to replace the drum
cartridge R1, as an example.
5 Hold the bottom of the drum cartridge as
shown in the illustration, and pull it out from
the machine.
Note • Be careful not to touch the toner attached to
the cartridge.
6 Take the new drum cartridge out of the box, and insert the used drum cartridge into the
supplied plastic bag and place it into the box.
Important •Do not place the new drum cartridge in an upright position.
• Return the old drum cartridge to our Customer Support Center.
To Next Page
