Machine Components
45
Product Overview
2

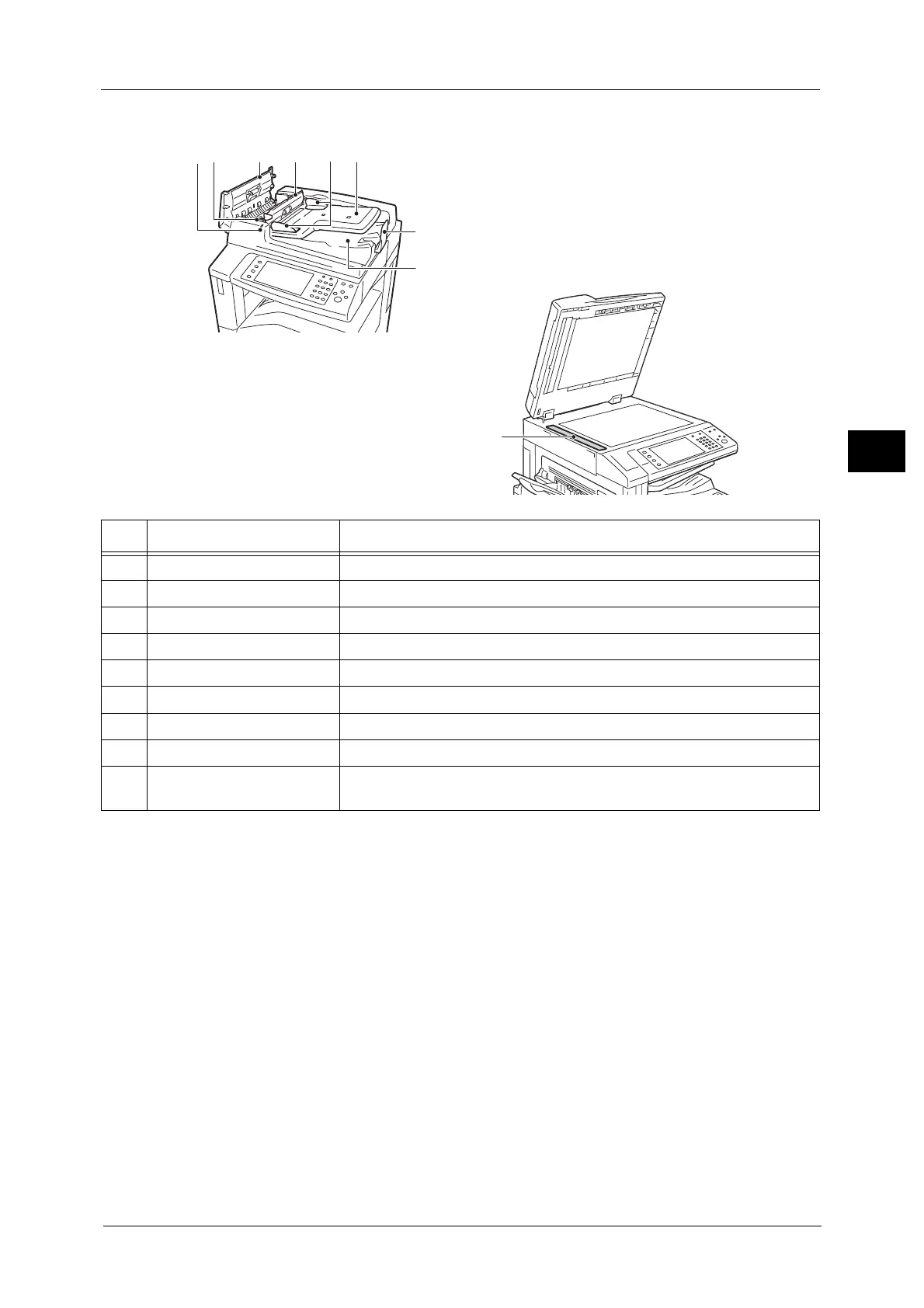

Duplex Automatic Document Feeder B1-C (optional)
Note • In this guide, "document feeder" means both the Duplex Automatic Document Feeder B1-C
(optional) and the Duplex Automatic Document Feeder B1-PC (optional) unless expressly restricted
to one of them.
8
12 3
5
6
4
7
No. Component Function
1 Confirmation indicator Lights up when a document is loaded correctly.
2 Lever Turn this lever to clear paper jams.
3 Left cover Open this cover to clear paper jams.
4 Inner cover Open this cover to clear paper jams.
5 Document guides Use these guides to align the edges of documents.
6 Document feeder tray Load documents here.
7 Document output tray Scanned documents are delivered here.
8 Document stopper Prevents outputs from falling off.
9 Constant velocity transport
glass
Scans a loaded document.
To Next Page
