Fuji Xerox DocuPrint CM305 df Service Manual

4 - 270
Chapter 4 Disassembly / Assembly and Adjustments

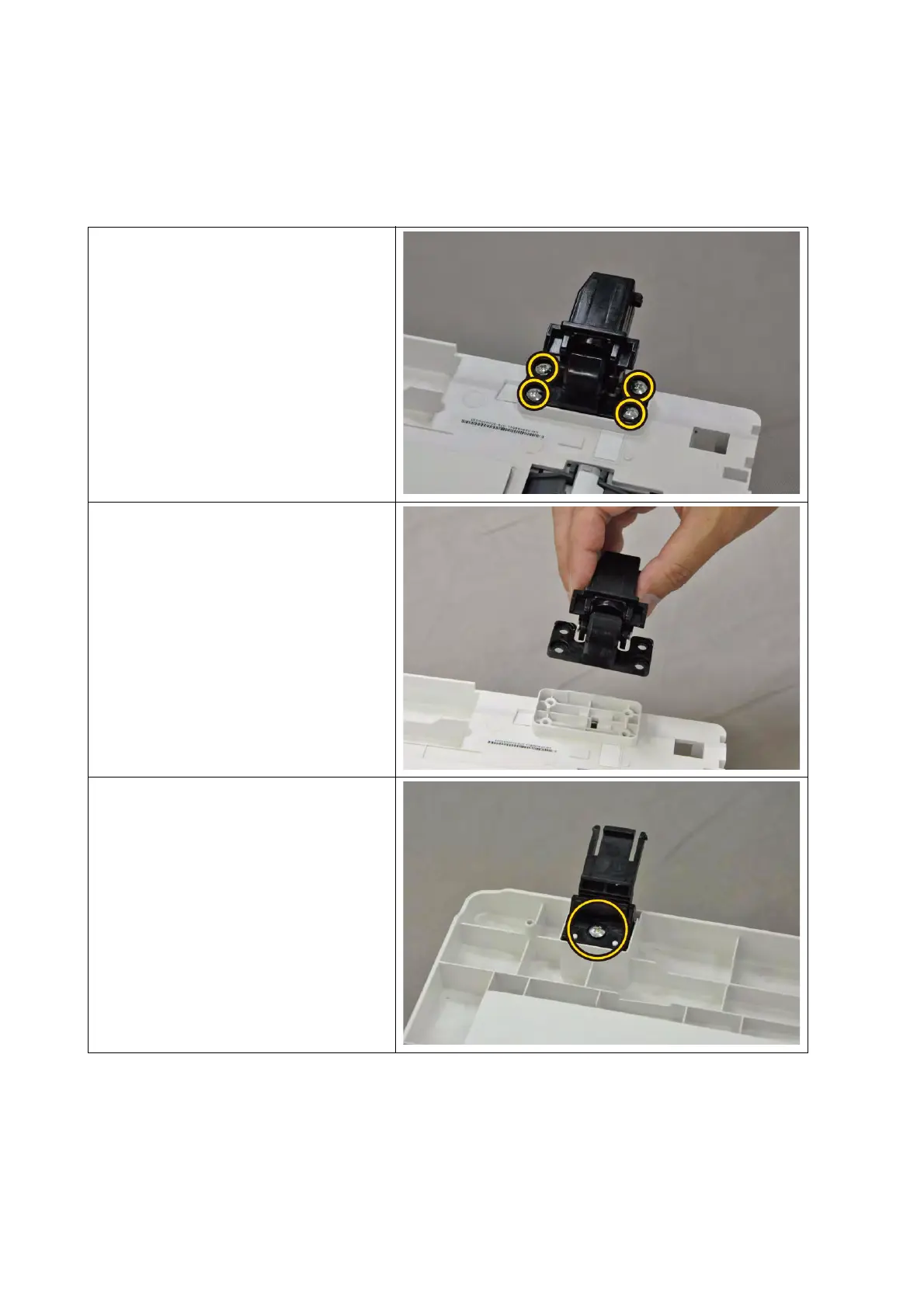

REP9.4 KIT COUNTER BALANCE L (PL10.1.9), COUNTER BALANCE R (PL10.1.10)
[Removal]
1) Remove the TRAY ASSY. (REP9.3)
2) Remove the ADF ASSY. (REP9.1)
3) Remove the four screws (silver, tap,
8mm) that fix the COUNTER BAL-
ANCE L (PL10.1.9) to the ADF
ASSY.
4) Remove the COUNTER BALANCE
L from the ADF ASSY.
5) Remove the one screw (silver, tap,
8mm) that fixes the COUNTER
BALANCE R (PL10.1.10) to the
ADF ASSY.
