Fuji Xerox DocuPrint CM305 df Service Manual

4 - 290
Chapter 4 Disassembly / Assembly and Adjustments
REP10.2 ROLLER ASSY DUP (PL11.2.9) [Duplex Model Only]
[Removal]
1) Open the COVER ASSY FRONT (PL1.2.1).
2) Remove the FEEDER ASSY DUP AIO STD. (REP10.1)

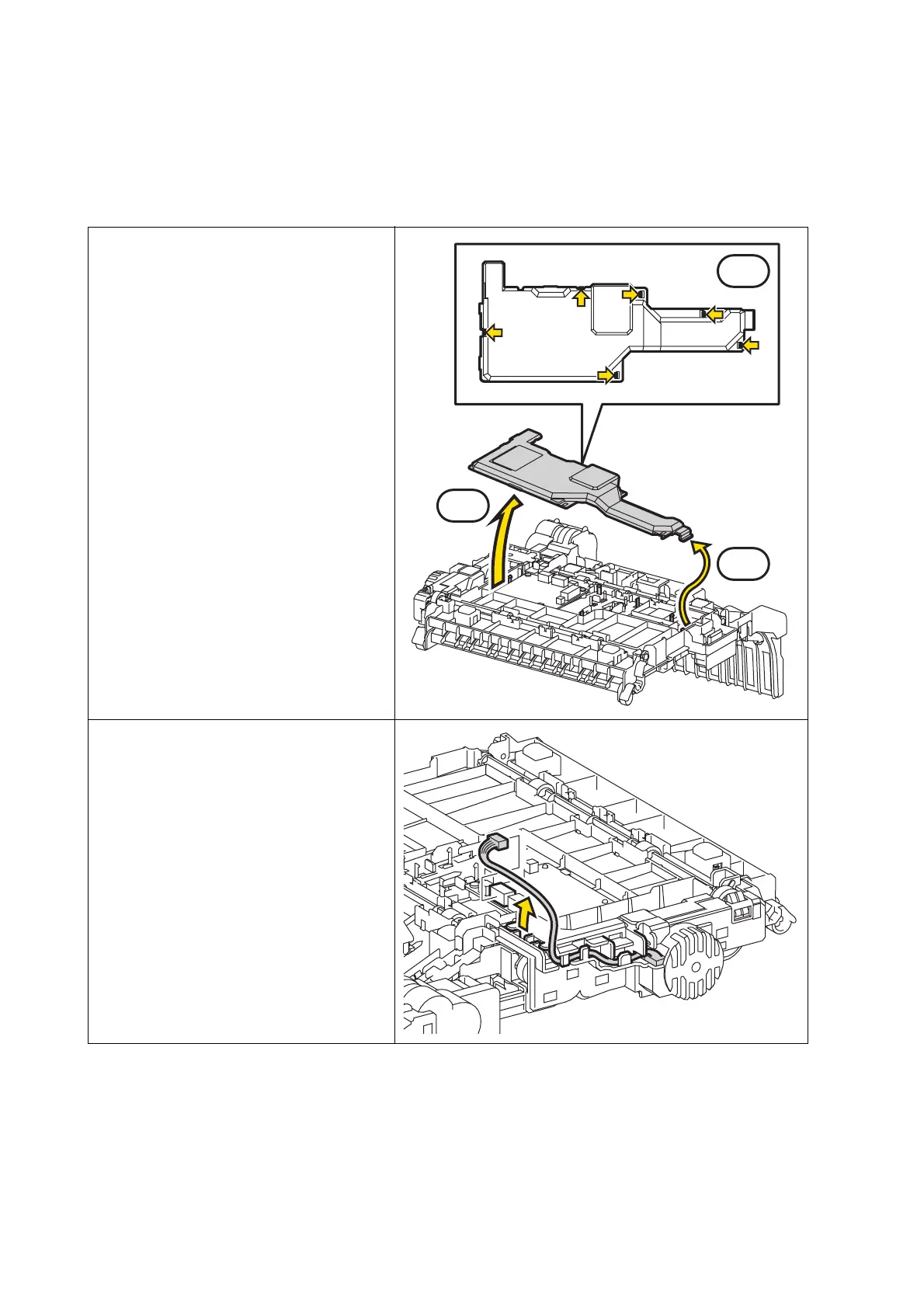

3) Release the six hooks that fixes the
COVER PWBA DUP (PL11.1.15),
remove the COVER PWBA DUP
from the FEEDER ASSY DUP AIO
STD (PL11.1.1).
4) Disengage the connector (P/J603) of
the DRIVE ASSY DUP (PL11.2.5)
on the PWBA DUP (PL11.1.16),
release the harness of the DRIVE
ASSY DUP from the hooks of the
COVER DRIVE DUP (PL11.2.3).
3.1
3.2
3.3
