6 – 104
Chapter 6 General
Sub Motor (FULL2/FULL1/HALF)
1) Power on the printer, and enter the Diag Mode.
2) Execute the Sub Motor (FULL2,FULL1 or HALF).
3) Check that the Exit Roll rotates.
4) Press the "STOP" key to stop the test.
K Mode SOLENOID (Auto OFF)
NOTE: This procedure is for the Customer.
Since the solenoid noise is so soft that it may be hard to recognize, the noise
check described below should be performed in as silent an environment as
possible.
1) Power on the printer, and enter the Diag Mode.
2) Execute DO-a. Upon pressing the "" key, the operating noise
of the solenoid will be heard.
3) Press the "Cancel" key to stop the solenoid.
NOTE: This procedure is for the technical staff.
When performing operation for five minutes or longer with the front cover
open, remove the PHD ASSY, and cover the drum to avoid exposure to light.
1) Remove the DRIVE ASSY PH.
2) Cheat the safety Interlock System.
3) Power on the printer, and enter the Diag Mode.
4) Execute the K Mode SOLENOID (Auto OFF).
5) Check the K Mode Solenoid movement.
6) Press the "STOP" key to stop the test.
7) Remove the cheater.
8) Replace the KIT DRIVE ASSY PH.

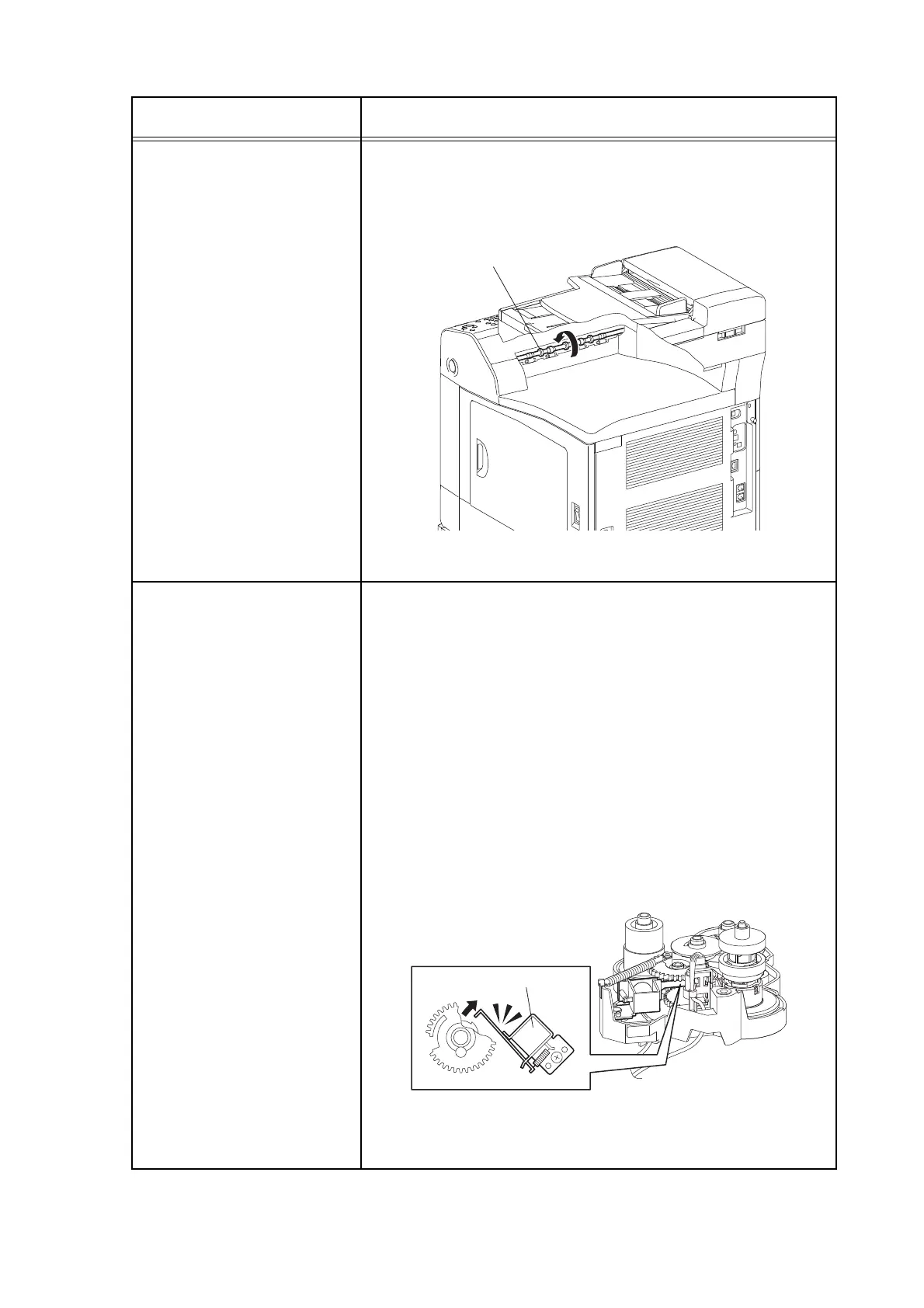

Motor/Clutch/Solenoid Name
(Diag. Code)
Check procedure
Exit Roll
MiA02016GA
Mnt02013KA
K Mode Solenoid
