6 – 106
Chapter 6 General

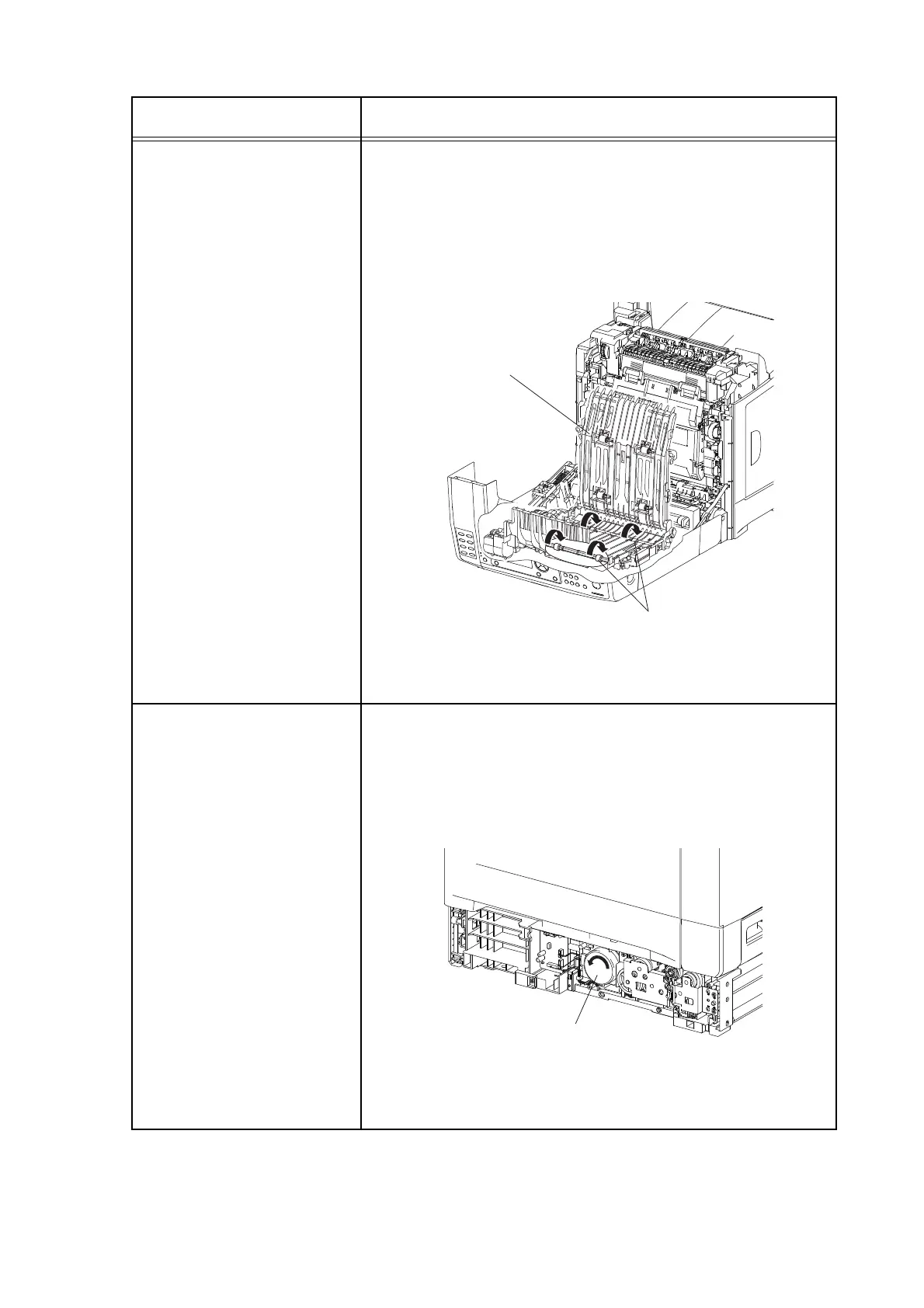

Duplex Motor (FULL1/ FULL2/
FULL3 /HALF)
NOTE: This procedure is for the technical staff.
When performing operation for five minutes or longer with the front cover
open, remove the PHD ASSY, and cover the drum to avoid exposure to light.
1) Power on the printer, and enter the Diag Mode.
2) Open the Front Cover and CHUTE DUP IN.
3) Cheat the Safety Interlock System.
4) Execute the Duplex Motor (FULL1,FULL2,FULL3 or HALF).
5) Check that the Duplex Roller rotates.
6) Press the "STOP" key to stop the test.
7) Remove the cheater.
8) Close the CHUTE DUP IN and Front Cover.
Tray2 Feeder Motor (FULL1/
FULL2/ FULL3 /HALF)
NOTE: This procedure is for the technical staff.
1) Remove the Tray 2.
2) Remove the COVER REAR OPT and COVER SIDE L OPT.
3) Power on the printer, and enter the Diag Mode.
4) Execute the Tray2 Feeder Motor (FULL1,FULL2,FULL3 or
HALF).
5) Check that the Tray 2 Feed Motor rotates.
6) Press the "STOP" key to stop the clutch.
7) Replace the COVER REAR OPT and COVER SIDE L OPT.
8) Replace the Tray 2.
Motor/Clutch/Solenoid Name
(Diag. Code)
Check procedure
MiA02020GA
Duplex Roll
CHUTE DUP IN
MiA02021GA
Tray 2 Feed Motor
To Next Page
