6 – 108
Chapter 6 General
Regi Clutch
NOTE: This procedure is for the technical staff.
When performing operation for five minutes or longer with the front cover
open, remove the PHD ASSY, and cover the drum to avoid exposure to light.
Combination test is as follows:
The Regi Roll rotates when the Main Motor and the Regi Clutch are executed.
1) Power on the printer, and enter the Diag Mode.
2) Open the Front Cover.
3) Cheat the Safety Interlock System.
4) Execute the Main Motor and the Regi Clutch.
5) Check that the Regi Roll rotates.
6) Press the "STOP" key to stop the clutch.
7) Press the "" key to display Main Motor.
8) Press the "STOP" key to stop the motor.
9) Remove the cheater.
10) Close the Front Cover.
Motor/Clutch/Solenoid Name
(Diag. Code)
Check procedure

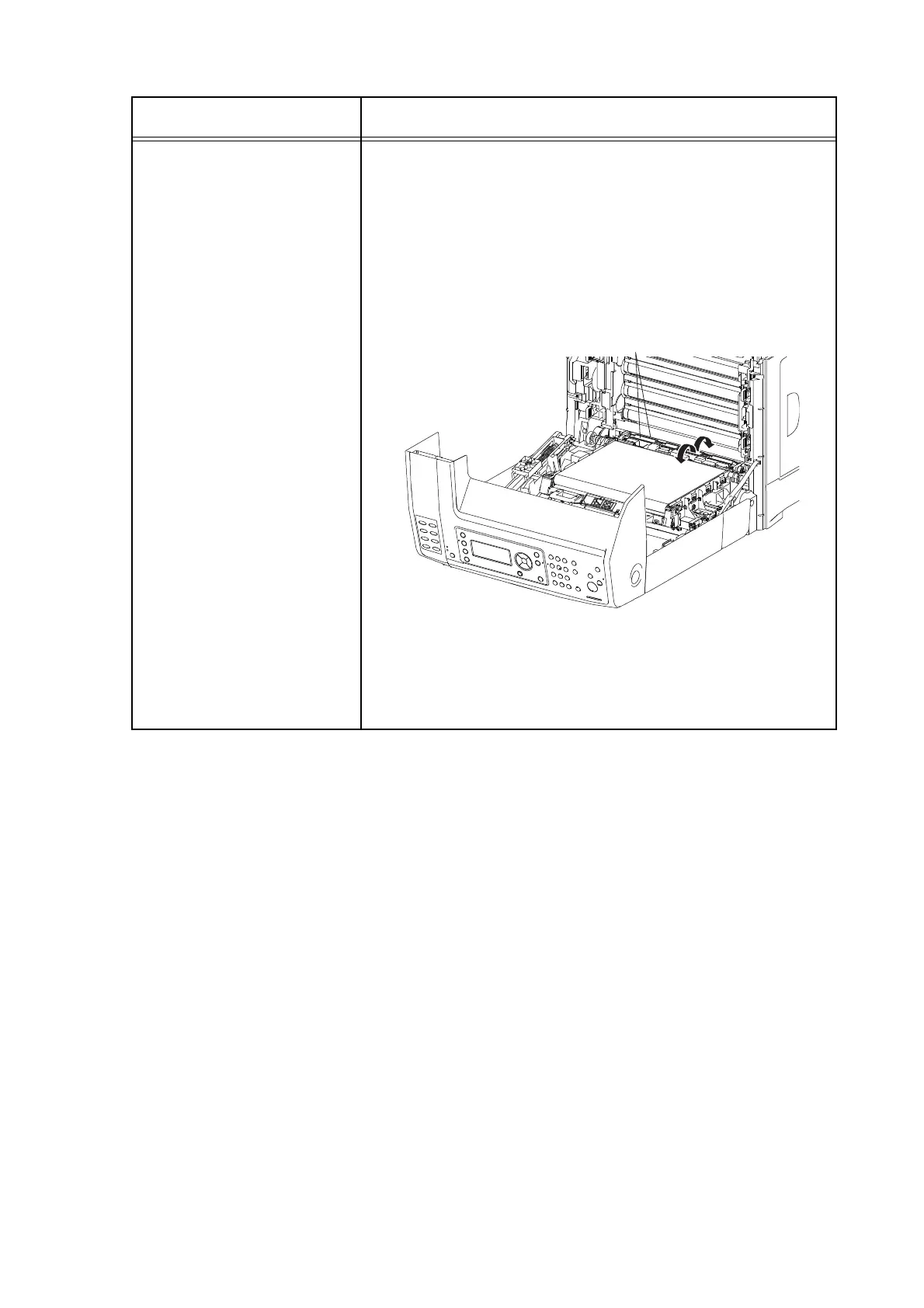

MiA02024GA
Regi Roll
To Next Page
