Fujitsu Siemens Computers SCENIC eB User Manual

System expansions Installing and removing drives
50 A26361-K520-Z300-3-7619

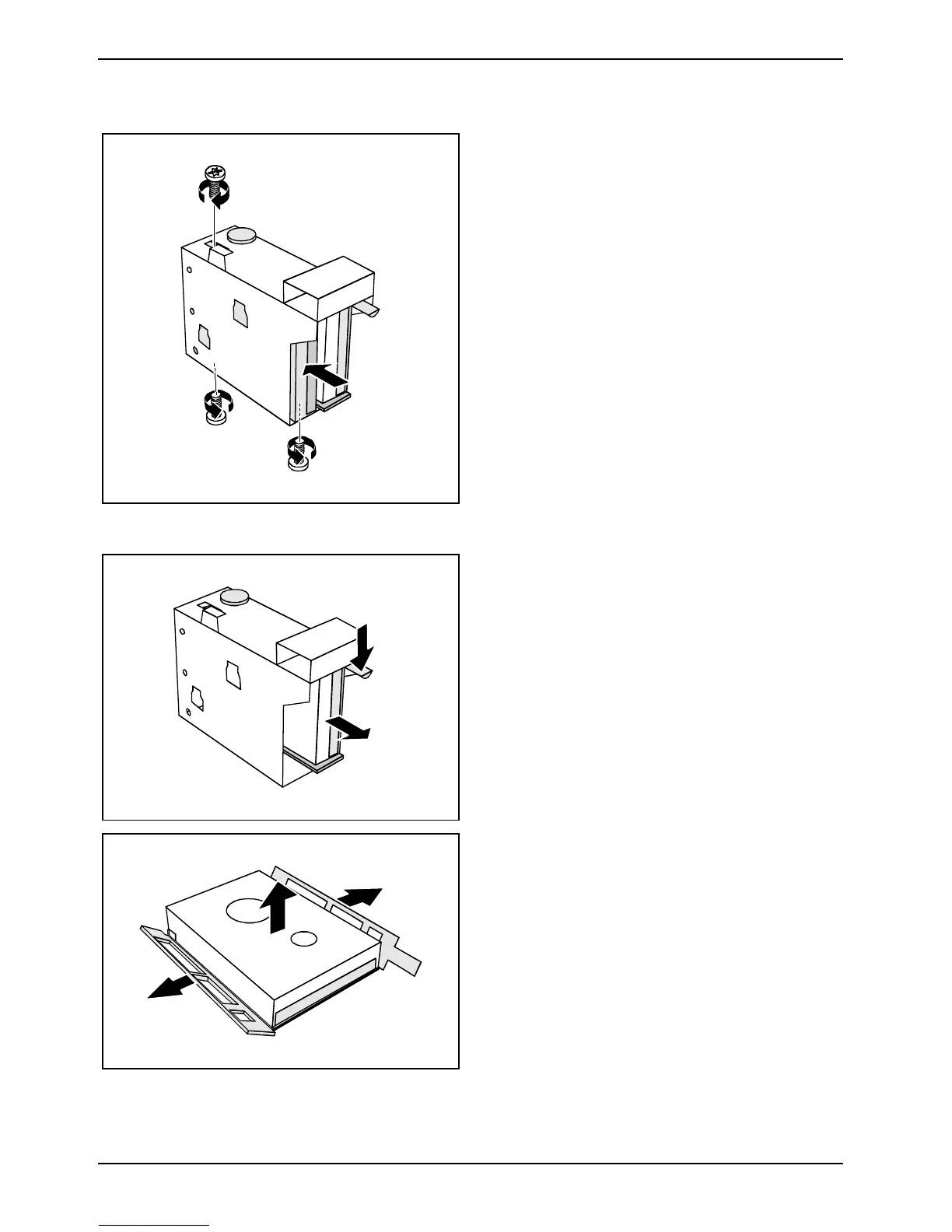

Installing the second hard disk drive
2
2
2
1
Ê Take the new hard disk drive out of its
packaging.
Ê Make the required settings (e.g.
master/slave, stand alone) on the drives.
Ê Slide the hard disk drive into the drive
carrier (1).
Ê Fasten the drive into place with the
screws (2).
Removing the first hard disk drive
1
2
Ê Lightly press on the clip (1).
Ê Take the hard disk drive out of the
carrier (2).
1
1
2
Ê Fold the plastic bracket in the direction of
the arrow (1).
Ê Remove the hard disk drive (2).
