Fujitsu ABHG18LVTB User Manual

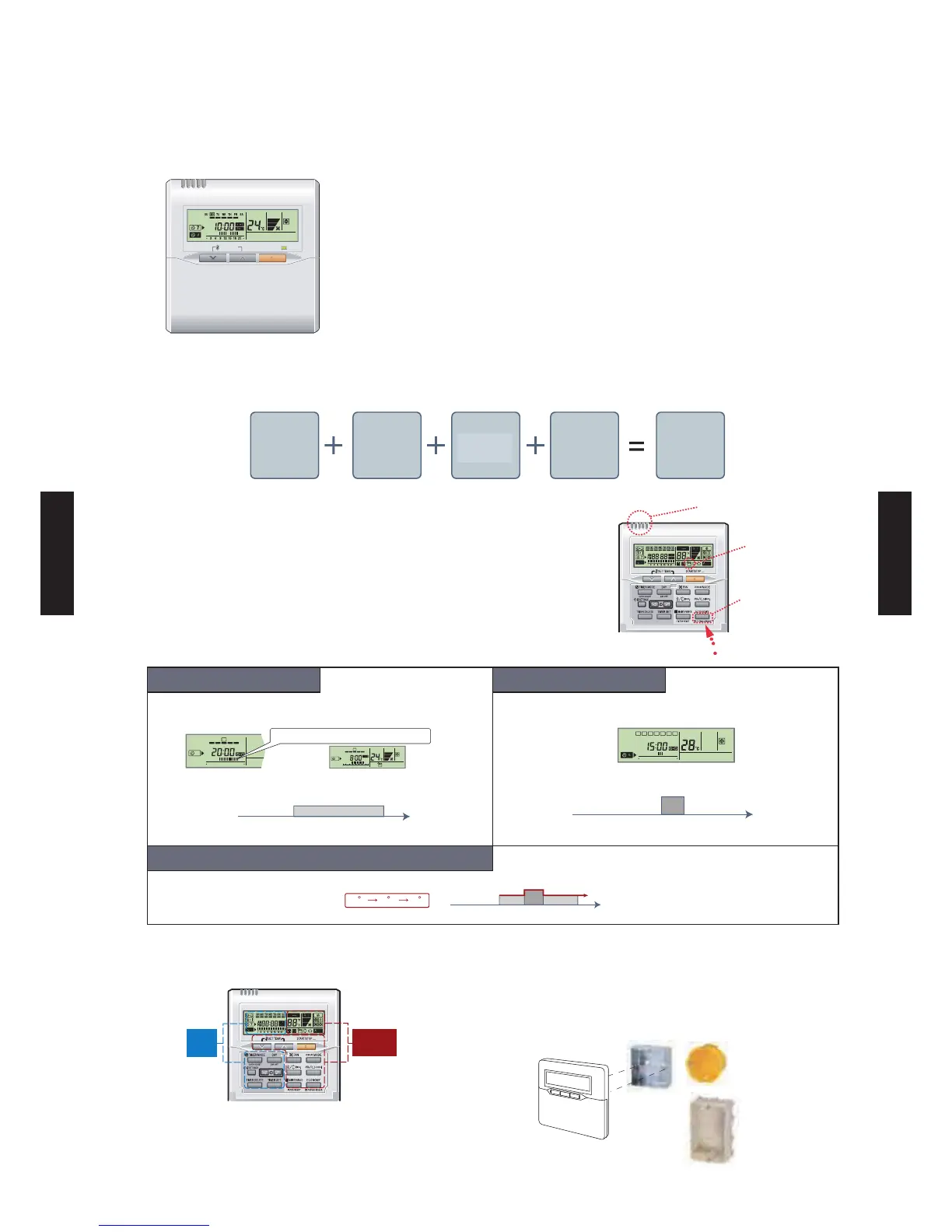

5. CONTROL SYSTEM
MODEL : UTY - RNN
 
M
FEATURES

Various timer setup available (ON / OFF / WEEKLY).
Equipped with weekly timer as standard function. 
(Start / Stop function is twice per day for a week)
When setting up the timer, start / stop and temperature setup can 
be changed.
When a failure occurs, the error code is displayed.
Error history.(Last 16 error codes can be accessed.)
The room temperature is detected and controlled accurately by 
the built-in thermo sensor.
Powerful features and compact size

Accurate and comfortable

Indoor temperature can be detected accurately by the inclusion of
a thermo sensor in the body of the wired controller.
Our system can correspond to various scenes.
This wired remote controller and the optional remote sensor allows
eibiit in sensor ocation and suitabe or a reuireents.
Built-in timers

Easy-to-understand operation

[Variable timer control]
The operation/display sections are zoned according
to time and operation, enabling variable programming
to match application.
Simple installation

Components are compatible with standard switch
boxes. Flat back surface allows equipment to be
installed wherever it is needed.
SET TEMP.
START/STOP
Thermo
sensor
Individual
control
Weekly
timer
Setback
timer
Wired
remote
controller
Sensor part
Thermo sensor
display
Control part for
changing the
thermo sensor
Weekly timer Setback timer
Possible to set ON/OFF time to operate twice each day of the
week.
Possible to set temperature for two time spans and for each
day of the week.
At "Weekly timer" + "Set back timer" setup
0 3 6 9 12 15 18 21 Time
24°C
SU MO TU WE TH FR SA
7
3 12 69 15 18 21
SU MO TU WE TH FR SA
7
3 12 69 15 18 21
Easy-to-understand time bar display
Example : setup screen
(Set to Wednesday: 8:00 to 20:00.)
Screen
after setup
0 3 6 9 12 15 18 21 Time
28°C
SU MO TU WE TH FR SA
3 12 69 15 18 21
Example : setup screen
(Set from Sunday to Saturday: 12:00 to 15:00, 28 °C.)
24°C
0 3 6 9 12 15 18 21 Time
28°C
24 C 28 C 24 C
Timer
area
Operation
area
European
switch box
JIS box
- (05 - 25) -
CONTROL SYSTEM CONTROL SYSTEM

Fujitsu ABHG18LVTB Specifications

General

Type	Air conditioner indoor unit
Timer	Yes
Multi-split	-
Product color	White
Gas hose diameter	12.7 mm
Hose length (max)	25 m
Drain hose diameter	25 mm
Liquid hose diameter	6.35 mm
Refrigerating medium	R410A
Dehumidifying capacity	2 l/h
Air conditioner functions	Cooling, Heating
Cooling capacity in watts (max)	5900 W
Cooling capacity in watts (min)	900 W
Heating capacity in watts (max)	7500 W
Cooling capacity in watts (nominal)	5200 W
Cooling energy efficiency (EER, W/W)	3.21
Heating energy efficiency (COP, W/W)	3.61
Operating temperature (cooling) (T-T)	-15 - 46 °C
Operating temperature (heating) (T-T)	-15 - 24 °C
Seasonal efficiency rating (cooling) (SEER)	6.1
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	6000 W
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4
AC input voltage	230 V
Current (cooling)	9 A
Current (heating)	12.5 A
AC input frequency	50 Hz
Design load (cooling)	5.2 kW
Energy efficiency class (cooling)	A++
Annual energy consumption (cooling)	298 kWh
Hourly energy consumption (cooling)	- kWh
Design load (heating) (Warmer heating season)	- kW
Energy efficiency class (heating) (Average heating season)	A+
Annual energy consumption (heating) (Average heating season)	1819 kWh
Indoor unit depth	655 mm
Indoor unit width	990 mm
Indoor unit height	199 mm
Indoor unit weight	27000 g
Indoor units quantity	1
Indoor unit noise level (high speed)	- dB
