Fujitsu ABYF18LAT - Page 22

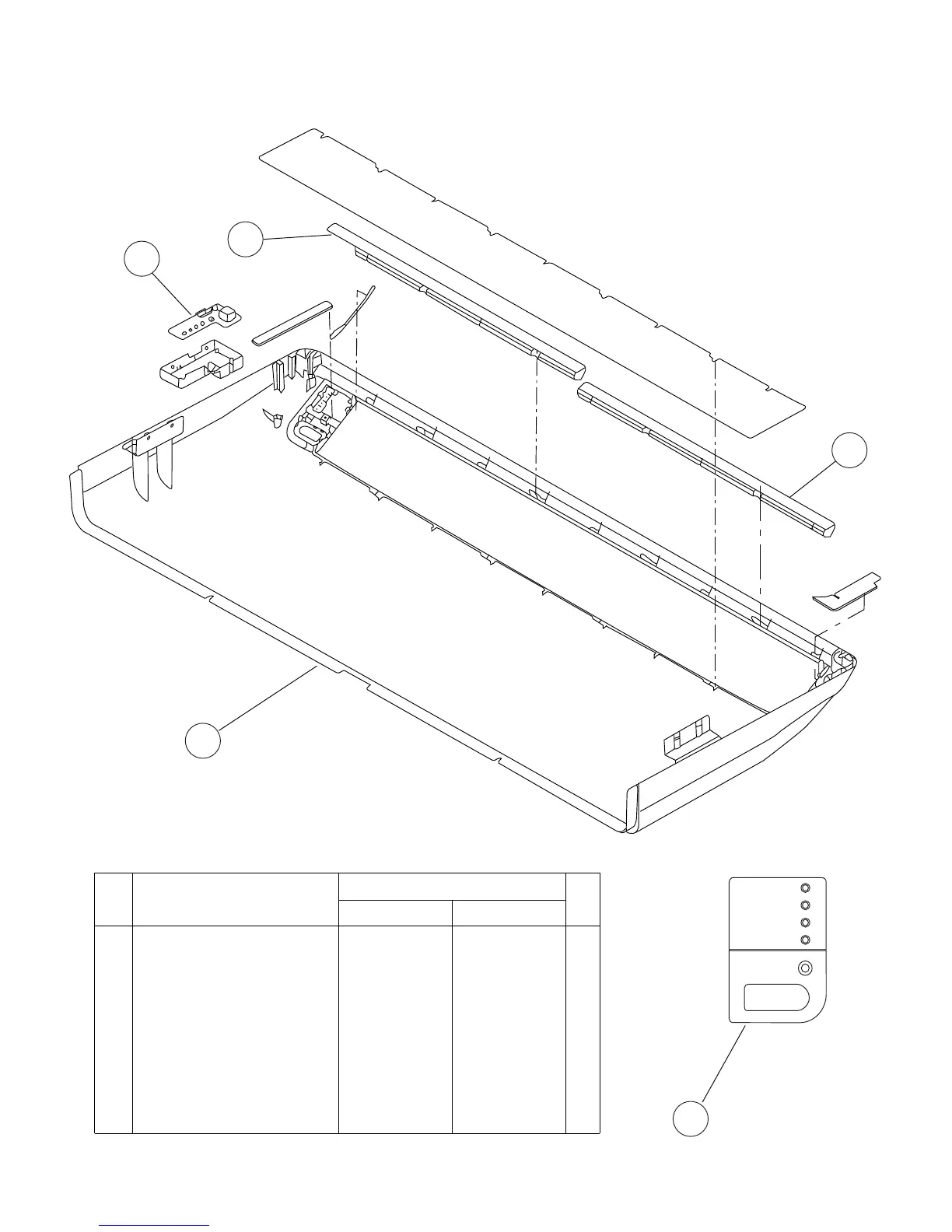

INDOOR UNIT
Panel assy
2009.07.13
21
11
12
15
14
13
13
Indicator PCB Assy 9705798052
14
Insulation (Panel) A 9358574003
15
Insulation (Panel) B 9358914007
11
Panel Assy (with side cover R) 9359076186
12
Side Cover R Assy 9359069041
--
Panel
Insulation F
PCB holder
Insulation D
Insulation E
Insulation C
9358531150
9705798069
9358574003
9358914007
9359076247
9359069072
9358531167
Ref. Description
Part number
LAT LBT
