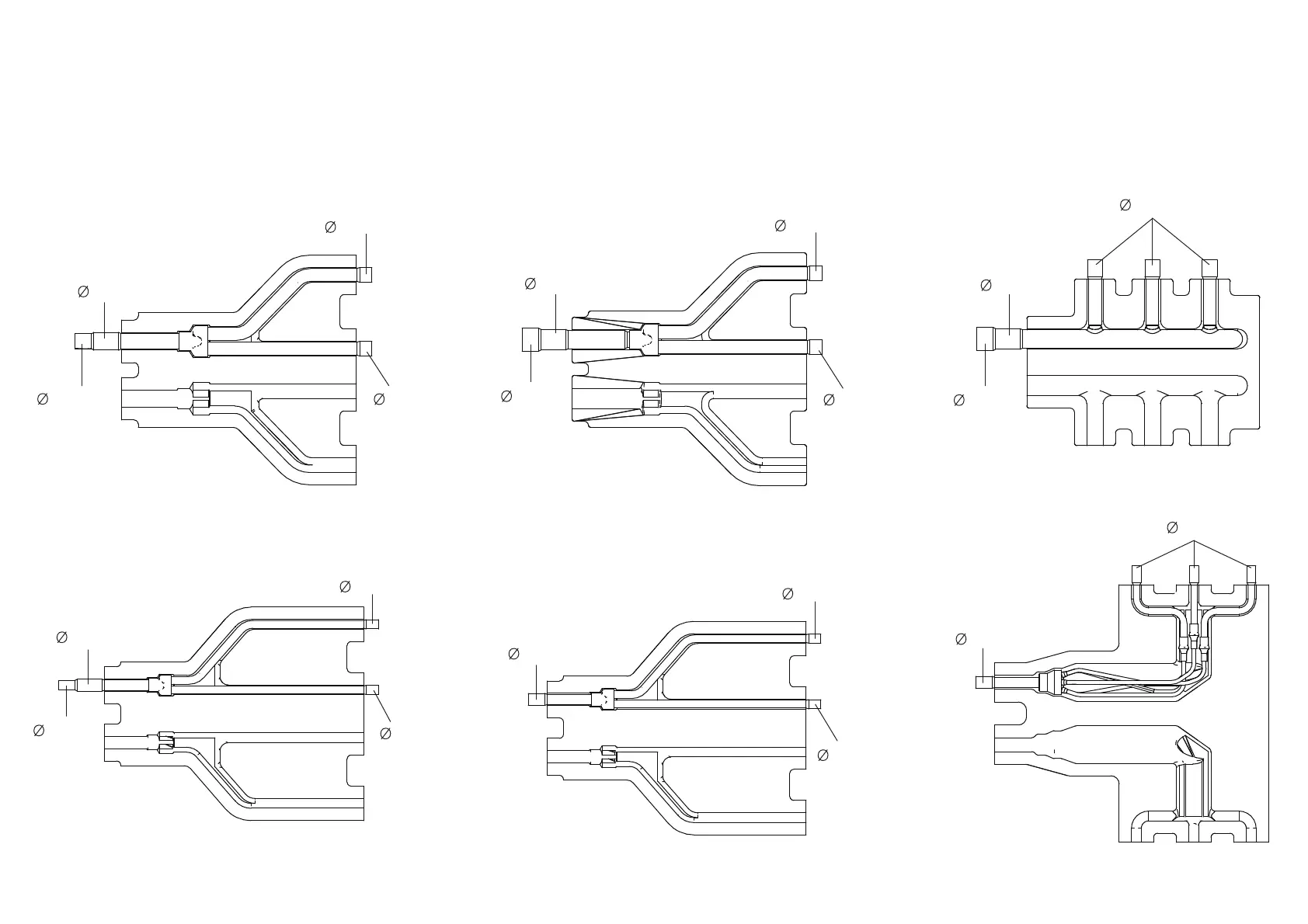

BRANCH PIPE
(unit : mm)
UTP-SX272A UTP-SX372A
Gas pipe
Liquid pipe
Gas pipe
Liquid pipe
25.40
9.52
12.70
15.88
9.52
9.52
12.70
22.22
25.40
22.22
15.88
15.88
UTP-SX254A
Gas pipe
Liquid pipe
15.88
9.52
9.52
12.70
9.52
19.05
15.88
15.88
