Fujitsu AO G24KATA Series User Manual

¢
Installation (Remote control main unit)

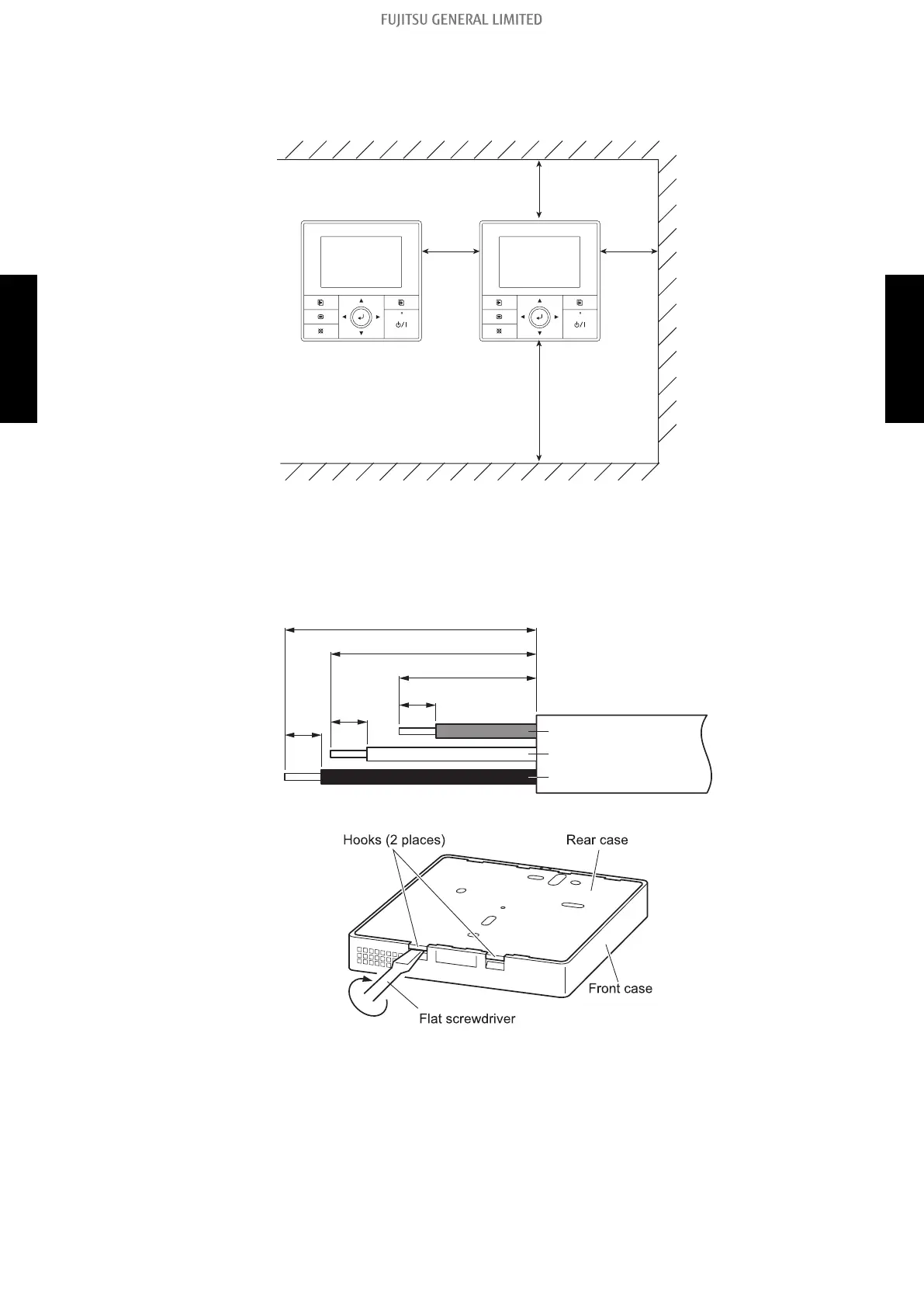

Installation space:
220 or
more*
Unit : mm
30
or more
30
or more
30
or more
NOTE: Secure enough space where a flat-blade screwdriver to remove the case can be inserted.
Installation procedures:
1. Process the remote controller cable.
8
8
8
30
45
55
Unit : mm
1. 12V (Red)
2. Signal (White)
3. COM (Black)
2. Insert the flat-blade screwdriver and twist it slightly to separate the front case and rear case.
- 150 -
7-4. Wired remote controller (UTY-RVNYM) 7. Remote controller (Optional part)
