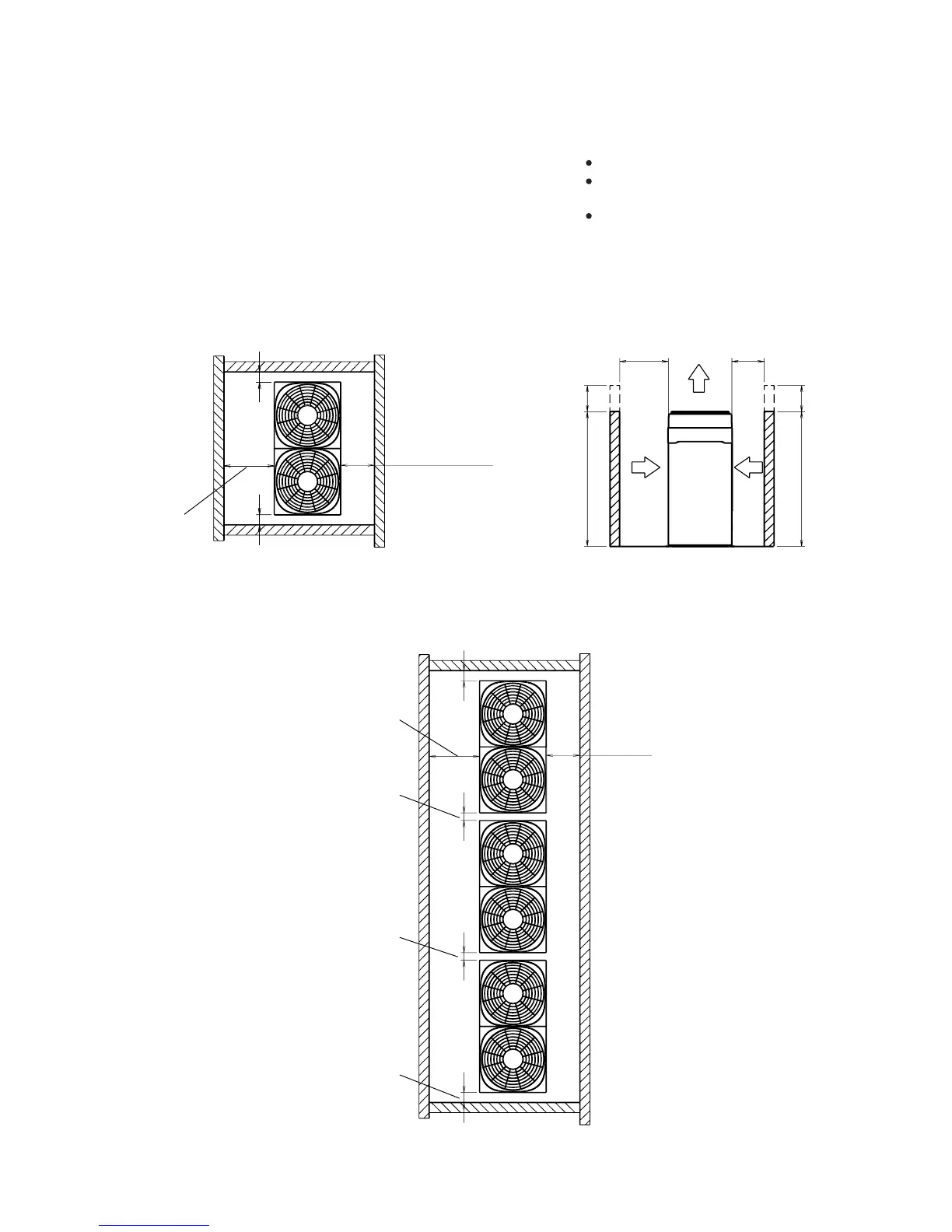

SERVICE SPACE FOR OUTDOOR UNIT
Top air outlet
Back
intake port
H (1200mm) h H (1200mm) h
Front
intake port
L2L1
10mm or more
10mm or more
200mm or more
500mm
or more
FRONT
Height of side wall is free.
Height (H) of front wall is
less than 1,200mm.
When total height of outdoor
unit is lower than front wall,
add dimension h to service space
for dimensions L1 and L2.
10mm or more
10mm or more
10mm or more
10mm or more
200mm
or more
500mm or more
FRONT
