NOT USED
REMOTE CONTROL UNIT
CUSTOM CODE SWITCHING (R1)
REMOTE CONTROL UNIT
CUSTOM CODE SWITCHING (R2)
RELA
Y PCB
EZ-0950DHSE-K
ROOM TEMPERA
TURE CORRECTION
( HEATING OPERA
TION )
ROOM TEMPERA
TURE CORRECTION
( HEATING OPERA
TION )
ZONE CONTROL SWITCHING
PIPE TEMPERA
TURE THERMISTOR
ROOM TEMPERA
TURE THERMISTOR
POWER SUPPL
Y PCB
FAN SWITCHING
FAN SWITCHING
ROOM TEMPERA
TURE CORRECTION
( COOLING OPERATION )
CONTROLLER PCB ASSEMBL
Y ( MAIN PCB )
EZ-002PHSE-C
Models :
ARY30RLC
ARG30RLC
ART30RLC
20
2003.05.08
20
22
Table of Contents
Table of Contents
1
Duct Type
1
Specifications
2
Refrigerant Charge (Full Charge Amount)
2
Outline and Dimensions
4

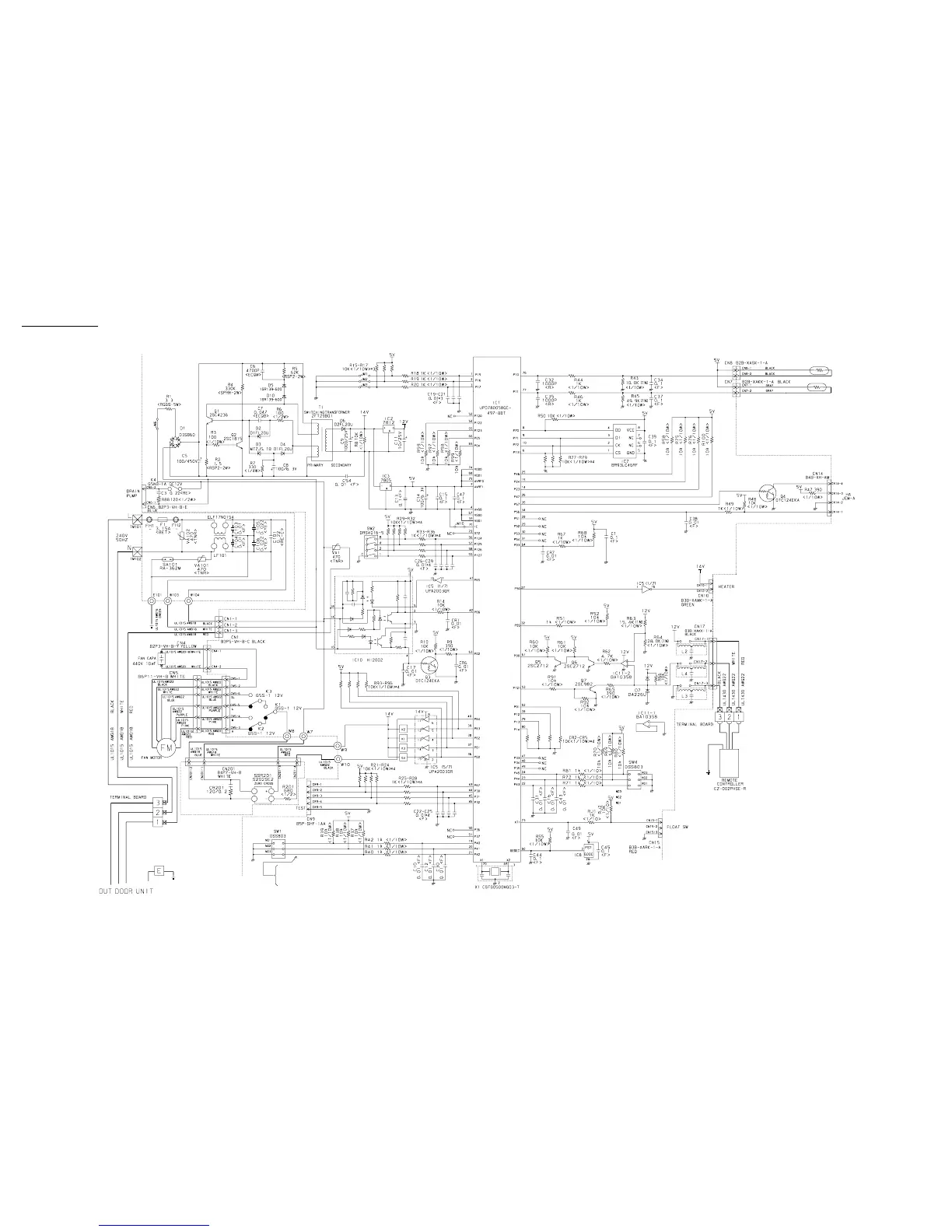

Circuit Diagram
6
Soft Starter
8
Control Board
10
Printed Circuit Board
15
Refrigerant System Diagram
16
Indoor Printed Circuit Board Circuit Diagram
19
Controller Pcb Assembly ( Main Pcb )
20
Outdoor Printed Circuit Board Circuit Diagram
22
Indoor Unit
27
Outdoor Unit
27
Error Contents
27
Disassembly Illustration
28
Parts List
55
Standard Accessories
62
Indoor Unit Accessories
62
