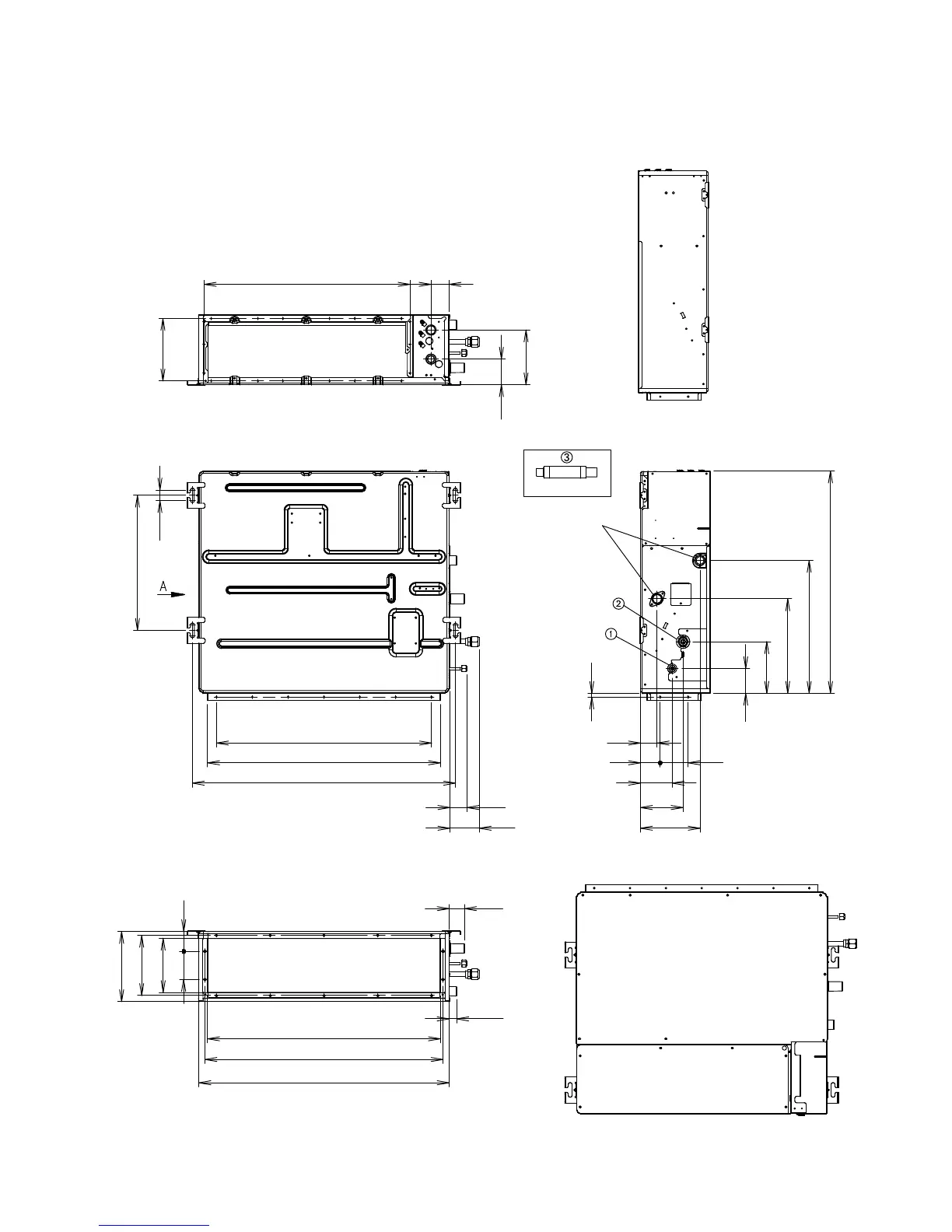

INDOOR UNIT
SLIM DUCT
ARYG07LLTA
ARYG09LLTA
ARYG12LLTA
(unit : mm)
Rear view
View A
Top view
Side view
Front view
Bottom view
(Drain hose)
Drain port
51
574
174
71
152
100 x 6 = 600
82
48
650
734
30
377
167
119
89
78
55
47
10
620
371
264
144
69
650
664
700
43
20
198
168
151
78
55
Drain hose I.D. 3/4 in. , O.D. 1-1/16 in.
