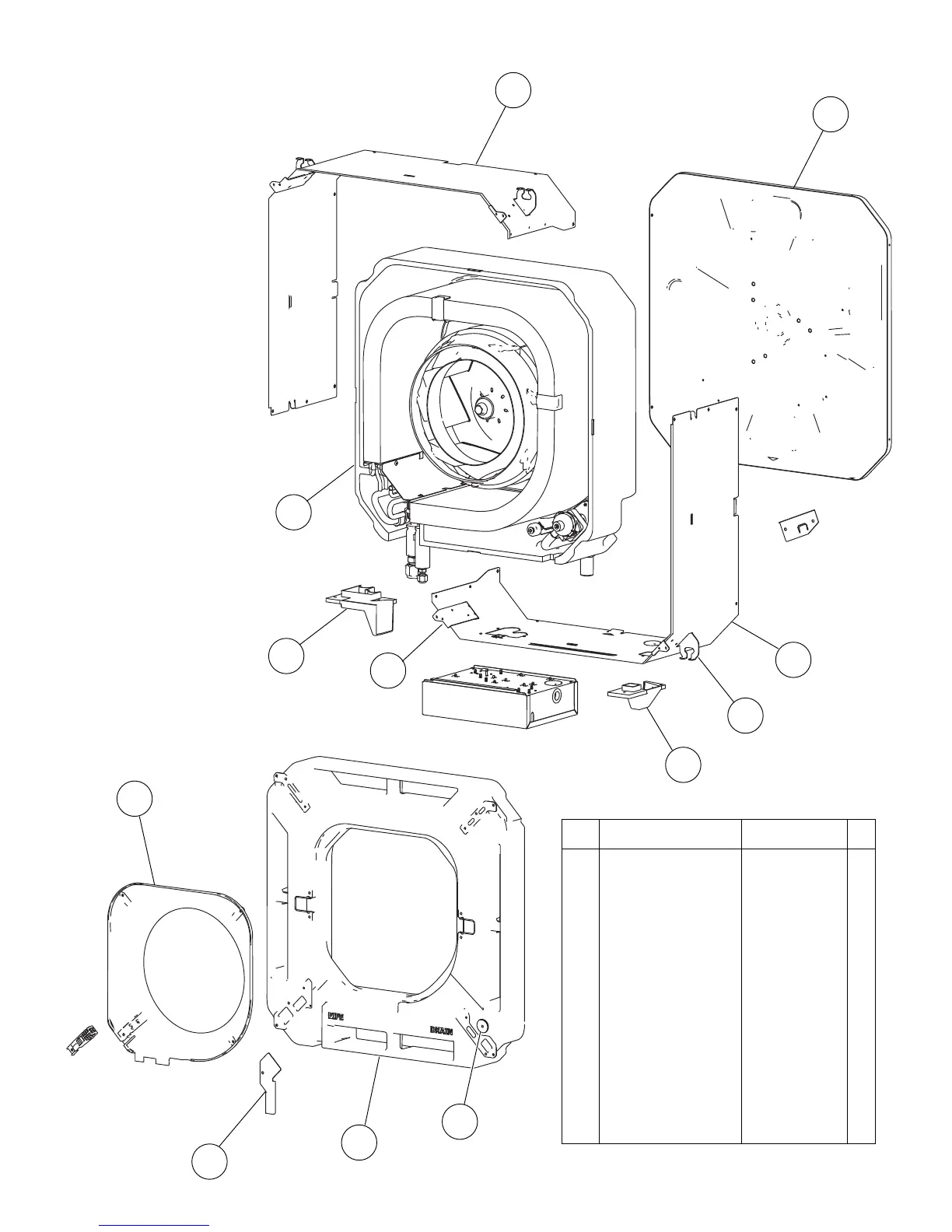

INDOOR UNIT
COMPACT CASSETTE
AUYG07LVLA
AUYG09LVLA
AUYG12LVLA
2 Cabinet A Assy 9375492014
1 Top Plate Assy 9375490010
3 Cabinet B 9375494018
10 Wire Holder 9375478018
9 Bell Mouse 9375503017
11 Drain Pan Sub Assy 9377765024
7 Wire Cover 9375516017
8 Pipe Cover 9375515010
4 Hook R 9375504014
5 Hook L 9375505011
6 Insulation Box Assy 9377764027
12 Drain Cap 9375502010
Ref. Description Part number
