INDOOR UNIT
COMPACT WALL MOUNTED
ASYG07LJCA
ASYG09LJCA
ASYG12LJCA
(unit : mm)
Drain hose
I.D. 17/32 in. (13.8 mm), O.D. 5/8 to 21/32 in. (15.8 to 16.7 mm)
Drain hose : L=20-15/32 in. (520mm)
205 : Installed state
*1: Vertical flap is downward
203
140 *1
10 *1
145 *1
790
280
94
52
78
ø65
for pipe inlet
ø65
for pipe inlet

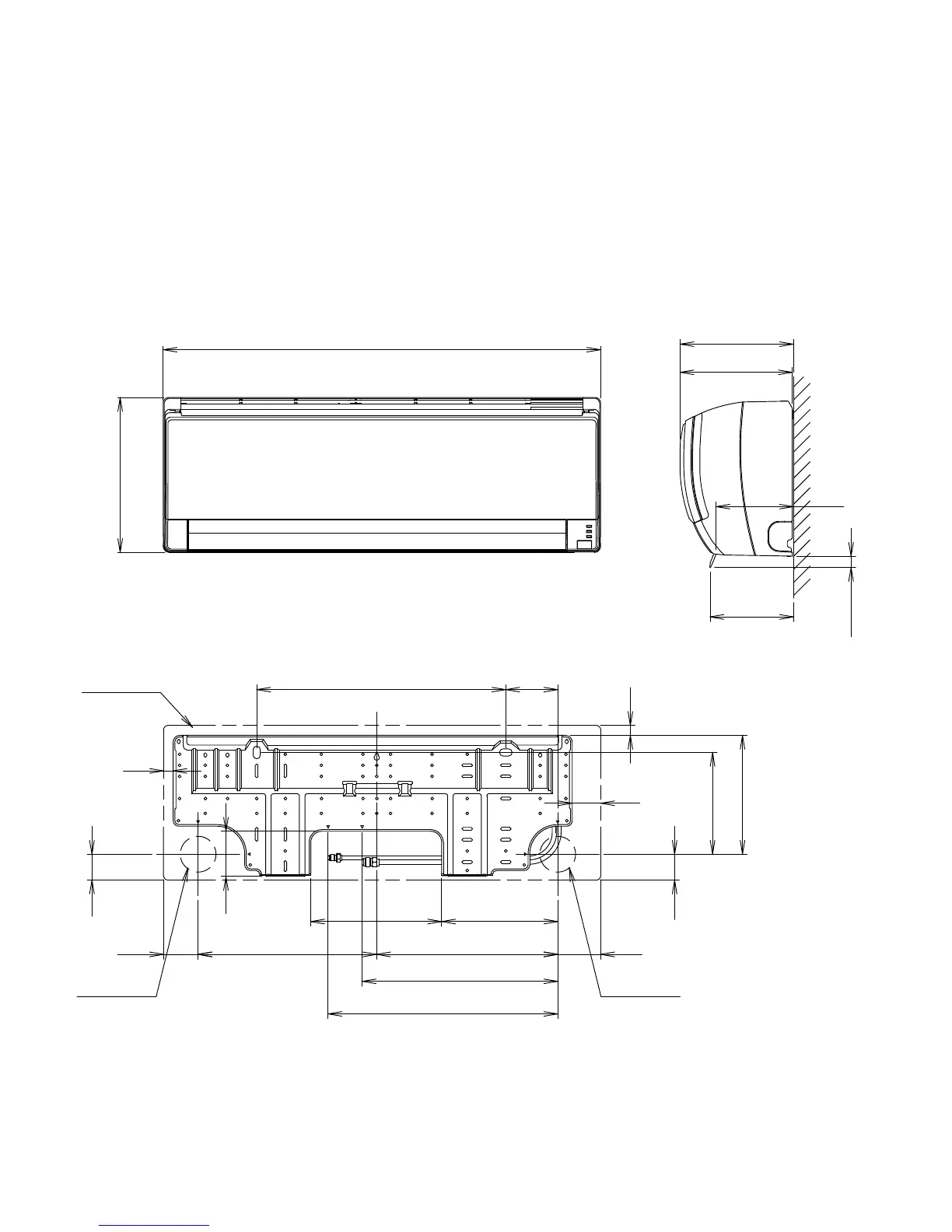

Outline of unit
323
353 : Gas pipe
415 : Liquid pipe
327
237
450
209
62
18
47
47
184
215
18
82
2011.02.07 8

Fujitsu AOYG14LAC2 Specifications

General

Brand	Fujitsu
Model	AOYG14LAC2
Category	Inverter
Language	English
