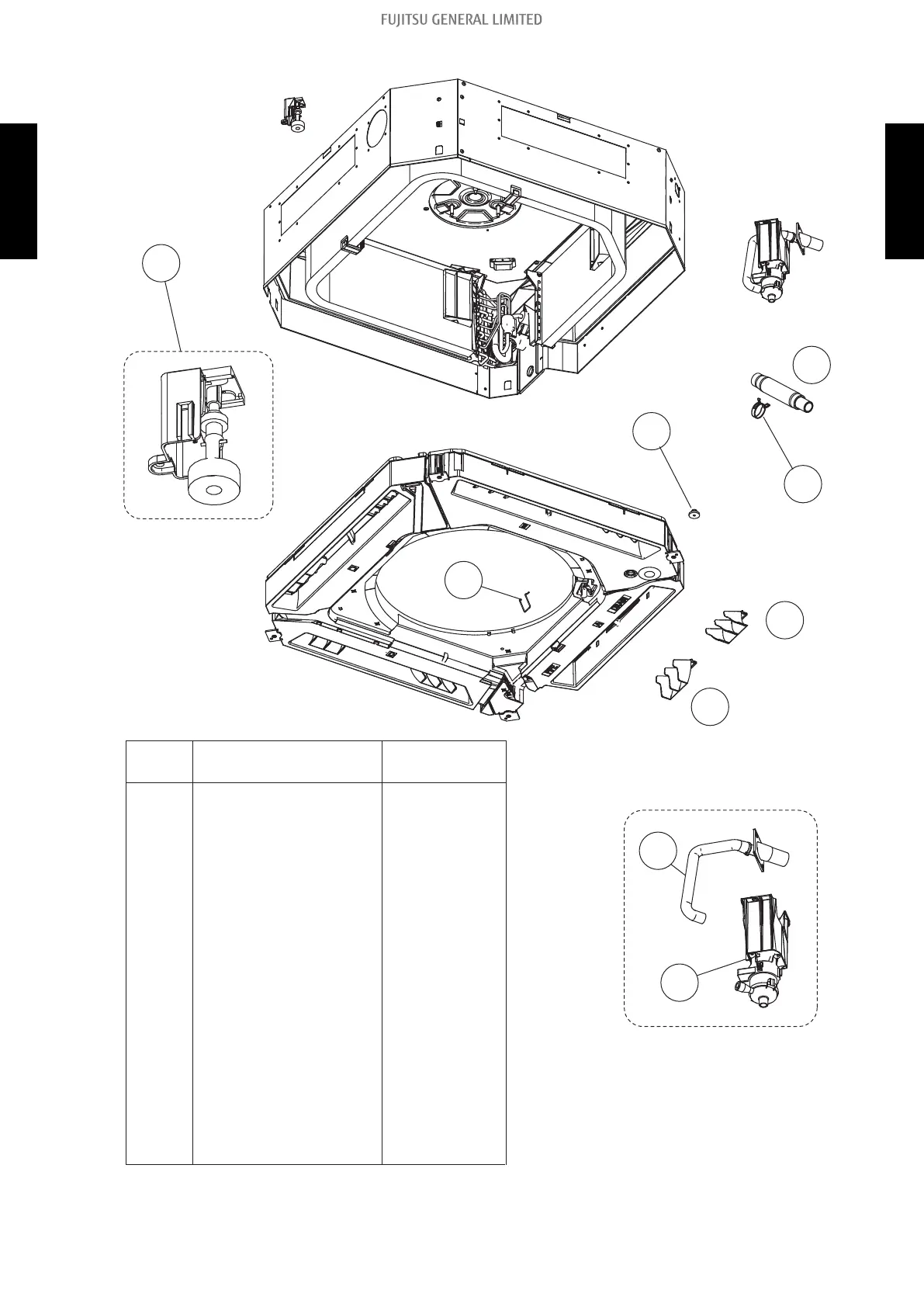

¢ Drain pump
31 Drain Cap 9375502010
33 Vane L
34 Vane R
39 Float Switch Sub Assy
38 Hose Band
36 Drain Port Sub Assy
9381745012
9381744008
32 Panel Hook 9375671013
37 Drain Hose 9379665001
35 Drain Pump Sub Assy 9381793006
9381794003
9379757010
9381788002
Ref. Description
Part number
35
36
31
39
34
32
33
37
38
3-1. Models: AUXG24KRLB, AUXG30KRLB, AUXG36KRLB, AUXG45KRLB, and
AUXG54KRLB
- (02-8) - 3. Indoor unit parts list
