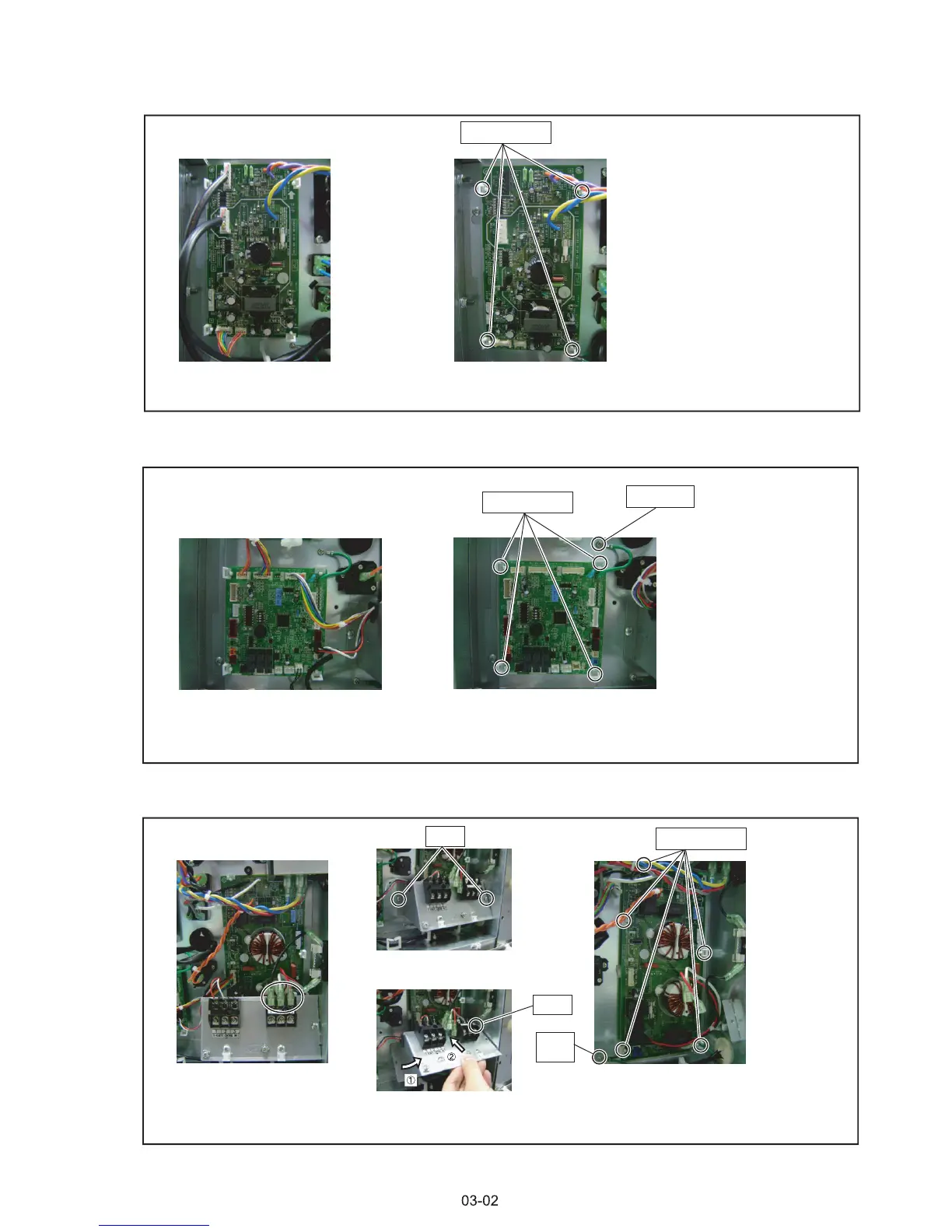

3-1. POWER SUPPLY PCB removal
1) Remove the connectors and each wires.
2) Remove the locking spacers(4 places).
locking spacers
3-2. CONTROLLER PCB removal
1) Remove the connectors and each wires.
2) Remove the earth screw
and locking spacers(4 places).
locking spacers
3-3. FILTER PCB removal
1) Remove the connectors,
each wires and
terminal wire (black,white,red).
3) Remove the terminal bracket.
earth screw
2) Remove the mounting screws
(2 places).
earth
screw
4) Remove the earth screw
and locking spacers(5 places).
locking spacers
Hook
screw
