• Outdoor temperature zone
Heat pump only zone


(Heat pump)
Combination zone


(Heat pump + Heater)
Heat pump prohibition zone


(Heater)
B: 42.8°F (6°C)*
A: -4°F (-20°C)*
B + 3.6°F (2°C): 46.4°F (8°C)
A + 3.6°F ( 2°C): -0.4°F (-18°C)
Outdoor temp.
*: Adjustable by function setting 66 and 67

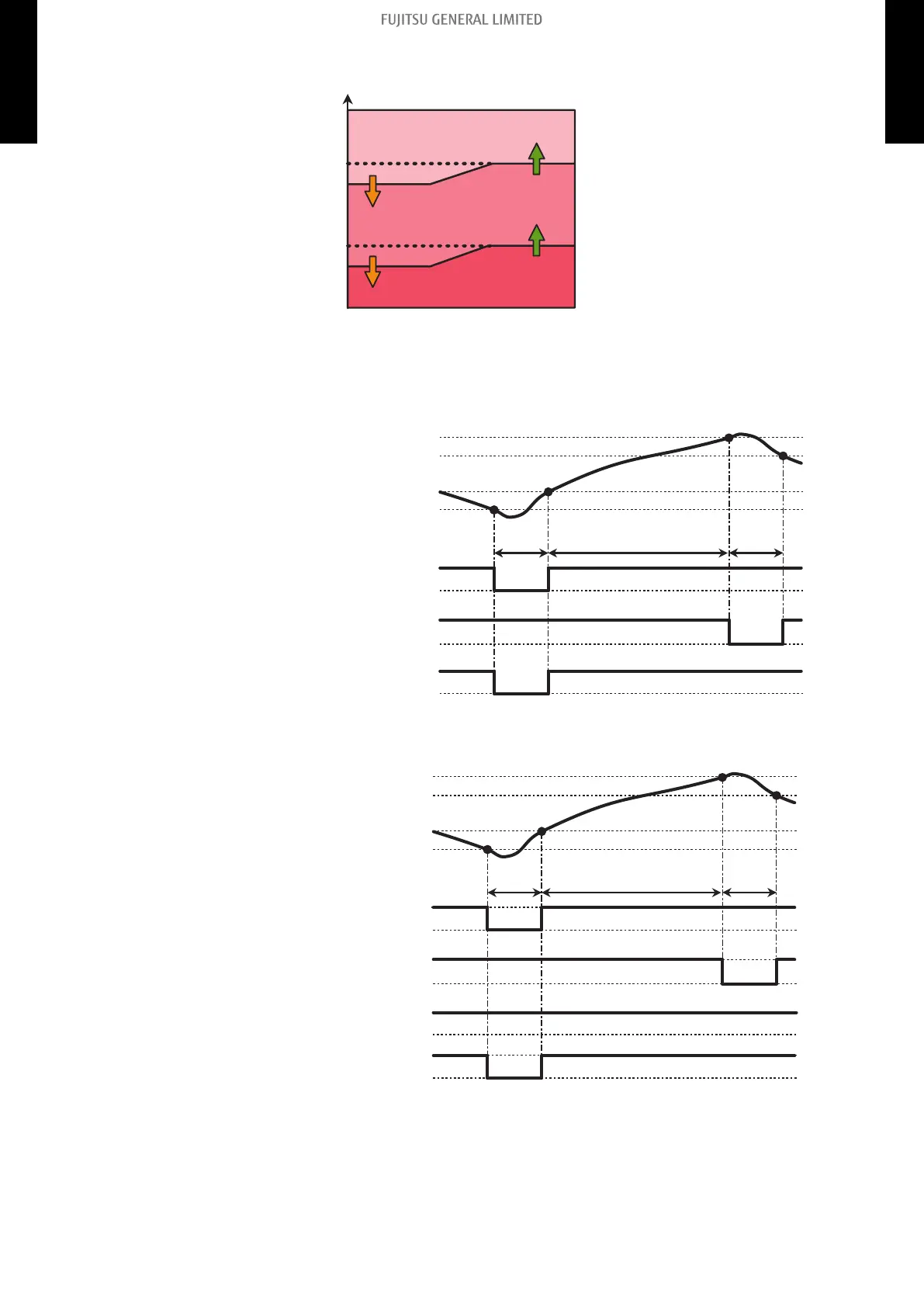

• Operation status
– Compact cassette type
On
On
12 V
Off
Off
0 V
Heater
Fan
Comp. On/Off
Outdoor temperature
(Factory setting)
Outdoor temperature zone *
Heat pump
prohibition
zone
Heat pump
only zone
Combination zone
* The outdoor temperature zone transition from one to another will stay in that zone for minimum of 30 min.
46.4°F (8°C)
42.8°F (6°C)
-0.4°F (-18°C)
-4°F (-20°C)
– Slim duct type
On
On
12 V
Off
Off
0 V
Heater
Comp. On/Off
Outdoor temperature
(Factory setting)
Outdoor temperature zone*
Heat pump
prohibition
zone
Heat pump
only zone
Combination zone
*: The outdoor temperature zone transition from one to another will stay in that zone for minimum of 30 min.
46.4°F (8°C)
42.8°F (6°C)
-0.4°F (-18°C)
-4°F (-20°C)
On
Off
Fan
DIP-SW101-3: On
DIP-SW101-3: Off
NOTE:
In following operations, compressor will be on in heat pump prohibition zone.
• Other than heating
• Test run
- 107 -
11-4. Details of function 11. External input and output (Compact cassette type and slim duct type indoor unit)
MULTI-SPLIT TYPE 5-unit type
MULTI-SPLIT TYPE 5-unit type
