Fujitsu ASY24LBAJ User Manual

INDOOR UNIT

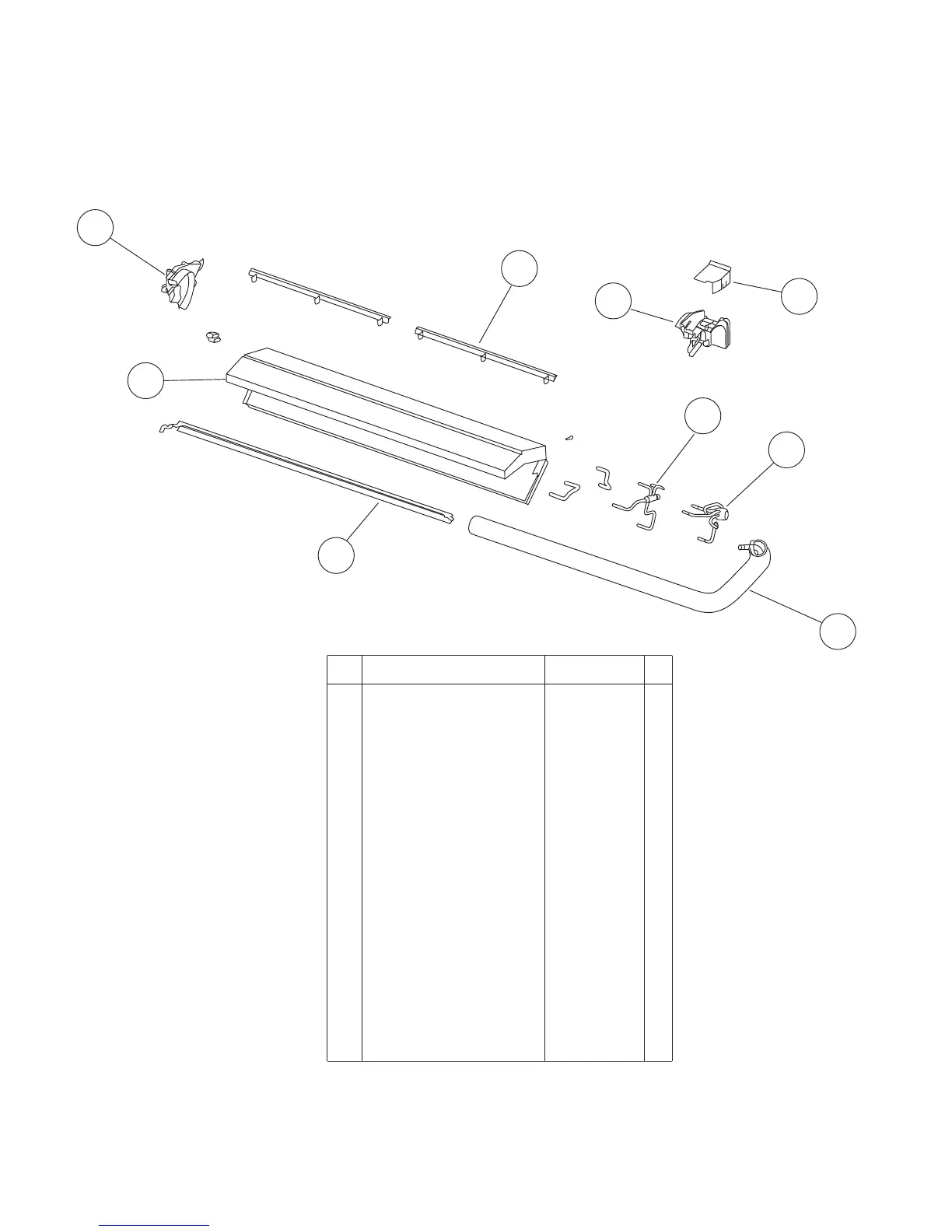

Evaporator
2009.06.11 15
29
26
24
25
27
21
28
22
23
Ref. Description
28 Water Seal Plate 9369684005
25 Kit (Evaporator Bracket) 9371166018
21 Evaporator A Assy (24) 9373721017
21 Evaporator Assy (18) 9372102015
24 Joint Pipe Assy (18) 9372461013
22 Coupling Pipe Assy (18) 9369241000
-- Evaporator B Assy (24) 9369373008
29 Water Plate (24) 9368569006
26 Kit (Evaporator Support R) 9371167015
27 Kit (Evaporator Support L) 9371165011
23 Distributor Assy (18) 9371178004
24 Joint Pipe Assy (24) 9373723011
22 Coupling Pipe Assy (24) 9373250012
23 Distributor Assy (24) 9373249016
